ASSEMBLY INSTRUCTIONS | CARMEL OUTDOOR 54" RD DINING TABLE
PARTS CHECKLIST
1 Table Top (1 pc)
2 Legs (4 pcs)
X-Base
3
Stretcher (1 pc)

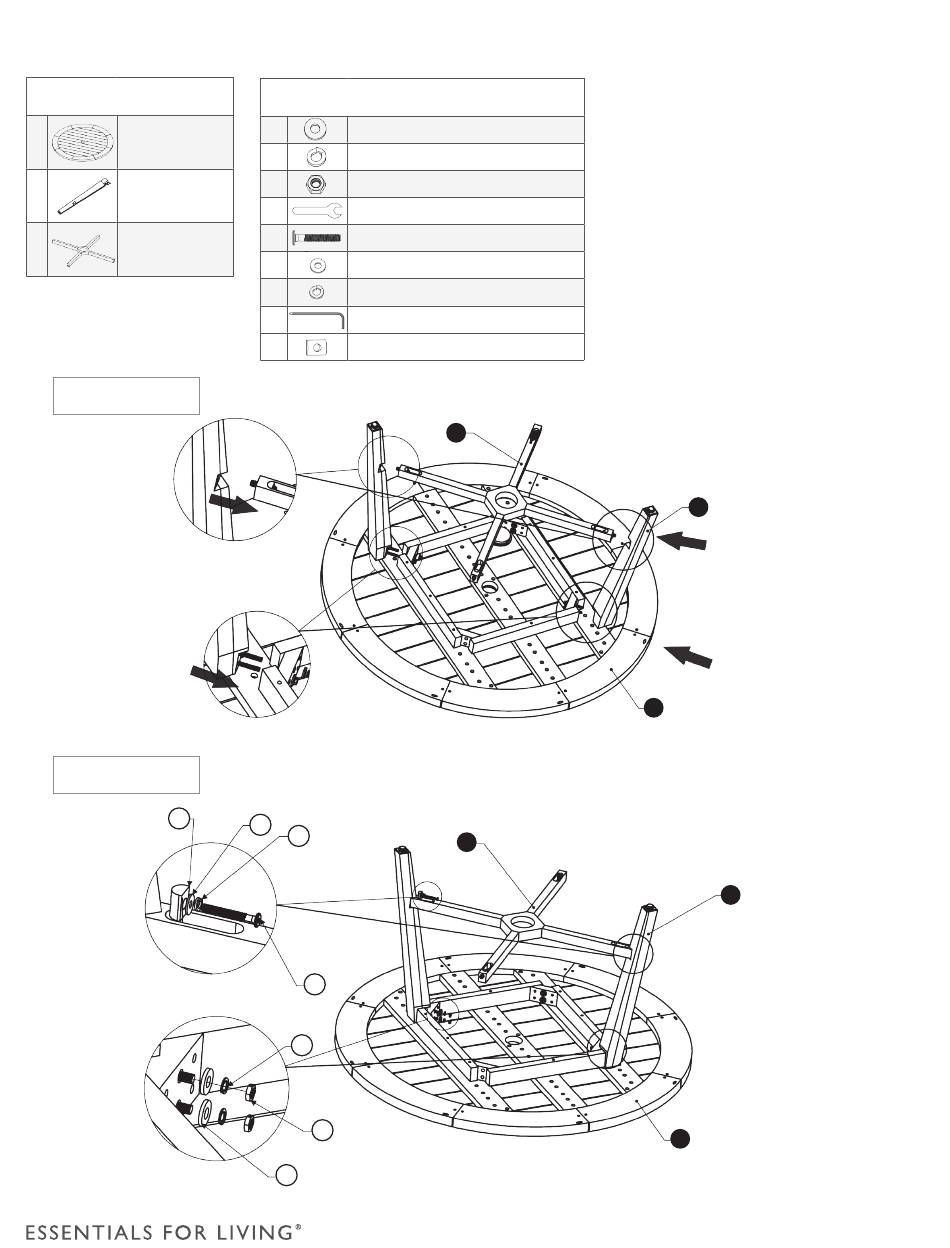

Step 1
Step 2
I
HARDWARE CHECKLIST
A Flat Washer M8x23mm (8pcs)
B Spring Washer M8xø14mm (8pcs)
C Nut M8 SS (8pcs)
D Wrench 13 (1pc)
E JCBC Bolt M6ø50mm (4pcs)
F Flat Washer M6xø18mm (4pcs)
G Spring Washer M6xø11mm (4pcs)
H Hex Key L4 Ballpoint (1pc)
I Halfmoon Teak (4pcs)
F
G
E
B
C
A
3
3
19511 Pauling, Foothill Ranch, CA 92610 USA | www.EssentialsForLiving.com
Please do not discard any of the packaging until
you have checked all the parts and hardware
have been supplied. Follow
closely as deviation from them may void your
warranty and present a possible safety risk. It
is recommended that assembly is done on a
soft surface like carpet to avoid any damage.
Though not necessary, it is advised that
assembly be completed by a team of at least
two people.
2
Attach two legs on
opposite corners
1
2
Do not tighten the
bolts until all have
been connected
1
instructions
