User Manual

M572

Ultra HD 5G

Table of Contents

Need help?

Do you have a question about the M572 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sarmert M572

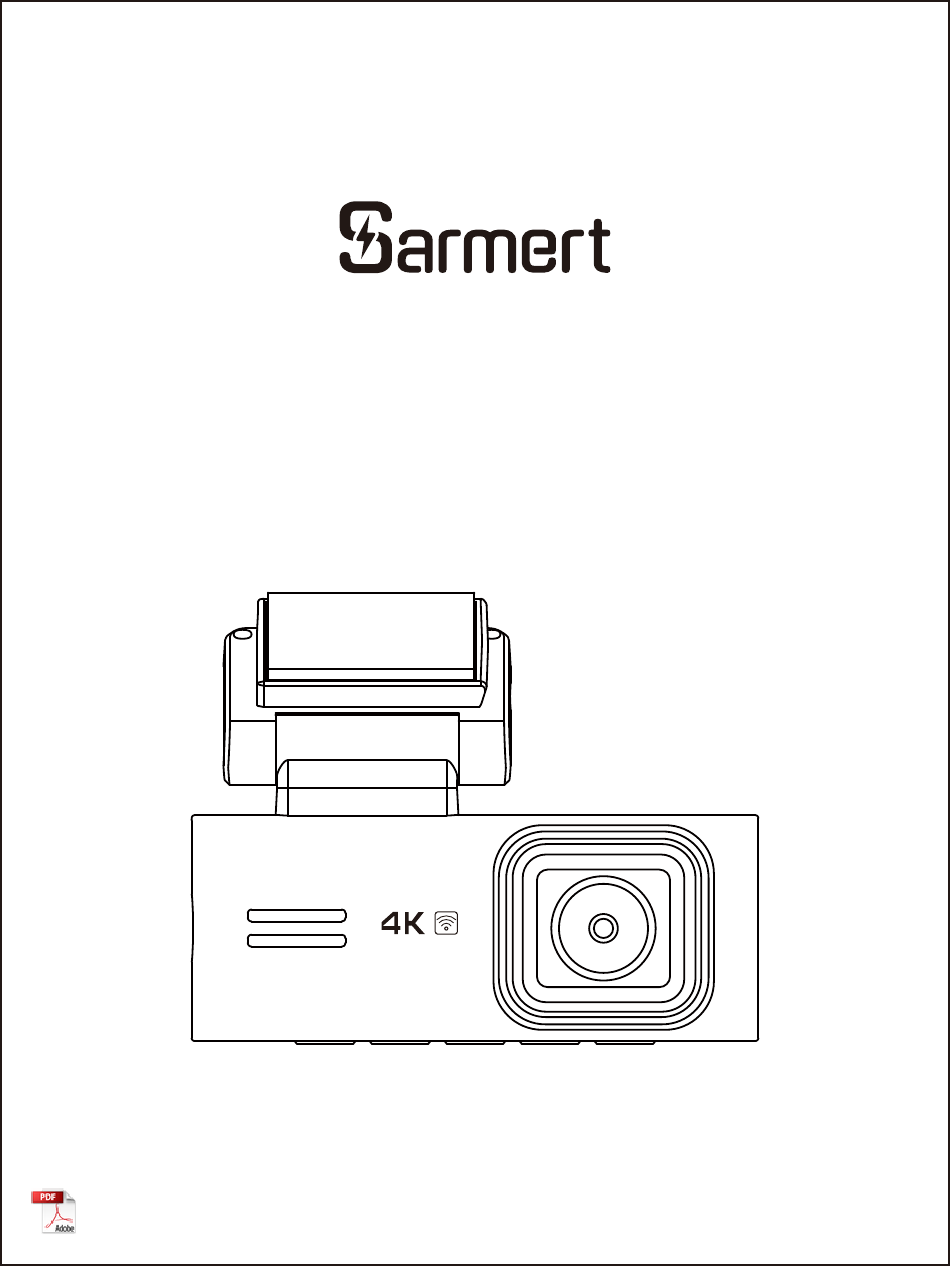

Page 1 User Manual M572 Ultra HD 5G...
Page 2: Table Of Contents
PRODUCT DIAGRAM ..............06 BUTTONS AND FUNCTIONS ............07 INSTALLATION ................08-09 USING SARMERT DASH CAM ........... 10-11 PLAYING VIDEO FILES USING SARMERT DASH CAM ....12 PLAYING VIDEO FILES USING YOUR SMARTPHONE ..... 13-18 MENU ..................19-23 FAQ ..................... 24-25...
Page 3: Customer Service
CUSTOMER SERVICE Defective or damaged item? Inaccurate description? Missing parts or accessories? Performance or quality not adequate? Wrong item was sent? support@sarmertvip.com Response in just 12 hours Contact us before returning the item. We will help you resolve any issue asap. - 01 -...
Page 4: Introduction
INTRODUCTION Thank you for purchasing this SARMERT dashcam. This instruction manual contains information on how to operate your dash cam. Before using your dashcam, we recommend that you read through this manual to ensure correct usage. To improve the performance of the product, the contents of this manual are subject to change without prior notice.
Page 5: In The Box
Check the box for each of the following items before installing the dash cam. Front Camera ×1 Ultra HD 5G Rear Camera Type-C USB Power (6m/20ft) ×1 Cable (3.5m/12ft) ×1 User Manual M572 Ultra HD 5G Electrostatic Cable Clips ×5 User Manual ×1 Films ×4 Pry Tool ×1 Note: To improve the performance of the product, the contents of this manual are subject to change without prior notice.
Page 6: Specification
SPECIFICATION Model Name M572 Screen Size 3.18 Inch Aperture F=1.8 Color Cool Gery English/Deutsch/Français/⽇本語 Language Español/Русскии/简体中⽂/繁體中⽂ Video Format Photo Format Video Code H.264(Default)/H.265 Front Cam: 4K 3840*2160 2K 2560*1440 Video 1080P 1920*1080 Resolution Front + Rear Cam: 4K+ 1080P 2K+ 1080P...
Page 7 Working Temperature -20°C to 70°C (-4°F to 158°F) Note: Please only use SARMERT car charger in this package. Please ALWAYS connect with power when using. As it is built in super capacitor (Only has a 1mAh Lithium Metal Battery used to memorize time).
Page 8: Product Diagram
PRODUCT DIAGRAM Ultra HD 5G Screen Mounting Bracket Power Down Mode Reset Speaker Type-C Charging Port Rear Camera Connection Port SD Card Slot Rear Camera - 06 -...
Page 9: Buttons And Functions
BUTTONS AND FUNCTIONS Functions 1. Press once while the camera is OFF-Turn ON the camera 2. Press and hold while the camera is ON-Turn OFF the camera 3. Press once while the camera is ON-Turn OFF/ON LCD screen, please note that it is still working 1.
Page 10: Installation
Rear Camera Cable Charging Cable Car Charger 12-24V DC Correctly connect the magnetic bracket and M572 dash cam through the strong magnetic attraction. Insert the microSD card into the microSD slot of the dash cam and format your SD card for the first time use.
Page 11 Peel off the protective film from the double-sided tape and attach the rear camera to the rear windshield. Adjust the angle of the lens by rotating the body of the rear camera, connect the front camera and the rear camera. Use the pry tool to lift the edges of the rubber window sealing and molding and tuck in the rear camera connection cable.
Page 12: Using Sarmert Dash Cam
USING SARMERT DASH CAM The camera is designed to power up and record automatically when it receives power. Then saves the video record and turns oﬀ automatically when the car shuts oﬀ. Auto Power ON/OFF: Plug car charger to cigarette lighter socket.
Page 13 First Time Use This menu is used to set your preferred language, time zone, date & time and format memory card. Press the OK button to enter the next step. This menu will appear when: The dash cam is first turned on. There has been a Firmware Update.
Page 14: Playing Video Files Using Sarmert Dash Cam
PLAYING VIDEO FILES USING SARMERT DASH CAM Press the ''M'' button to access the Menu settings. And then choose the ''Playback Mode'' to go to the Playback Mode. Normal: The dashcam records in normal loop recording mode or timelapse loop recording mode.
Page 15: Playing Video Files Using Your Smartphone
WiFi Name SSID: M572****** Default PASSWORD: 12345678 Note: M572 is built in 2.4GHz and 5GHz Dual-frequency WiFi module. If your phone can’t search M572 WiFi, it meas your phone ONLY support 2.4GHz band, plase shift to 2.4GHZ on the menu. - 13 -...
Page 16 M572_336582 M572_336582 Open the Oncam APP Now you can view in real-time the video currently being recorded by connecting your smartphone to the dashcam via WiFi direct. M572_336582 - 14 -...
Page 17 Download the video files into your smartphone Go to dashcam preview interface. Please STOP recording first, then press the ''Dashcam Albums'' to get photo, video, emergency files. Select the video files to download into your phone, then you can find these downloaded video files in APP original interface menu named ''Local Video''.
Page 18 Note: You can't operate the dash cam when your phone is connected to WiFi. WiFi direct lets you directly connect your smartphone to your dash cam via WiFi within a range of 25FT. The aPP won't show the live video on your phone. lt only shows a picture? The cellular data will cause the live video not to be viewed.
Page 19 WiFi signal (instead of a bluetooth) to pair your smartphone with oncam M572. Can I watch the videos around my car remotely? NO.
Page 20 There is one extra step you will have to take for the first time. Once you connect to the WiFi of M572, it will say ''No lnternet''. Which is fine. Wait about 10-15 seconds until you see the below pop up or notification.
Page 21: Menu
MENU 1. Video Settings Video Resolution Allow to choose the video resolution. Loop Record—1min(default) / 2mins / 3mins Here select the length (1/2/3 min) of each video clip for the loop recording. This function allows the dash cam to continuously record. Please notice: The dash cam will keep deleting the oldest files automatically when memory card gets full so that it can keep recording over and over.
Page 22: Playback Mode
Then select [Connected] and select parking mode. This parking mode has two options to choose from. Note: SARMERT's custom-designed 3-lead hardwire kit is required to use the parking monitoring feature. ( Hardwire Kit is not included in this package. )
Page 23 5. WiFi—Off(default ) / 2.4G / 5G Turn on/off the WiFi of the dash cam. WiFi Name SSID: M572************ Default PASSWORD: 12345678 Note: The oncam is available for devices running Android 5.0 and higher, or iOS 9.0 and higher.
Page 24: Microsd Card
6. Video Stamp—Off / On(default) Turn On/Off the Time/License plaste shown on recorded files. 7. Micro SD Card Format Reminder: Once chose a time duration and turn on this function, the dash cam will pop up ''Please format SD card'' to avoid too much locked files to use loop recording.
Page 25 Fatigue Driving Reminder—Off(default ) / 2hour / 3hours / 4hours Once chose a time duration and turn on this function, the dash cam will make sounds to alert. Date / Time Adjust the time & date as required. Note: Time and date settings will be overwritten upon satellite connection.
Page 26: Faq
Q1: Camera turns ON/OFF automatically? Ensure that the output current can reach 5V/2.5A and use our car charger. And ensure that the rear camera are connected correctly. lt is to improve stability that the dashcam reboots automatically once if it detects that there are different cameras connected. Q2: Video lmage is blurred? Remove the protective lens film, clean the lens, make sure the windshield is clean and clear of grease, dirt, and debris.
Page 27 Q7: Photograph is blurred? The dash cam has a minimum focal range of around 2 meters. Objects closer than this are likely to become blurred. LONG PRESS for 2-Seconds to Take Snap. Q8: Camera showing Memory Error? Using unqualified SD or third party cards can affect dashcam's performance and in some cases, force the dashcam to reboot randomly during recording.
Page 28: Notice
NOTICE This product complies with the radio interface requirements of the european community. This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate and recycling helps protect natural resources, human health and the environment.
Page 29 -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules.
