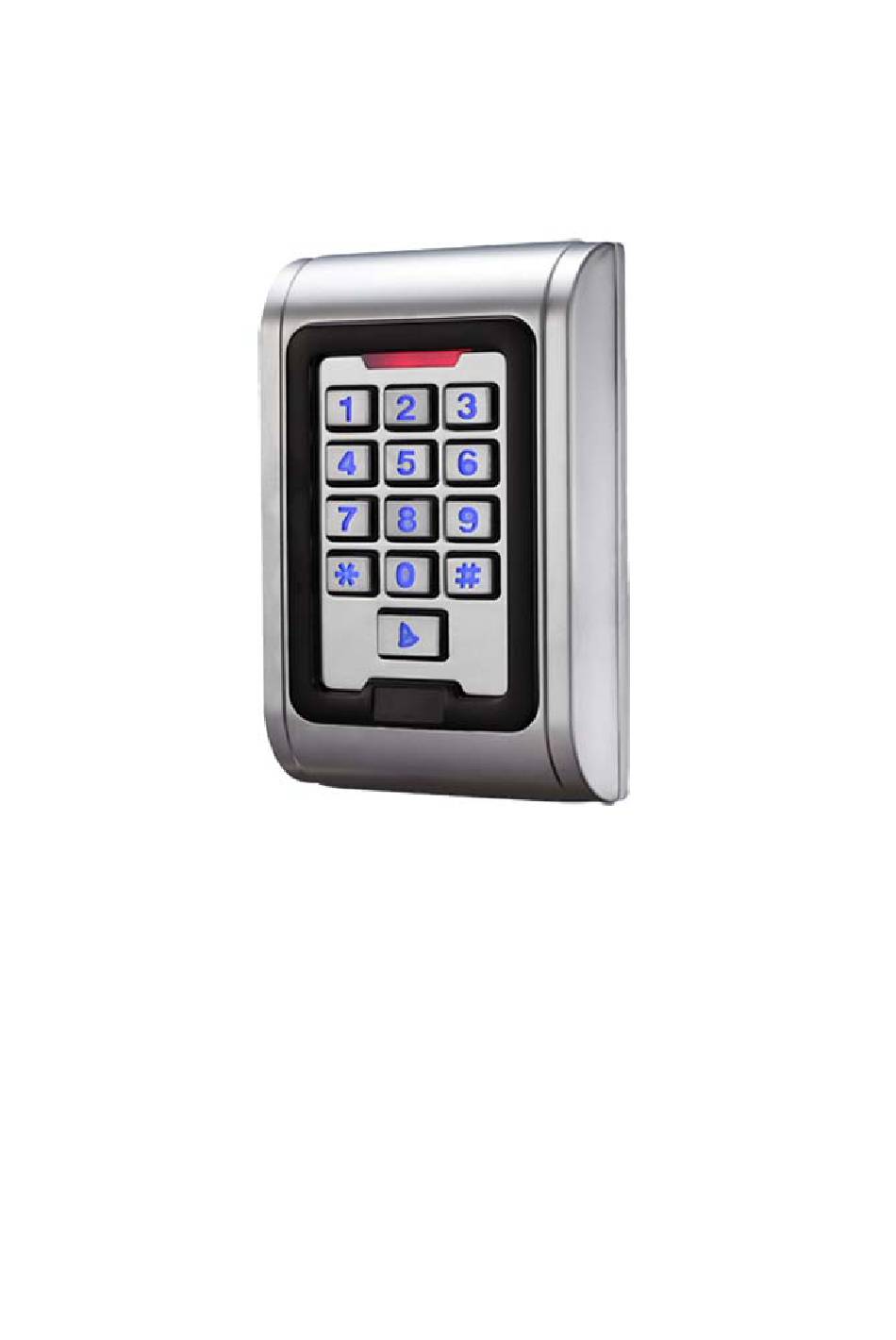

HSY-S209 EM Metal waterproof access control system
User Manual
Reading carefully before Install and use this manual
1. Product Profile
The product is Contact-less inductive card Metal Password Access Controller ，
According to the model, respectively support EM, HID, MIFARE three cards ， It is one of the most
advanced stand alone access controller. It uses unique metal exterior design, Dexterity keyboard
panel operation, Built-in high-grade microprocessors, Strong anti-interference ability, Safety and
reliability is extremely high, can provide a powerful security for 2,000 users. It has strong functions,
such as low power consumption, Luminous keyboard, independent passwords, wiegand output, the
output short circuit protection, door magnetic alarm, prevent demolition alarm, exit button, the
Advertisement
Summary of Contents for HSY HSY-S209
- Page 1 HSY-S209 EM Metal waterproof access control system User Manual Reading carefully before Install and use this manual 1. Product Profile The product is Contact-less inductive card Metal Password Access Controller ， According to the model, respectively support EM, HID, MIFARE three cards ， It is one of the most advanced stand alone access controller.
- Page 2 doorbell interface, level of security Settings, etc. widely used in home, office, residential area and other public places. 2. Features 1. Low power consumption: less than 30mA standby current 2. Luminous keyboard: the night can also operate keyboard 3. Capacity: support 2,000 users 4.
- Page 3 Figure 1 Note: restore factory Settings will not delete a user data Enter administrator operation status: Press * Administrator password # Administrator the default password: 999999 4.1 Modify administrator password: The new password # Repeat the new password # Press Note: the administrator password for 6 ~ 8 random Numbers, please take good care.
- Page 4 Note: applicable to no card users, password and card unrelated, input digits for four, but not for "1234" 4.3 Delete user 4.3.1 Delete swipe card Press 2 Reading card Reading card … # 4.3.2 Delete Designated card Number ： Press Eight card number # , Eight card number # , …...
- Page 5 That within ten minutes of continuous brush invalid card or enter the wrong password ten times, external alarm and built-in buzzer alarm at the same time 5. User operations 5.1 User use card modify password: Press * Reading card Old password New password Repeat the new password...
- Page 6 flashing sound 8 Installation method, lead wire description and Cabling diagram 8.1 Installation method 8.1.1 On the wall of the aperture size machine on the pan is playing well with a hole, or installed 2 exisiting junction box plus connecting.(Figure 2) Figure 2 8.1.2 Put the lead wire from Bottom shell of the outlet hole oout, he connection of cable needed, Unused lines wrapped with insulating tape isolated to prevent short circuit...
- Page 7 Blue Relay normally-on end（Connected positive electric lock +） Purple Relay Public end ， Connected Orange Relay Closed end （ connected negative electric lock +） Ac input for machines minus Shielding layer 8.3 Cabling diagram 8 ． 3 ． 1 Ordinary power supply Cabling diagram Figure 3 Ordinary power supply Cabling diagram 8．3．2 Access Control Power Supply Cabling diagram...
- Page 8 Figure 4 Access Control Power Supply Cabling diagram 9 Packing list Name Model/specificati Quantit Note Metal Password HSY-S209 access controller User manual HSY-S209 Tapping screws Used for Φ4mm×28 mm installation fixed Stopper Used for Φ6mm×30 mm installation fixed Star screwdriver Secial Φ20mm×60mm...
- Page 9 the front cover and back cover for a fixed 1N4007 Warm Tip: * Please don't secretly repair machine, if any problem, please return to factory maintenance. * Before the installation on the wall, if you want to punch, please check carefully wiring or line tube, prevent drilling broken wiring etc unnecessary trouble, please use safe glasses when drilling or fixed line clip.
