Brilliant Blood Pressure Solutions

Cycle

Users Manual

™

Brilliant Blood Pressure Solutions

Part #80-0035-00 Rev B

Table of Contents

Need help?

Do you have a question about the Cycle Stress BP and is the answer not in the manual?

Questions and answers

Summary of Contents for SunTech Medical Cycle Stress BP

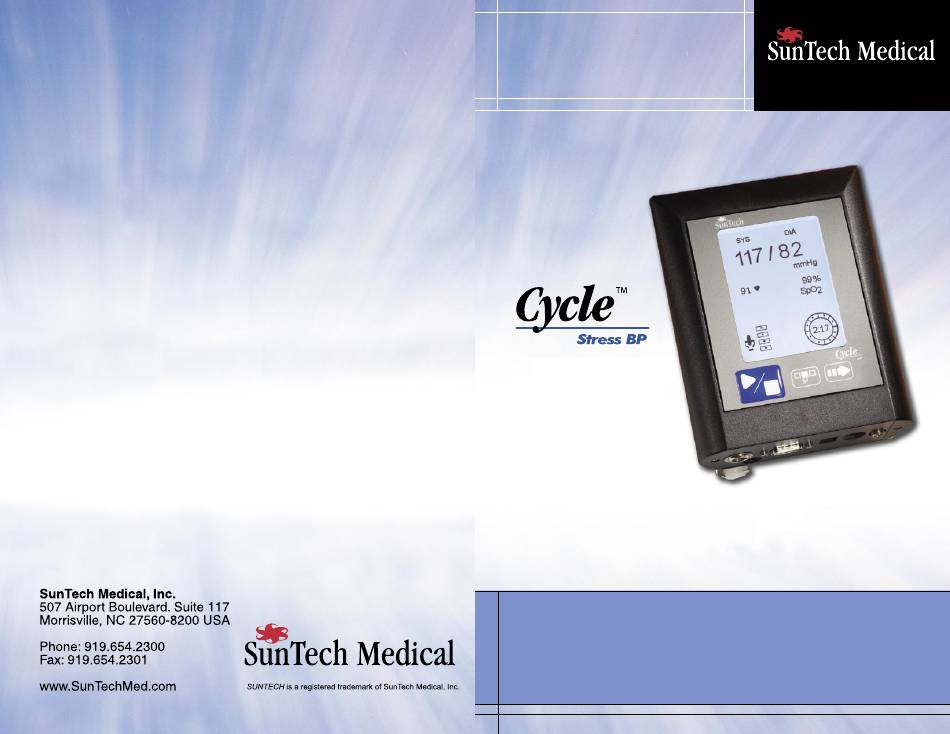

Page 1 ® Brilliant Blood Pressure Solutions Cycle Users Manual ™ ® Brilliant Blood Pressure Solutions Part #80-0035-00 Rev B...
Page 2: Table Of Contents
Contents Safety and Effectiveness Considerations ............... 2 Warnings and Contraindications ................3 At a Glance ....................... 4 Viewing the Connector Panel ..............4 Connecting Cycle Options ................. 4 Looking at the Measurement View ..............5 Using Cycle Buttons ..................5 Using the Memory Mode ..................
Page 3: Safety And Effectiveness Considerations
SunTech Medical at the provided. addresses listed in this document. The calibration of this product should be The user of the product shall have the sole checked annually.
Page 4: Warnings And Contraindications
DO NOT MAKE REPAIRS YOURSELF: No repair The following factors may affect the accuracy of should be undertaken or attempted by anyone not pulse oximetry: having been service trained by SunTech Medical or • Excessive ambient light having a thorough understanding of the repair and •...
Page 5: At A Glance
At a Glance Viewing the Connector Panel RS232 port DC power in K-sound microphone option Headphone option No SPO alarm Pneumatic hose Figure 1: Connector Panel Connections Connecting Cycle Options After unpacking the monitor and connecting the cables, follow the steps in “Operation— Preparing the Patient.”...
Page 6: Looking At The Measurement View
At a Glance, continued Looking at the Measurement View Blood pressure result %SpO Heart rate Microphone signal strength Interval timer Status code Figure 2: Measurement View (Standard Mode) When power is applied to the Cycle monitor, a splash screen appears brieﬂy. If the Cycle is attached to a stress system, the Cycle turns on and off along with the stress system.
Page 7: Using The Memory Mode
At a Glance, continued Using the Memory Mode Figure 3: Memory Mode Viewing Measurement History Cycle stores up to the previous three measurements. The most recent measurement ap- pears as the ﬁrst measurement. A measurement is stored in memory when either a new measurement is started or when the current one is 5 minutes old.
Page 8: Configuring The Monitor In Menu Mode
At a Glance, continued Configuring the Monitor in Menu Mode Interval Screen Max Pressure End Test Screen Figure 4: Menu Mode Accessing the Menu Mode From the Measurement view, press Menu . The Menu - End Test screen appears. To move through the Menu mode screens, press Menu To exit Menu mode, save settings, and return to the standard Measurement view, press...
Page 9: System Setup
System Setup Compatible Stress Systems You can set up the Cycle to work directly with your stress system. This means your stress system can prompt the Cycle to take a BP measurement while you are perform- ing a stress test. In addition, on some systems, the measurement from the Cycle will be transferred to your stress system to be displayed on screen and printed on any reports.
Page 10: Using The System Menu-Contrast Screen
System Setup (cont’d) Using the System Menu—Contrast Screen Use this screen to set the monitor display’s contrast. Press to scroll through settings from 1 to 10, with 1 being the lightest and Advance 10 being the darkest. The default setting of 5 provides optimum contrast for an envi- ronment with normal ofﬁce lighting.
Page 11: Operation
Operation Preparing Your Patient — Overview To accurately measure blood pressure during a stress test, carefully and correctly prepare your patient. Choose the appropriate cuff size. Insert the microphone into the cuff. Place the cuff on the patient’s arm. Attach the cuff and microphone to the patient cable. Use the wrist strap to secure the cables to the patient and away from the ergometer pedals.
Page 12: Preparing The Patient
Operation, continued Preparing the Patient To accurately measure blood pressure during a stress test, carefully and correctly prepare your patient. 1. Choose the appropriate cuff size. Without using the sleeve of the cuff, wrap the cuff around the patient’s upper arm. Use the Range Lines on the inside of the cuff to measure the arm’s circumfer- ence.
Page 13 Operation, continued 4. Connect the air hose and microphone to the Figure 8: Cables & Wrist Strap patient cable. Pay close attention to the micro- phone’s connector and cable when attaching. 5. Wrap the cuff around the arm and secure. Use the wrist strap to secure the cables to the patient.
Page 14: Conducting The Stress Test
Operation, continued Conducting the Stress Test After your patient is properly prepared, take measurements by pressing START/STOP using your stress system if properly interfaced (see “Compatible Stress Systems”). You can stop a measurement in process by pressing START/STOP Take 1–2 BP measurements with the patient seated or standing still. With the patient sitting or standing still, take a measurement by pressing the START/STOP button or by using your stress system.
Page 15: Types Of Measurement Readings
Operation, continued Types of Measurement Readings Cycle enables you to take measurement readings in the following ways: • Manual measurement readings, where you press each time you want to take Start/Stop a reading. • Interval measurements, where you specify a time interval at which Cycle takes the readings.
Page 16: Resetting The Monitor
Operation, continued Resetting the Monitor You can reset all monitor and system settings conﬁgured in the Menu and System modes to their default settings. Press at the same time for at least 6 sec- Menu Advance onds. The long duration prevents accidental resets. Note: The System Mode - Contrast screen appears 3 seconds after you press the buttons.
Page 17 Operation, continued Preparing the Patient for Pulse Oximetry - Finger Application Proper sensor placement is critical for good performance. If the sensor is not positioned properly, light may bypass the tissue and result in pulse oximetry inaccuracies. CAUTION: Some nail polish colors (particularly dark shades) or artiﬁcial nails may re- duce light transmissions and affect pulse oximetry accuracy.
Page 18 Operation, continued Preparing the Patient for Pulse Oximetry - Forehead Application Designed for use on well-vascularized skin surfaces of patients weighing greater than 30 kilograms. The application site will usually be the forehead. Note: Reﬂectance Sensors generally do not perform as well as sensors located on the ﬁngers or toes.
Page 19: Advice And Troubleshooting
Advice and Troubleshooting Quality and Status Messages In some situations, Cycle may experience difﬁculties obtaining a BP measurement. In these cases, a status code and icon appear on the screen between the microphone sig- nal and the time counter. In most cases, Cycle will be able to determine and display the blood pressure on the screen.
Page 20: Status Codes And Solutions
Advice and Troubleshooting, continued Status codes and solutions Status code Description Solution Weak or missing K-sounds. If the patient is static or still: 1. Check HR is within 10 beats of stress system's displayed HR. 2. Take another BP and watch for K-sounds. 3.
Page 21 Advice and Troubleshooting, continued Status code Description Solution Irregular pulse or noise. If the patient is static or still: 1. Reposition the cuff so that the mic is over the brachial artery and try again. 2. Reconnect the patient cable to the cuff and microphone and try again.
Page 22: System Errors
Advice and Troubleshooting, continued Status code Description Solution Deﬂation too slow. If using 3mmHg/sec deﬂate, switch to AUTO. Restricted ﬂow status. 1. Instruct patient not to bend arm until deﬂation is complete. 2. Contact the SunTech Service Dept. or an authorized service agent, if this status code occurs repeatedly.
Page 23: Emc Statement
Advice and Troubleshooting, continued EMC Statement This equipment has been tested and found to comply with the limits for medical devices to IEC60601-1-2: 2001. These limits are designed to provide reasonable protection against harmful interference in a typical medical installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to other devices in the vicinity.
Page 24 Advice and Troubleshooting, continued Guidance and manufacturer’s declaration – electromagnetic immunity The Cycle BP Monitor is intended for use in the electromagnetic environment speciﬁed below. The customer or the user of the Cycle BP Monitor should assure that it is used in such an envi- ronment.
Page 25 Advice and Troubleshooting, continued Guidance and manufacturer’s declaration—electromagnetic immunity The Cycle BP Monitor is intended for use in the electromagnetic environment speciﬁed below. The customer or the user of the Cycle BP Monitor should assure that it is used in such an environment. Immunity test IEC 60601 Compliance...
Page 26 Advice and Troubleshooting, continued Recommended separation distances between portable and mobile RF communications equipment and the Cycle BP Monitor The Cycle BP Monitor is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Cycle BP Monitor can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Cycle BP Monitor as recom- mended below, according to the maximum output power of the communications equipment.
Page 27: Frequently Asked Questions (Faqs)
System Menu - Communication screen. If your stress system is not listed use the Custom setting or please contact SunTech Medical. Q. The Cycle displays a status message. What does it mean, and what do I do? A.
Page 28: Maintenance And Cleaning
Maintenance and Cleaning Cleaning the Cuffs Preventative Maintenance Use a medical grade disinfectant on the cuff The monitor performs system and software sleeve and inside of the cuff between patients. checks during normal operation. If there are Periodically, remove the bladder and micro- any problems, a status code appears in place phone, machine wash the shell of the cuff in of the measurement screen.
Page 29: Disposal
Maintenance and Cleaning, continued Disposal This symbol indicates the monitor contains materials (such as electrical compo- nents) which are hazardous. Please return to SunTech Medical for disposal. For service inquiries, please contact: SunTech Medical, Inc. SunTech Medical, Ltd. 507 Airport Boulevard, Suite 117 Oakﬁeld Industrial Estate...
Page 30 Accessories and Consumables, continued RS232 Interface Cables Stress system RS-232 Burdick Quest 91-0013-00 Cambridge Heart CH2000 (v2.0.3 and up) 91-0065-00 Esaote Formula 91-0048-00 Marquette Case 12 or 15 91-0012-00 Marquette Case 16 91-0013-00 Marquette Centra 91-0012-00/91-0013-00 Marquette Case 8000 91-0013-00 GE-Marquette Case 91-0013-00 Marquette/Sensormedics Max 1...
Page 31: Specifications
Speciﬁcations Blood Pressure Auscultatory for use during all static and active phases of the ergometric Measurement: stress test. The device is designed to function in the presence of a normal ECG sinus rhythm. Diastolic pressures correlate to K-5 Korotkoff sound. Range: Pressure: Heart Rate: 40 –...
Page 32: Limited Warranty
United States prepaid to the factory. SunTech Medical, Inc. will repair any component(s) or part(s) that it ﬁnds to be defective during the period of this limited warranty. Should a defect become apparent, the original purchaser should ﬁrst notify SunTech Medical, Inc.
