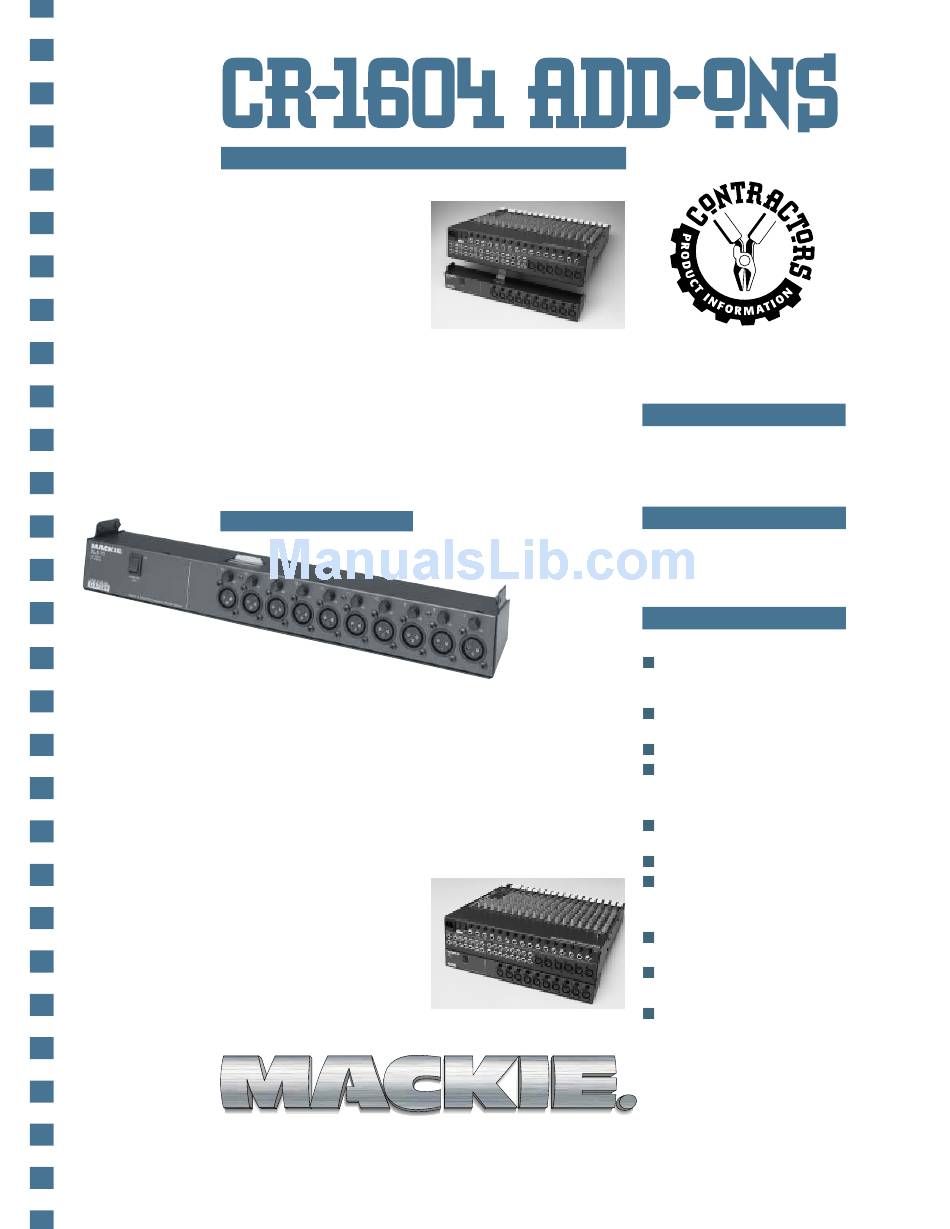

Mackie CR1604 - DATASHEET ADDONS 7-1-95 Datasheet

XLR10•MIXERMIXER•ROTOPOD•REMOTE FADER

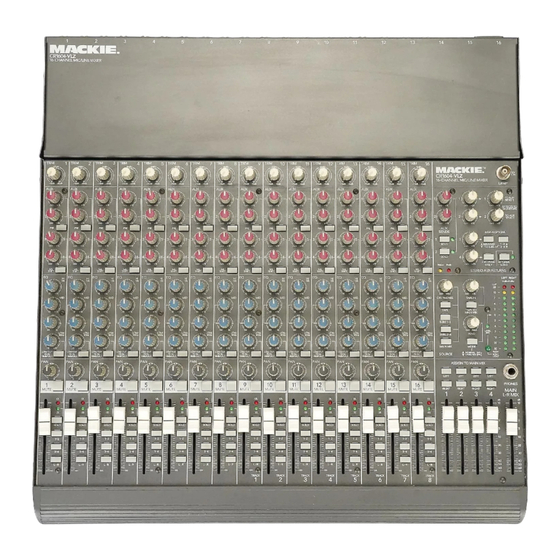

Unlike any other 16-chan-
nel compact mixer, the
CR-1604 is part of a mixing
system. The enhancements
presented here give you
unprecedented flexibility in
tailoring a mixer to a job.
Conversely, you need only
specify what is required for
a project without adding
costs for extraneous fea-
tures that won't be used.
Then, at any time in the
future, the basic CR-1604
can be expanded, as the
users' needs change.
XLR1 0 EXPANDER
The XLR10
adds ten additional
discrete, studio-grade phan-
tom-powered mic preamps
to the CR-1604 16-channel
Mic/Line Mixer for a total of
16 mic inputs.
The XLR10 module
mounts directly to the bot-
tom of the CR-1604 Input/
Output Pod and becomes
an integral part of the
mixer itself. Installation
requires just a few minutes
and a screwdriver. Elec-
tronic connections are via
an integral ribbon cable
connector already inside
the CR-1604.
The XLR10's preamps use
the same exceptionally high-
XLR10 docking to CR-1604
quality design that has distin-
guished the CR-1604 mixer.
In creating both units, we
have developed a rigorous
definition of what a Mic
Preamp should be, based on
the technical specifications
that PA, permanent install
and recording studio applica-
tions require of larger boards.
Instead of simple, two-
transistor op-amp
combinations
found in most
other small
mixers, the
XLR10
preamp uses
four conjugate-
pair transistors with
large-emitter geometry to
reduce distortion at all levels
and deliver extremely low
noise (our published specs
of –129.5 dBm E.I.N. @150
ohms, bandwidth of 10Hz to
300kHz and 0.001% distor-
tion are real and verifiable).
XLR10 attached to CR-1604
7/1/95
RELATED PRODUCTS
CR-1604 MIC/LINE MIXER
MORE INFORMATION
CR-1604 ADD-ON ARCHI-
TECTS' & ENGINEERS' SPECS
"IN YOUR FACE"
ALL-PRODUCT BROCHURE
FEATURES
XLR10
Adds 10 more high
quality mic preamps to
the CR-1604
Individual channel
trim controls
Phantom power
Forms single structural
unit with mixer
MixerMixer
Combines all outputs of 2
or 3 CR-1604s
No loss of inputs
Internal power supply
Remote Fader
(add-on to MixerMixer)
Controls master output of
up to 3 CR-1604s
Precision 100mm design
RotoPod
Rotates CR-1604 input/
output pod so that jacks
are on same plane as
controls
®
