Summary of Contents for Himiway C3

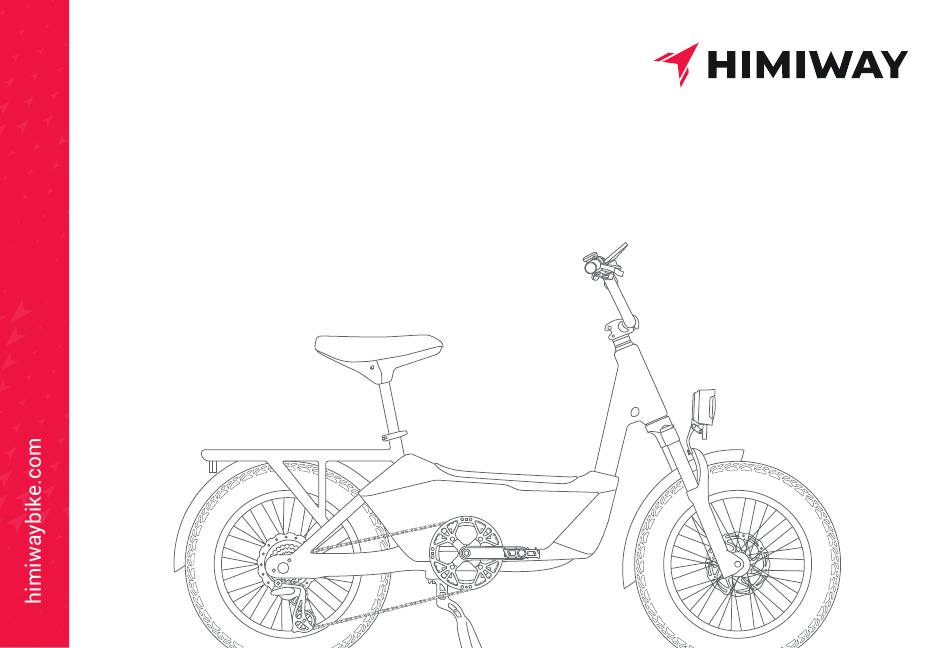

Page 1 Guide & Manual...
Page 3: About Manual
Read it carefully and familiarize yourself Go to page 10 to ﬁnd your serial numbers with the Himiway Bike before using it to ensure safe use, reduce risk of damage and premature wear, and prevent accidents. Be sure to retain this manual as your convenient Himiway Bike information source.
Page 4: Safety Information
BEFORE OPERATION above ambient temperatures of -10°C (14°F).” The blanks are to be ﬁlled in Before operation of your new Himiway e-bike, it is crucial for your safety and per with the manufacturer’s speciﬁed ambient temperature ratings. the manufacturer's requirement, that you thoroughly read and understand this instruction manual.
Page 5: Range Reference Table
So the weekly mileage for e-bike enthusiasts is 52.4 miles. • Combined with some other factors in riding, Himiway believes that an e-bike that can Loading: Overloading the bike surpassing the stated payload limit, especially reach 60 miles on a single charge is an authentic long-range e-bike.
Page 6 Bike Speciﬁcation Power Switch LCD Display LED Light Switch Shimano Shift Lever Throttle Saddle Rear Rack Battery 70.47 Inch 25.2 Inch - Total Length - Effective top tube LED Headlight Front Suspension 42 Inch 23 Inch - Handlebar Height - Wheel Diameter 47.2 Inch 8.1 Inch - Wheelbase...
Page 7 Bike Speciﬁcation Battery 48V 20 Ah LG lithium battery Pedal Assist 0~5 level pedal assist Frame 6061 alloy frame 197x12mm rear axle Display Himiway LCD display Recommended Rider Drive Unit 750W brushless geared hub motor 5'2"~6'3" Heights Headset A16M 44*44*30 Charger US standard 3.0 A smart charger...
Page 8: Preparation Checklist
SSPlease keep the original packaging for at least 15 days! Pedal Axle *2 28-33 Rear Derailleur Pivot *1 8-10 *Follow our Youtube channel Himiway Bikes to watch bike assembly tutorials！ Front & Rear Brake Adapter *4 9-10 Front & Rear Disk Bolts *12 8-10...
Page 9: Front Wheel Installation
Assembly Instructions ◆ Front Wheel Installation ◆ Handlebar Installation(4mm Hex Wrench) Step 1: Loosen the bolts on your bike stem. Step 1: Lay a mat down to protect both bike and floor from scratches. Next, carefully flip Step 2: Center your handlebars and rotate them to align to the marking pointed to in the your bike upside down for the front wheel installation.
Page 10 Step 2: Remove the plastic axle guards from the front wheel, being careful to avoid Step 5: Align the hole in the center of the tire with the hole in the hub axle. Then, insert contact with the brake rotor set. and secure the hub axle while ensuring that the brake pads of the front wheel are properly engaged with the brake.
Page 11 ◆ Pedals Installation (15mm wrench) ◆ Headlight Installation (Extra Tool: 5mm Wrench) Step 1: Loosen the bolt on the fork brace. Align the bolt holes of your headlight with the Make sure your pedals are installed on the correct side, as installing on the wrong side hole on the fork brace, then reinsert the bolt through all holes and tighten the will damage the threads.
Page 12: Seat Adjustment
◆ Seat Adjustment ◆ After Bike Assembly Adjust the Seat Height: Please write down the serial numbers found on the head tube, battery and motor on the inside front cover of this manual to facilitate failure reporting. Make sure each letter and Open the seatpost quick release lever.
Page 13: Charger Use
Ebike and Battery Storage Note that Himiway C3 bikes operate ideally at elevations up to 2000 meters above Do not leave the battery charging unattended for extended periods for its safety sea level. Riding at higher altitudes might considerably impact performance.
Page 14: Safety Checklist
The following safety notes provide additional information on the safe operation of your Safety Check Basic Steps Himiway bike and should be closely reviewed. Improper operation, or failure to conﬁrm correct installation, compatibility, and maintenance of any component or accessory may o Test front and rear brakes for proper function.
Page 15: Battery Charging
Assemble the charger as shown in Figure 1 by inserting the plug (Plug 1) into Himiway E-Bike Use and Care the transformer. The following table of contents provides general guidance on Himiway e-bike variable Plug 1 power assist settings and their effects on both range and performance. This content will apply broadly to most riders, but multiple factors will affect individual results including rider ﬁtness and weight, terrain, proper maintenance, etc.
Page 16 Step 3: Check the battery status (ﬁg. 8): Step 4: Safest way to charge your battery- First, assemble the charger by inserting the plug (Plug 1) into the transformer. Light Status Charging Status Then insert the DC plug (Plug 2) into the battery charging socket. Last, insert the power plug (Plug 3: 110V-240V plug) to the power socket.
Page 17: Basic Display Settings
◆ Function Display on the main UI *Go look on our website: https://himiwaybike.com Help Center Tools and Instructions Battery Level Pedal Assist Level *For video tutorial, search Display Settings on Himiway YouTube Channel. Lighting Indicator Charging Indicator Walking Mode Indicator Average Speed Maximum Speed Speed Unit...
Page 18: Walking Mode
◆ Power On/Off ◆ Walking Mode Press and hold the “ ” for 2S to power the display. Press and hold the “ ” for 2S to Press and hold “ ” for 2S and the E-bike will enter the walking mode with a constant power off.
Page 19: Battery Level Display
◆ Assist Level Selection ◆ Motor power indication (uploaded power with protocol support or real-time operating current and voltage) Click on “ ” or “ ” to change the assist level. The default gears of the display instrument are Gear 0-5, with Gear 0 with no power output, Gear 1 with the minimum Motor output power can be known through the display.
Page 20: General Settings
◆ General Settings ◆ Backlight Brightness Press and hold power button to powered on the E-bike. While the bike is stationary in bL refers to backlight. 1, 2, 3, 4, 5 can be used to show different levels of the backlight the power-on state, press and hold the “...
Page 21: Exit Setup
◆ Imperial and Metric Unit Conversion ◆ Exit Setup U is for unit, 1 for imperial units and 2 for metric units. Convert the speed and mileage Clicking on the “ ” button ( within 2S ) in the setting status is to conﬁrm the input and units by pressing “...
Page 22 If your battery displays abnormal charging behavior, such as: • The Himiway Bike can be safely ridden in light rain. However, riding through very • Longer-than-expected charge time heavy downpours or through flooded streets is not recommended, as the crank •...
Page 23: Riding Modes
Himiway Ebike can reach speeds of up to 25 miles/h with throttle mode, which not only allows you to travel faster, but also reassures riders with extra power whenever needed, depending on trafﬁc conditions and rider energy levels.
Page 24: Moving And Storage Instructions
Riding Limitations ◆ Pedal-only In this mode, the Himiway will perform like a normal bike, as you’ll be riding without any Following are some limitations needing riders’ careful attention to ensure the geared assistance from the motor. This mode is especially useful if you run out of battery, or are hub motor does not overheat or become damaged from excessive loading: looking for more intensive resistance training.
Page 25: Safety And Care Instructions
◆ Cargo Safe Operation Tips: non-corrosive detergent mixture. Wipe or spray all unpainted parts with anti-rust The following list provides important tips for the safe operation of the Himiway Ebike treatment after being used in coastal areas or areas with salty air or water.
Page 26: Maintenance
We recommend using a front fork dust cover to protect the inner tube of your front fork. This prevents dust from entering as well as hard objects from hitting the inner The Himiway Bike can be safely ridden in light rain. However, riding through very tube.
Page 27 Step 6: Tools and equipment required: Using a T15 Torx, remove the Reser/oir bleed plug. Set aside. - 2mm Allen wrench - Piece of tubing - 4mm Allen wrench - Tektro brake fluid Step 7: Install the knurled silver bleed ﬁtting (supplied with the bleed kit) into the - 7mm wrench - Piston holder reservoir bleed port.
Page 28: Warranty
You can ﬁnd more information about 2.3mm rotors and 5.0mm pads on TEKTRO website. (See 4i). Himiway has the right, without notice to the consumer, to substitute components of at least equal quality for advertised Himiway e-bike components if those advertised Rotor replacement: components are unavailable.
Page 29 Long Range E-bike Expert...
