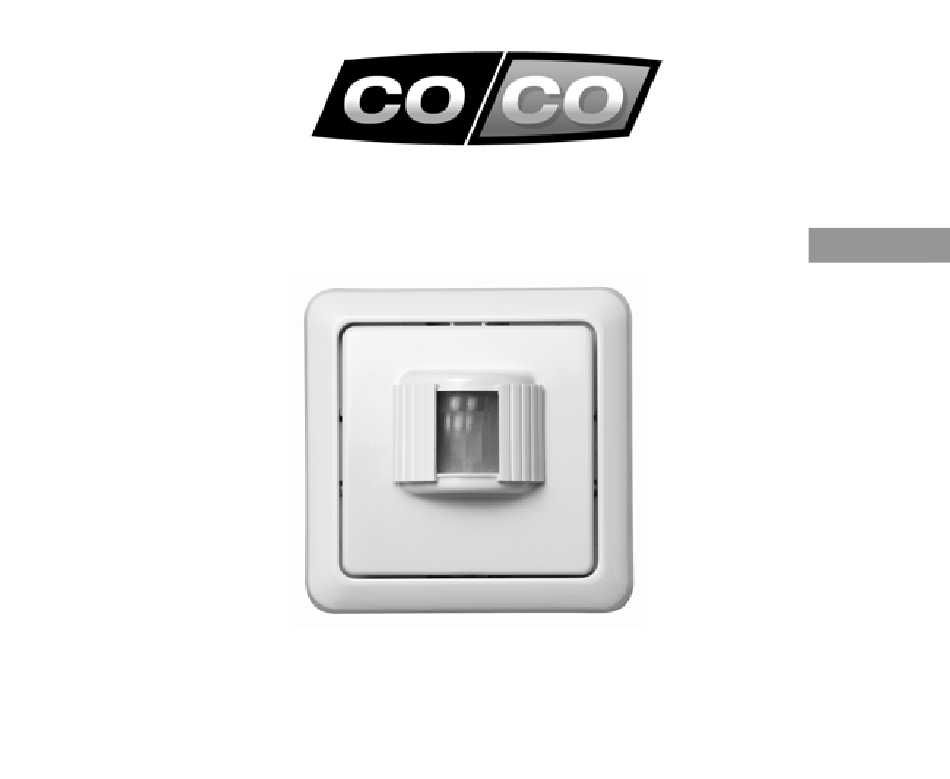

- Page 1 USER’S MANUAL version 1.1 English AWST-6000 WIRELESS MOTION SENSOR...
- Page 2 AWST-6000 WIRELESS MOTION SENSOR A: Motion sensor E: Switch "on" signal Picture of the AC-1000 B: Removable switch F: Range switch (not included) plate G: Light sensitivity switch C: Battery compartment D: Time switch “off”...
- Page 3 AWST-6000 WIRELESS MOTION SENSOR [1] Remove the front with the sensor and the wall [2] Mount the product in the desired location. plate from the base. The arrow must point up! If necessary, use a screwdriver to carefully pry Place the product at a height of approx. 1.5 off the front.
- Page 4 AWST-6000 WIRELESS MOTION SENSOR [3] Insert the batteries with the + and – poles [4] Set the light sensitivity switch to “M” or “L”. “M”: facing the correct direction. Sensor works in areas with little light or in the afternoon (15 to 25 Lux). “L”: Sensor works in dark areas or late in the evening (0 to 15 Lux).
- Page 5 AWST-6000 WIRELESS MOTION SENSOR [5] Activate the automatic search mode of the [6] Slide the “LEARN" switch to “SET”. To confirm, receiver (see the corresponding manual). the receiver switches on and off two times. This product only works with receivers with a product code that begins with “A”!
- Page 6 AWST-6000 WIRELESS MOTION SENSOR [7] Set the range switch to the desired range (see [8] Set the time for switching off. As soon as no “Remarks” for more information). more movement is detected, the transmitter will automatically send an "off" signal after 5 seconds, 1 minute, 5 minutes or 10 minutes.
- Page 7 AWST-6000 WIRELESS MOTION SENSOR [9] Place the wall plate back on the base. [10] The detection range is maximum 80° and minimum 20°. Remove or reposition the screens to adjust the angle. The front only fits in one direction. The sensor...
- Page 8 AWST-6000 WIRELESS MOTION SENSOR Remarks Placement and detection range...
- Page 9 AWST-6000 WIRELESS MOTION SENSOR Reminders • This motion sensor is a transmitter for operation of one COCO receiver independently or multiple receivers simultaneously. • This product must be used in combination with at least one COCO receiver (not included). • The wireless system can be expanded indefinitely with other COCO remote controls and/or receivers.
- Page 10 This product complies with the essential requirements and other relevant provisions of the applicable European directives. The Declaration of Conformity (DoC) is available at www.coco-technology.com. If possible, submit this product for recycling after use. Do not dispose of the product with household trash.
- Page 11 AWST-6000 WIRELESS MOTION SENSOR Warranty and copyright This device is covered by a two-year warranty that begins on the day of purchase. Visit www.coco- technology.com/warranty for additional information. Reprinting of (portions of) this manual without permission from Pan-Trade International B.V. is expressly prohibited.
- Page 12 P.O. BOX 126 4760 AC ZEVENBERGEN THE NETHERLANDS www.coco-technology.com Declaration of Conformity Pan-Trade International BV declares that the COCO product, model: type designation AWST-6000 WIRELESS MOTION SENSOR item number 74013 is in compliance with the essential requirements and other relevant provisions of directives R&TTE 1999/5/EC, EMC 2004/108/EC and LVD 2006/95/EC and is compatible with the standards EN 300 220- 1/3, EN 55015, EN 301 489-1/3 and EN 60950.
