Topway JCB35H7B2 User Manual

Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

1. Function description
These devices are micro-processor based, electronic controllers mainly intended
for controlling external loads, such as motors, actuators and lightings etc.,
designed to be incorporated massage equipment.
2. Description of load type and connection of each circuit
The control box JCB35H7B2 interface can connect four DC motor actuators,
two DC massage motors ,one LED light, one Bluetooth receiver box,
Corresponding interfaces are respectively identified as Head Motor, Foot Motor,
Neck Motor , Foot Motor ,Head Motor , LED and APP, The POWER port is the
supply port of the control box.
·

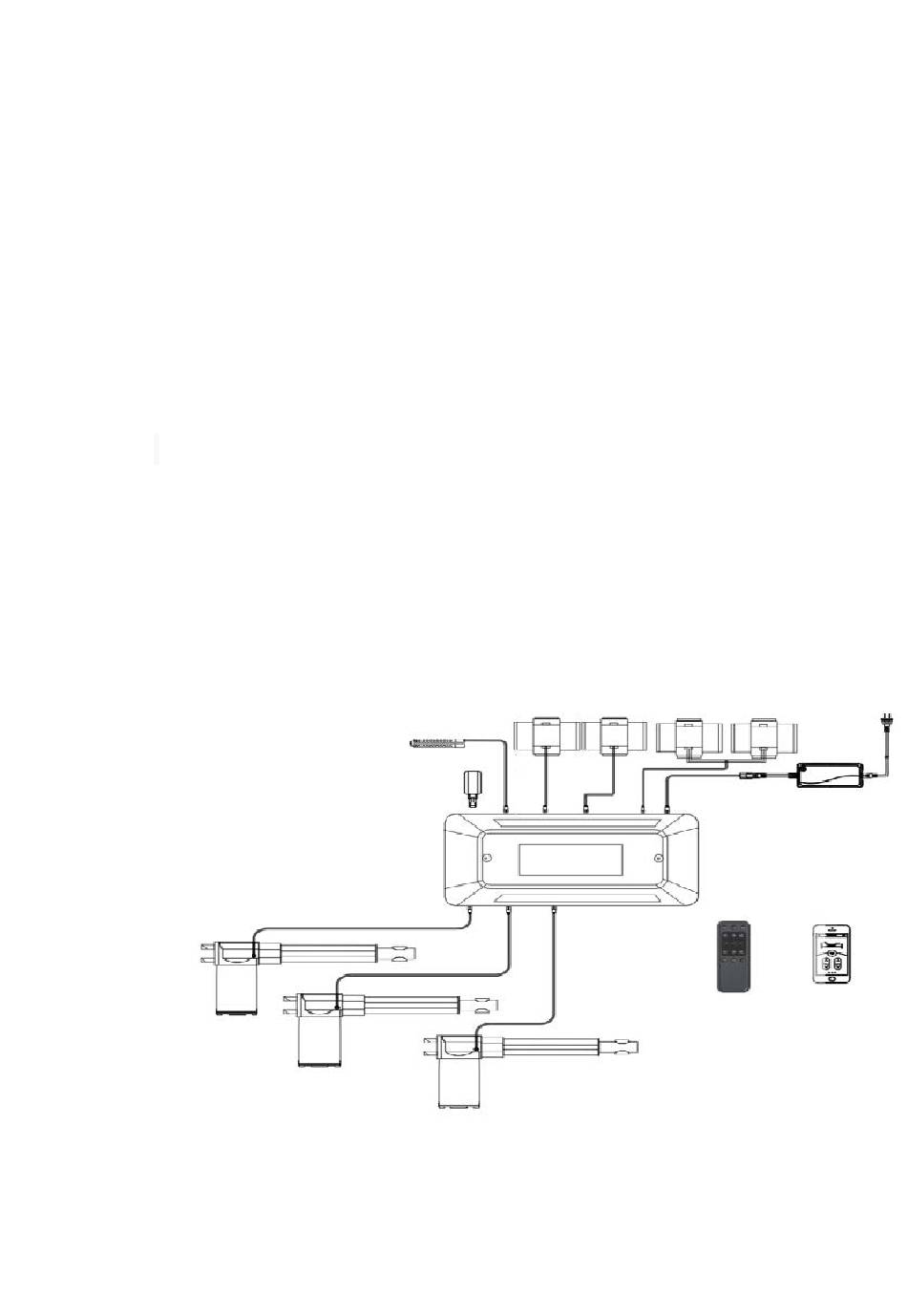

Connections diagram as follows
3. Limitation of the DC actuators
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JCB35H7B2 and is the answer not in the manual?

Questions and answers

Related Manuals for Topway JCB35H7B2

Summary of Contents for Topway JCB35H7B2

  • Page 1 2. Description of load type and connection of each circuit The control box JCB35H7B2 interface can connect four DC motor actuators, two DC massage motors ,one LED light, one Bluetooth receiver box, Corresponding interfaces are respectively identified as Head Motor, Foot Motor, Neck Motor , Foot Motor ,Head Motor , LED and APP, The POWER port is the supply port of the control box.

  • Page 2: Safety Instructions

    1) WARNING: For indoor use only. 2) For use in pollution degree 2 environment. 3) Rated impulse voltage 330V 4) Class III ‘ ’symbol; 5. Specifications JCB35H7B2 10%, with Max. 2 minutes Actuator quantity Duty cycle operate Min. minutes stop duration.

  • Page 3: Basic Settings

    JCB35H7B2dimension and connection 6. Basic Settings Press button and not release, the actuator M1 move up, release the button, the actuator stop moving; Press button and not release, the actuator M1 move down, release the button, the actuator stop moving. Press button and not release, the actuator M2 move up, release the button, the actuator stop moving;...
  • Page 4 Memory location A Memory location B ZG location ANTISNORE location Night light motor work motor stop motor work The control box is paired with the remote control Pairing function: after the control box is powered on, the control box enters the learning state, and the green light of the control box flashes continuously.

  • Page 5: Fcc Statement

    FCC Statement： Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation.
