Star CYCLONE SPBRK-35 Manual

CYCLONE
SPEAKER MOUNTING KIT
SPBRK-35 / SPBRK-36 / SPBRK-40 / SPBRK-41
(Single Speaker 2015-2020) (Dual Speaker 2015-2020) (Single Speaker 2021-2023) (Dual Speaker 2021)-2023
Chevrolet Tahoe/Suburban SUV
Please Note: These instructions are provided as a general guideline only.
Specific mounting, wiring, and/or weather-sealing may be necessary and are
the sole responsibility of the installer.
responsibility for the integrity of the installation for this or any of its products.
WARNING: ALWAYS WEAR HEARING PROTECTION PER OSHA 1910.95
455 Rochester Street
585-226-9500
www.StarSafetyTechnologies.com
The manufacturer assumes no
Avon, NY 14414
(F) 888-478-2797
PLIT427-35 REV. E 2/16/24
Installation
WARNING: ALWAYS WEAR HEARING PROTECTION PER OSHA 1910.95
1. Mark and remove bolts:
• Mark hood latch bolts with a permanent marker to ease re-alignment.
• Remove hood latch bolts and set hood latch mechanism aside.
• Do not remove hood latch cable from assembly.

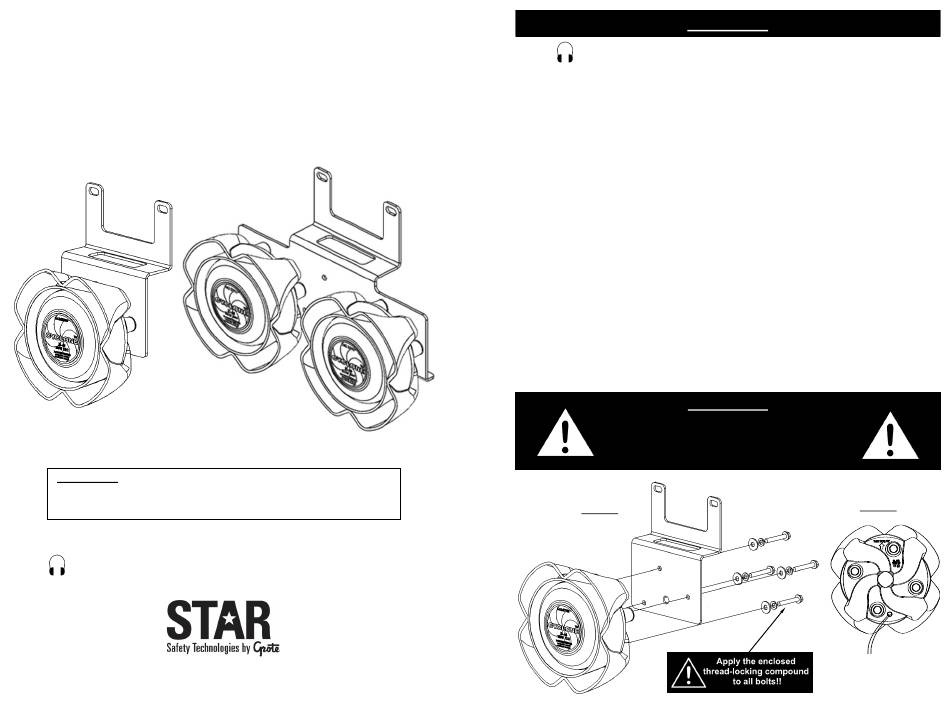

2. Mount speaker to bracket (SEE FIG.1):
• Remove three (3) bolts from back of D-44 speaker.
• Speaker wires must exit bottom of speaker (SEE FIG.2)
• Apply thread locking compound to threads.
• Align holes in bracket to speaker and re-install bolts torquing them to 30 in-lbs.
3. Install speaker and reinstall hood latch mechanism:
• Place speaker/bracket assembly in hood latch cavity.
• Align speaker mounting holes with the existing latch mounting holes in the core
support. (SEE FIG 3)
• Reinstall hood mechanism to its original position using previously marked locations.
• Reinstall bolts and torque to proper manufacturers torque specification.
4. Route wires:
• Route wires so they are not in contact with any sharp or abrasive surface.
• Fasten securely to nearby features.
• Refer to siren installation manual for wiring connections.
IMPORTANT!
Speaker must be mounted with
drain hole/wiring exit facing down.
Failure to do so will void warranty!
FIG.1
FIG.2
-1-
