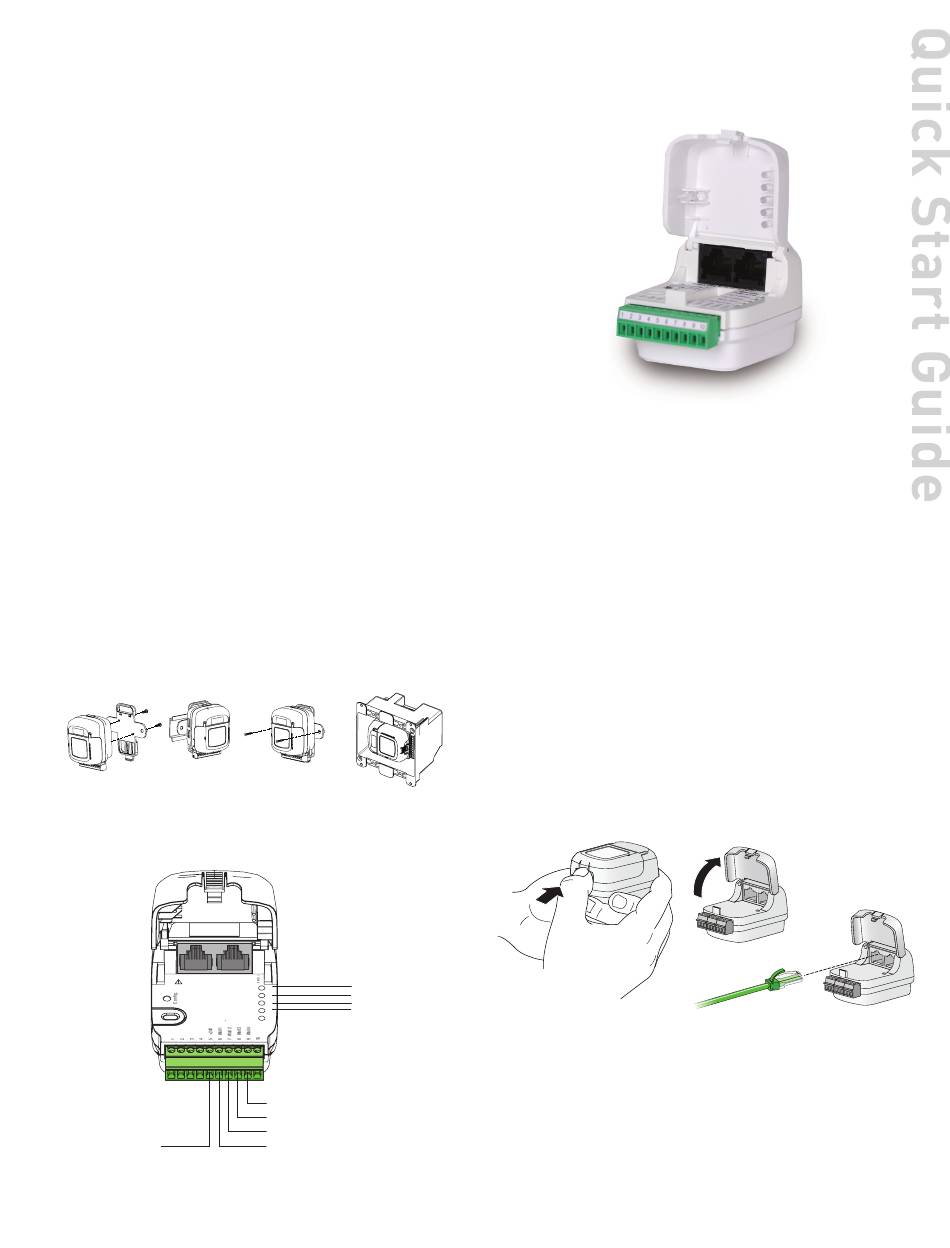

wattstopper LMIO-102 Quick Start Manual

For full operational details, adjustment and more
features of the Digital Lighting Management
(DLM System), see the DLM System Installation
Guide provided with the room controller and also
www.wattstopper.com
available at
INSTALLATION SHALL BE IN
ACCORDANCE WITH ALL
APPLICABLE REGULATIONS,
LOCAL AND NEC CODES.
For Class 2 DLM devices - To be
connected to a Class 2 power source
only.
UNIT DESCRIPTION
The Lighting Management LMIO-102 device automatically
coordinates lighting for up to four moveable walls. It has
four inputs for four moveable walls equipped with (third
party) contact closures.
MOUNTING AND WIRING
Installation shall be in accordance with all applicable
regulations, wiring practices, and codes. Connect to a Class
2 power source only. • Class 2 Device Wiring Only – Do Not
Reclassify and Install as Class 1, 3 or Power and Lighting
Wiring.
• Wire connections shall be rated suitable for the wire size
(lead and building wiring) employed.
The LMIO-102 is UL2043 Plenum rated.
All connections to the LMIO-102 are Class 2 low voltage.
If code requires that the LMIO-102 be mounted in an
enclosure, it can be mounted inside a 4" x 4" junction box,
inside a 2 1 /8" deep (or deeper) 2-gang wall box, in a 3" or 4"
octagonal box, or on a DIN rail inside a panel.
Attach DIN rail Option 1:
clip Attach to
DIN rail
Connect to
Blue LEDs = Wall Closed
DLM local network
NOT Ethernet
+24VDC
For Class 2 Device Wiring Only –
Do Not Reclassify and Install as
Class 1, or Power and Lighting
Wiring.
Wire connections shall be rated
suitable for the wire size (lead
and building wiring) employed.
Option 2: Inside a
Mount to 2-gang J-box
wall
Wall 1
Wall 1
Wall 2
Wall 2
Wall 3
Wall 3
Wall 4
Wall 4
Not Used
Wall 4
Wall 3
Wall 2
Wall 1
LMIO‑102
Digital Lighting Management
SPECIFICATIONS
Voltage ..................................................................... 24VDC
Current Consumption .............................................. 20mA
Power Supply .................. WattStopper Room Controllers
Connection to DLM Local Network ..............2 RJ-45 ports
Environment ...................................... For Indoor Use Only
Operating Temperature .........32° to 104°F (0° to 40°C)
Storage Temperature ........... 23° to 176°F (-5° to 80°C)
Relative Humidity ................5 to 95% (non condensing)
Other:
RoHS compliant, UL2043 Plenum rated, 5-year warranty
ATTACH THE LMRJ CABLE
The DLM local network uses free topology low voltage
wiring. The LMIO-102 can connect anywhere on the DLM
local network.
Partition Interface
