Summary of Contents for Dewenwils HHRA01A

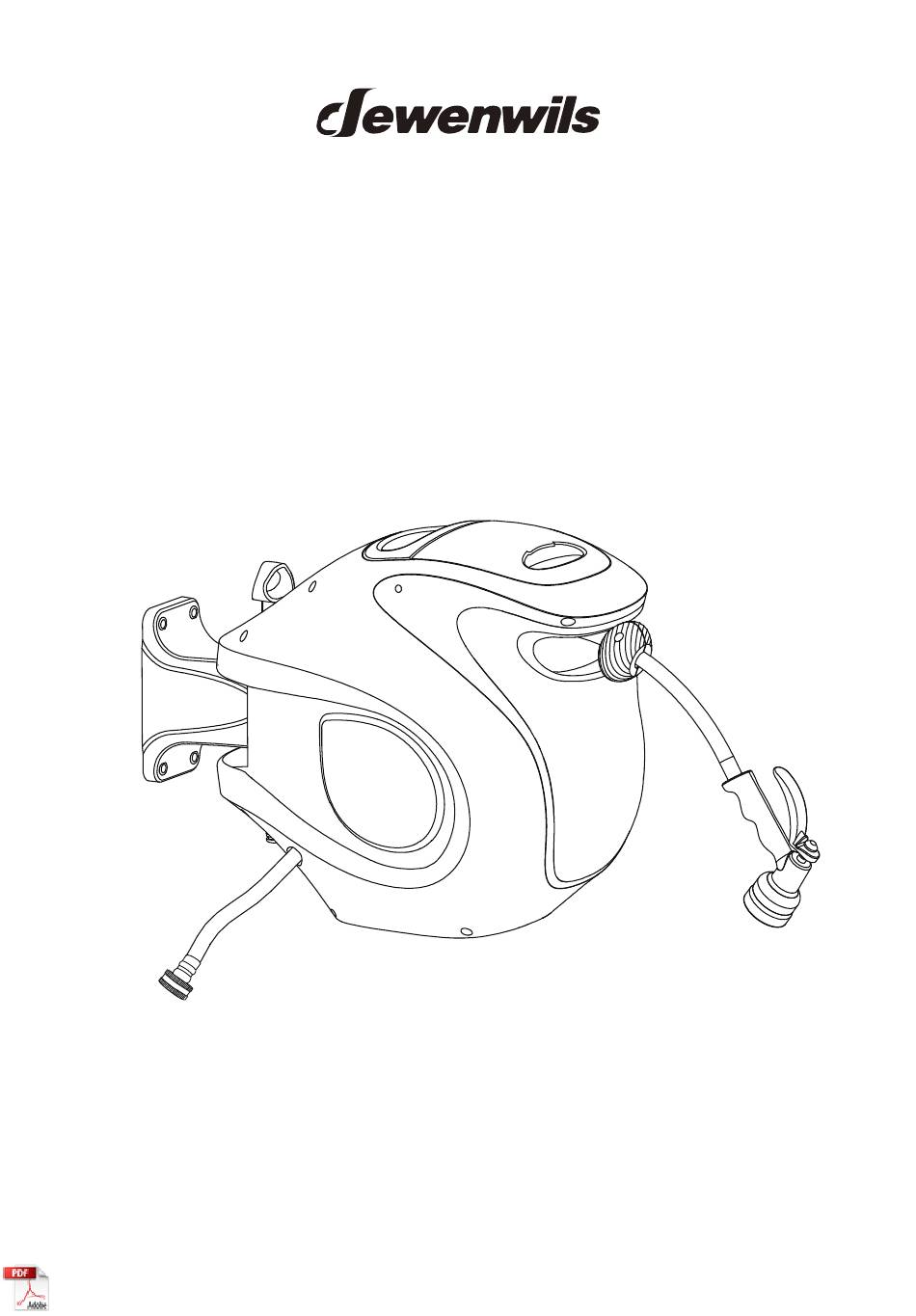

Page 1
Garden Hose SKU: HHRA01A [Instruction Manual] Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V30320...
Page 2
Warning: 1. The retractable garden hose is designed exclusively as a hose reel in an enclosed hose box equipped with an automatic hose winder. In addition to the spray nozzle and the multi-function hose gun, you can also connect other water consumers to the garden hose such as a sprinkler, watering systems and pressure washers.
Page 3
drinking water. The retractable garden hose is intended for transporting water from stationary installations. It must not be used to transport other liquids.Only lay the hose that has been rolled out flat on the ground. Avoid raised loops. Loops pose a tripping hazard and could cause an accident. Do not let the hose snap back by itself.
Page 4
Pack contents/parts Garden hose Wall bracket Pivot pin Connecting hose Hose piece for the tap Securing pin Spray nozzle Hose box Screw, 4x Carrying handle Acchor, 4x End stop...
Page 6
A. Selecting the installation location. Select a stable installation location with a sufficient carrying capacity. Take note of the weight of the retractable garden hose including the water in the hose (see "Specifications"). Select a location for installation where the entire swivel range of the hose box (4) of 180°...
Page 7
B. Laying out the installation materials 1.For installation on a concrete wall or masonry (see Fig. G). For unplastered walls and plaster thicknesses of up to 10 mm, use the 4 heavy-duty anchors (11,12) included in the package contents. For plaster thicknesses of over 10 mm, use 4 longer heavy-duty anchors suitable for the purpose which can be obtained from a corresponding supply store.
Page 8
NOTE: You will find an indication sticker 1 metre before the maximum length. Do not pull the hose past this point (See Fig. N) B. Winding up the hose 1.Close the spray nozzle (10). 2.Turn off the water tap. 3.Open the spray nozzle to release the water pressure Close the spray nozzle again.
Page 9
Hoses: - Length Garden hose: 100ft Connecting hose: 5ft - Diameter outer: 15 mm inner: 11 mm - Working pressure: max.10 bar (1 MPa) - Material: PVC UV resistant hose One Year Limited Warranty Supported by our professional R&D team and QC team, we provide One Year Warranty for materials and workmanship from the purchase date.
