Summary of Contents for Vivitar IR770

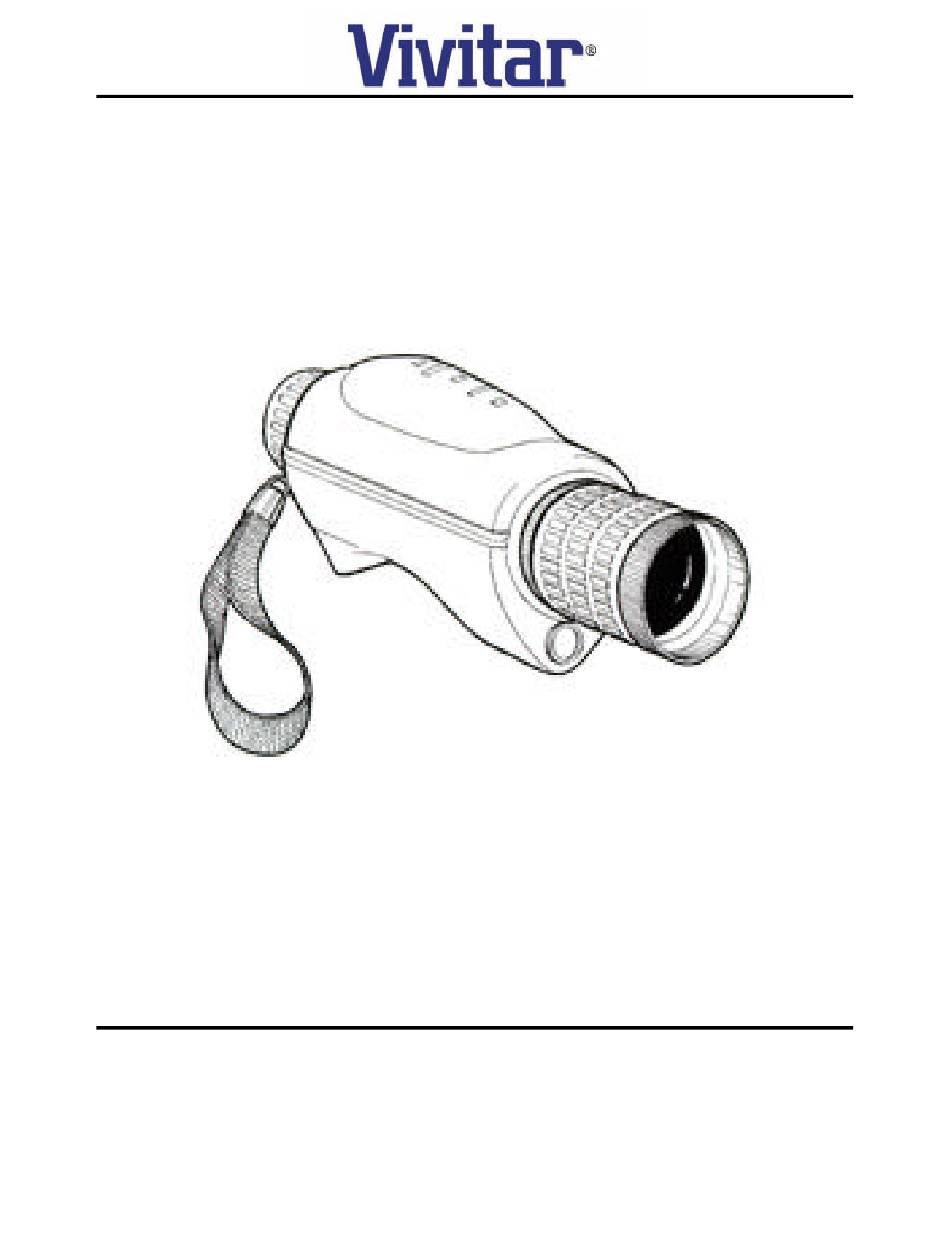

- Page 1 OPERATION MANUAL Night Eye IR770 V i v i t a r C o r p o r a t i o n 1 2 8 0 R a n c h o C o n e j o B l v d...
- Page 2 IMPORTANT INFORMATION Read prior to activation You have just purchased a complicated electronic device. To operate it properly, please read this manual carefully. Here are some common Precautions that must be noted. • NEVER expose the opened objective lens of an active unit in daylight.
- Page 3 ATTENTION! Image quality of the object, which is being observed when an image intensifier is functioning, depends mainly upon operating characters of this image intensifier. Due to this fact black spots, which are inherent in the image intensifier, may be seen in the field of view of a viewing device. Field of view is shown below.
-
Page 4: Table Of Contents
5.3Operation at night 5.4Using interchangeable lenses 5.5Using the camera / video adapter 6. Troubleshooting THANK YOU FOR PURCHASING IR770 NIGHT VISSION DEVICE. PLEASE DEMAND TO CHECK THE DEVICE FOR PROPER OPERATION WHEN BUYING IT. PLEASE READ ALL THE INSTRUCTIONS CAREFULLY... -
Page 5: Overview
Waterproof, lightweight and compact - this advanced system is one of the most affordable systems on the market. Some of the typical activities where the IR770 will be useful: boat- ing, search and rescue, law enforcement, wildlife observation, secu- rity. -
Page 6: Components
2. COMPONENTS IR770 is supplied with the following components: NAME QUANT. IR770 Carrying strap Case Lenses (85/1.5, 300/4.5, 500/5.6, 1000/10 ) (optional) Camera/video adapter (optional) Lens cover Manual 3. SPECIFICATIONS of IR770 Generation ………………………………………… …1 Magnification, X. …………………………………2.3 ± 0.2 Field of View, angl. -
Page 7: Construction
4. CONSTRUCTION 1- Body 2- Lens Focusing Ring 3- Eyepiece 4- Switch Button for the Scope 5- IR Illuminator Switch 6- IR Illuminator 7- Battery House Cover 8- Lens Cover 9- Carrying Strap 10- Low battery indicator... -
Page 8: Operating Instructions
5. OPERATION INSTRUCTIONS WARNING! NEVER OPERATE YOUR NIGHT VISION DEVICE IN DAY- LIGHT AREAS WITHOUT THE LENS COVER ON ! NEVER DIRECT THE LENS IN THE DIRECTION OF BRIGHT LIGHT! 5.1Pre-starting procedures. 1. Unpack the device. In order to replace the battery unscrew bat- tery house cover (7) and replace the battery observing the polarity indicated;... -
Page 9: Using Interchangeable Lenses
5.4 Using interchangeable lenses. The unit is equipped with PENTAX “screw type” removable lens F 50/1.2, M 42x1. It will accept most Pentax screw type lenses, or using proper adapters, many other lenses. Note: When screwing back the original lens, make sure to insert the lens all the way, to prevent humidity penetration 5.5 Using the camera/video adapter. -
Page 10: Troubleshooting
6. TROUBLESHOOTING The monocular does not work. Check that the battery is installed properly. Check the charge of the batteries. Replace if it is weak. The image does not appear in focus. Bring the inspected object to the center of the image. Turning the eyepiece focusing lever (3) adjust to achieve the clearest image on the screen. - Page 11 25°C (-13°F), the device must be warmed up to ambient temperature, from -20°C (-4°F) to +40°C (104°F) during 2-3 hours. Precaution IR770 is a precision optical instrument equipped with electronics. Therefore, it should be handled with due care. • Keep your device away from direct sunlight, impacts, dust, mois- ture, and sudden changes of temperatures.
