Chamberlain Professional Code-Guard 530-1LM Owner's Manual

NOTICE TO U. S. CONSUMERS:
Some states prohibit the service or repair of garage door openers
whch cannot be made to comply with the safety standards
contained in UL 325 (1988 revision). In order to comply with both
the letter and the spirit of these laws, this universal radio control
should not be used with any Lift-Master
Craftsman ® garage door opener manufactured prior to April 1, 1982.
To find out if your Chamberlain-made garage door opener was
manufactured prior to or after April 1, 1982, please call 1-800-528-
9131 before installing this universal radio control.
Transformer Model 85 may be required if your garage
door opener is a brand other than Lift-Master,
Chamberlain or Sears.
NOTE: Model 530-1LM is factory pre-set with matching
receiver and remote control codes. For maximum
security, erase and reprogram the receiver after
installation (see page 2). If you purchase additional
remote controls, the receiver must be programmed to
match the new remote control code (up to seven
Code-Guard™ remotes).
For maximum security and range, you must disable the
existing radio on your opener, otherwise it could still
activate your opener:
• If there is an external receiver, disconnect power to it.
• If it is an integrated receiver, either clip off the
component that feeds power to the receiver (for Lift-
Master, Sears and Chamberlain openers, see Figure 1)
or remove the tuning slug and antenna from the receiver
section.
• If you have a Lift-Master, Sears or Chamberlain opener
with a "SMART" receiver, erase the old codes by holding
down the Smart button for 6 seconds until the indicator
light turns off.
• If you have code switches, reset them to a random code
and deactivate the receiver by removing the tuning slug
and antenna.
The receiver may be installed in one of two ways:
1. Mounted directly on the door opener with clips provided
as shown on page one.
2. Attached to an inside wall of the garage with connecting
bell wire (not supplied) as shown on page two.
When installing two or more receivers in a garage, position
them at least 10 feet apart to prevent electronic
interference.
MOUNTING ON RESIDENTIAL OPENERS
Fully extend antenna wire below bottom of case as shown
in Figure 2.
Use a 2 wire connection only. Attach mounting clips to
receiver terminals 1 and 2, and to the opener terminals
used for push button controls. Plug the transformer into the
receiver as shown, and into a 120 Volt outlet.
Page two contains wall mounting instructions and
service information as well as code setting
instructions.
TM
® , Chamberlain ® , or Sears
DOWN
DOWN UP
DOWN UP LIGHT
DOWN
DOWN UP
DOWN
Model 530-1LM Code-Guard™
Universal Radio Control
To comply with FCC/IC rules, adjustment or modification of receiver and/or
transmitter is prohibited, except for changing the code setting and replacing the
transmitter battery. THERE ARE NO USER SERVICEABLE PARTS.
Disconnect power to the garage door opener before
installing the receiver.
Children operating or playing with a garage door opener
can injure themselves and others. The garage door
could close and cause serious injury or death. Do not
allow children to operate the push buttons or the remote
control transmitters.
Install the receiver (and any additional push buttons)
out of the reach of children and away from all moving
parts of the door and door hardware, but where the
RED
garage door is visible.
A moving garage door could injure someone under it.
+ 1 2 3 4 5 6 7 8 9
0
-
UP Activate the opener only when the door is properly LIGHT
RED WHT
adjusted, you can see it clearly, and there are no
obstructions to door travel.
+ 1 2 3 4 5 6 7 8 9
0
-
LIGHT
RED WHT BLK YEL
UP
Force
+ 1 2 3 4 5 6 7 8 9
0
- RED
L3
UP LIGHT
TP1
RED WHT
LIGHT
RED
UP LIGHT

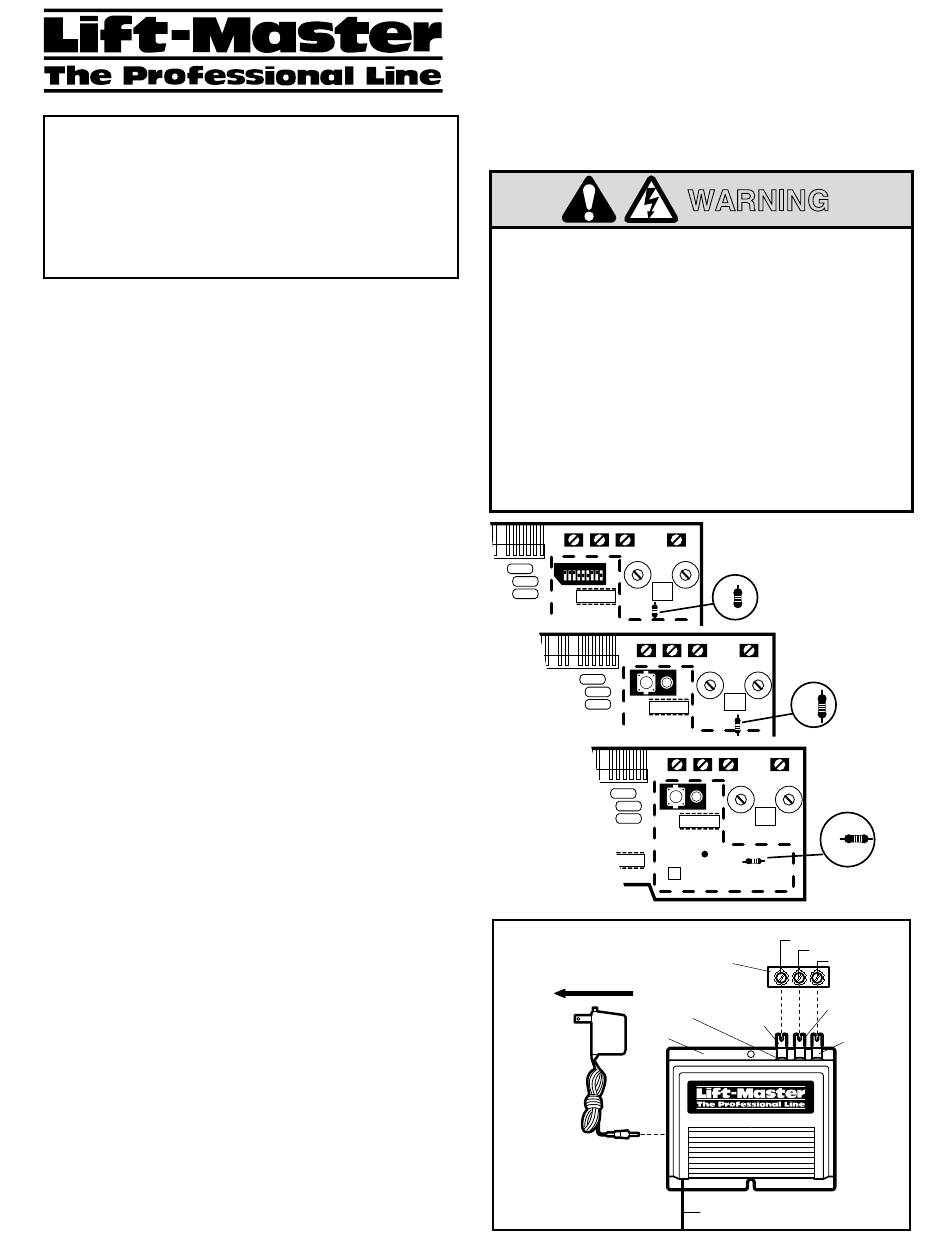

Figure 1
TERMINALS
To Outlet
Receiver
Terminals
Flange
Model 85
Transformer
Figure 2
OWNERS MANUAL
WARNING
1984-1990
WHT BLK YEL
1000 Series
UP DOWN
Force Force
BLK YEL 1984-1990
L3
L3 1000 Series
UP DOWN
Force Force
TP1
Cut
L3
1984-1990
L3
L3
1000 Series
DOWN
Force
TP1
WHT BLK YEL
1990-1992
Cut
L3
1100 Series
L3
UP DOWN
Force Force
R44
BLK YEL
1990-1992
1100 Series
R44
UP DOWN
Force Force
TP1
Cut
R44
R44
R44
TP1
1992
WHT BLK YEL
1100-4, 1200
UP DOWN
Force Force
Series
R5
R5
TP1
Radio Power
Push Button
OPENER
Common
Mounting
Mounting
Clip #2
Clip #3
Mounting
Clip #1
©
Antenna Wire Fully Extended
Cut
L3
Cut
R44
Cut
R5
