Summary of Contents for Ultimate Power UPL-48100F

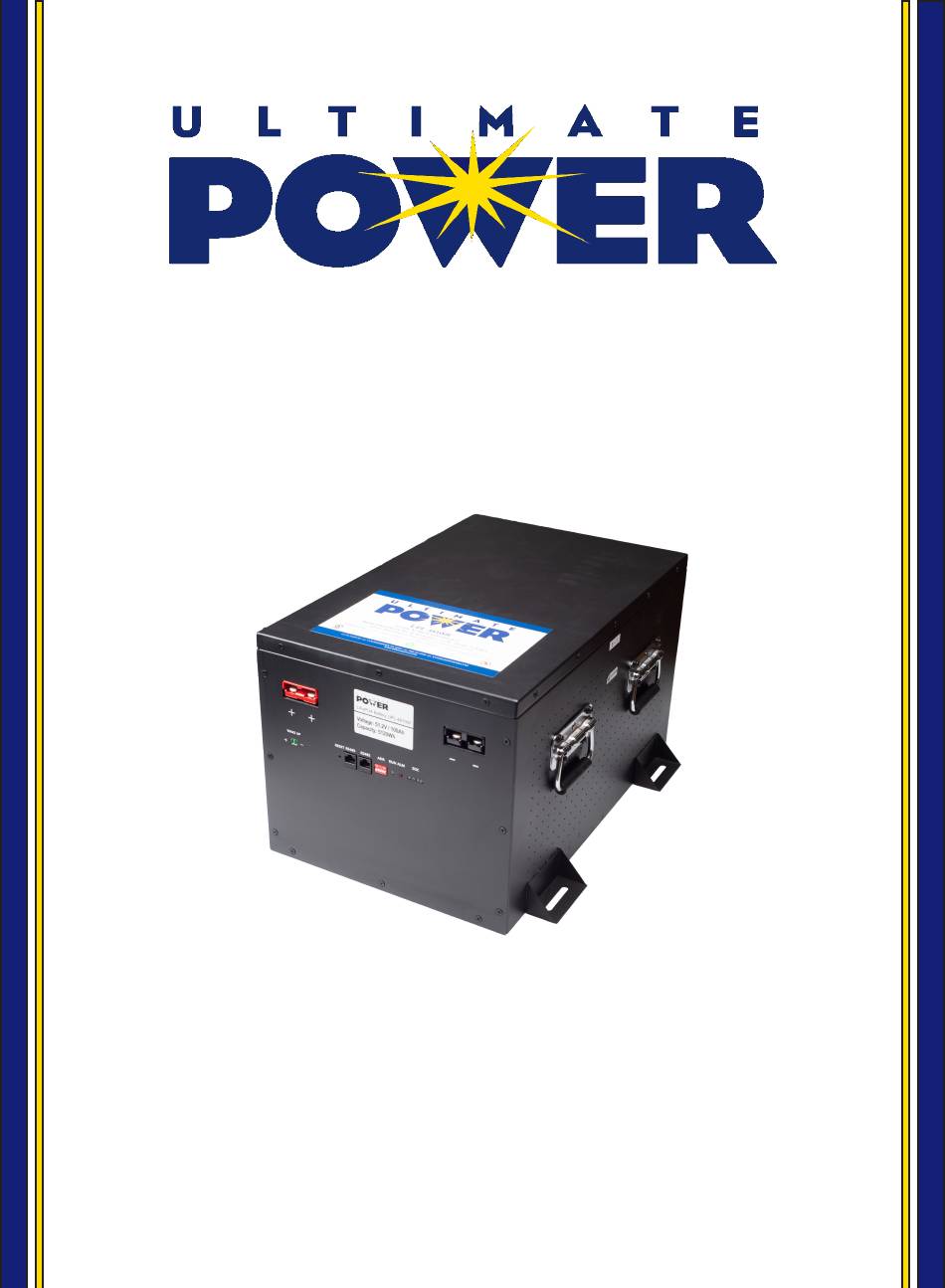

- Page 1 Lithium Iron Phosphate (LiFePO4) UPL-48100F Rec hargeable Battery Operator's Manual Operator's Manual...
-
Page 2: Table Of Contents
Table of Contents Battery Diagrams Product Information Battery Operation Battery Specifications Operating Conditions Battery Heater Function Installation Instructions Charging Instructions Disharging Instructions Series and Parallel Connection Instructions Wiring Diagram for Batteries in Parallel LED Indicators Wake Up Terminals 9VDC Connection Wake Up Terminals 12VDC Connection Warning &... - Page 3 Ultimate Power UPL-48100F Front Panel: Indicators, On/Off (Reset) Button, and Connections – –...
-
Page 4: Product Information
Product Information The battery is designed and intended for use in deep cycle applications. It is equipped with Ultimate Power's (UP) Battery Management System (BMS) which can manage and monitor battery performance during charge and discharge to ensure the safety and optimization of the battery. Common include utility trucks, emergency vehicles, RV, yacht, golf cart, solar street lights, emergency lighting, alarm system and photovoltaic energy storage. -
Page 5: Installation Instructions
Installation Instructions Please follow the vehicle/equipment manufacturer's instructions: • When replacing various types of deep cycle applications, please ensure the battery capacity is not less than the original lead-acid battery. Please check the following items for battery before installation: • Check the battery voltage with a multimeter. If <51.2V, please recharge the battery (Refer to "Charging Instruction"... -
Page 6: Series And Parallel Connection Instructions
• Please charge at an ambient temperature of -4°F to 131°F (-20°C to 55°C.) Charging below -4°F or above 131°F may cause irreversible damage to battery and/or pose a safety risk (for more details refer to "Battery Heater Function on Page 2.") •... -
Page 7: Wiring Diagram For Batteries In Parallel
3 - Batteries 300Ah 4 - Batteries 400Ah Wiring Diagram For Lithium Batteries in Parallel Copyright ©2023 Ultimate Power Company, All Rights Reserved July 18, 2023 Rev:A Note: Parallel wiring for the positive and negative connections must be the same gauge and lengths.) State of Charge and Run LED Indicators –... - Page 8 Wake up terminal connections 9VDC – –...
- Page 9 Wake up terminal connections 12VDC – –...
-
Page 10: Warning & Attention
Warning and Attention • Do not reverse the positive and negative of the battery. • Do not touch or store the electrodes of the battery with unnecessary wires or other metal materials to avoid short circuit. • Do not puncture, impact, drop or step on the battery. •... -
Page 11: Troubleshooting
Troubleshooting: Symptom Possible Causes Corrective Actions Check the circuits/working environment and confirm the load power to ensure battery Battery being protected by BMS is being charged/discharged No DC Output within Max charging/ (Tip: Check discharging current stated in the that the Specifications battery is turned on) -
Page 12: Storage & Transportation -10
Storage and Transportation Item Criteria <1 month 14°F to 113°F (-10°C to 45°C) Storage Temperature <3 months 14°F to 95°F (-10°C to 35°C) 32°F to 86°F (0°C to 30°C) >3 months Relative Humidity <75% RH 40% to ~60% • To ensure longer battery lifespan, please recharge battery every 3-6 months. •... -
Page 13: Warranty Information
Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. What Batteries Are Covered Ultimate Power (UP) provides this limited warranty for UP’s batteries purchased directly from UP or its authorized reseller that come with a limited warranty. UP’s Performance Warranty UP warrants that your battery is free of defects in material and workmanship for the duration of the warranty periods listed in the Chart below. - Page 14 Contact For more information on this limited warranty, please contact us at: Ultimate Power, Customer Service, 115 N. East Street, Coudersport, PA 16915. You may also contact UP by phone at 888-447-5920 or visit www.ultimatepower.com. – –...
- Page 15 Need additional information? Contact Ultimate Power at 888.447.5920 or email info@ultimatepower.com 115 N. EAST ST • COUDERSPORT, PA 16915 info@ultimatepower.com • 888.447.5920 • ULTIMATEPOWER.COM © UPL-48100F LiFePO4 Battery Operator's Manual • Copyright Ultimate Power Company, All Rights Reserved • July 2023 • Rev. A...
