G-Force VHA-1 User Manual

G-FORCE
Under cont rol
VHA-1
VESA Holder
for CP/SP Game Control Panels
G-FORCE Home

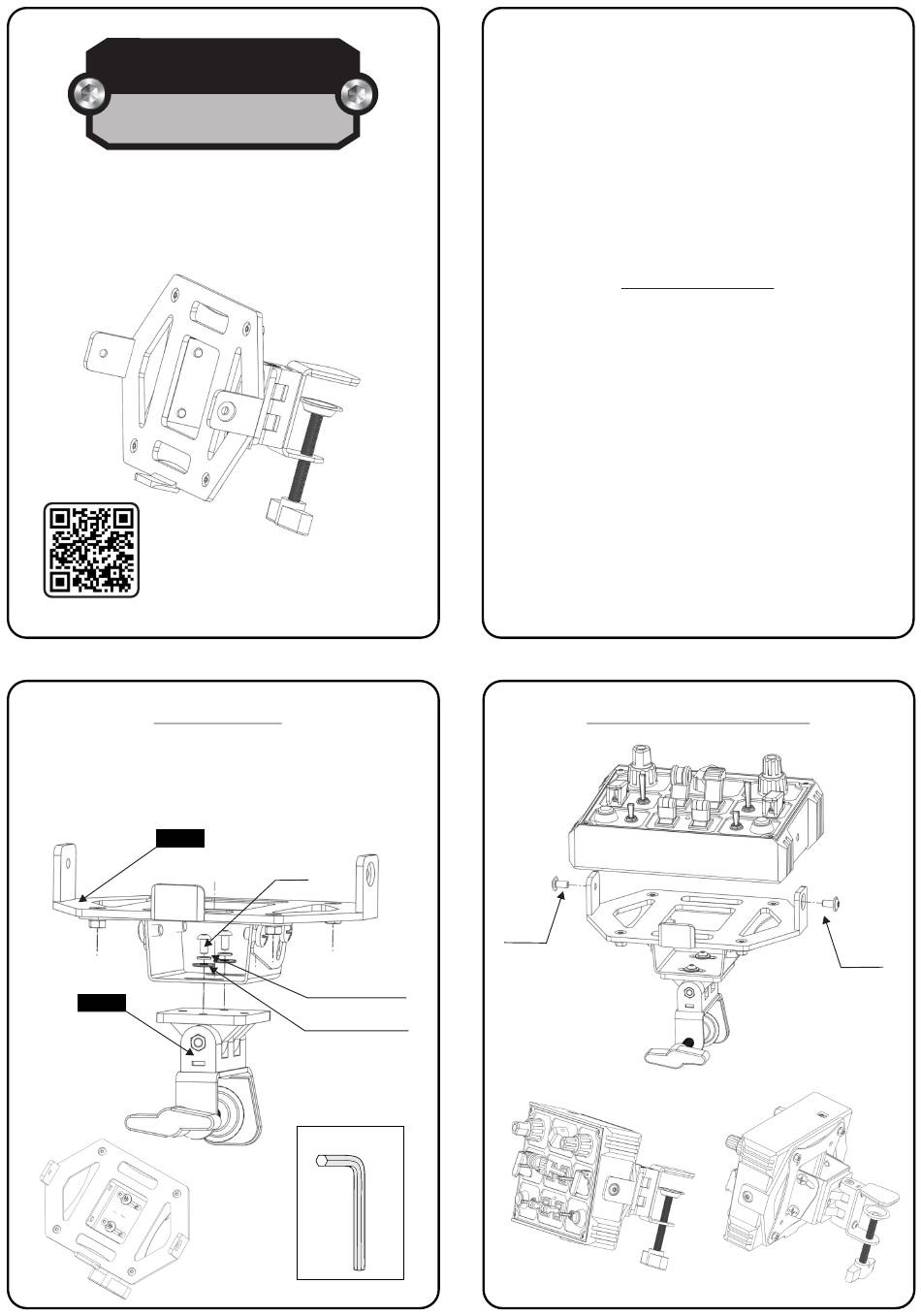

Holder assembly
The holder is delivered in a disassembled state.
Assemble the stand by connecting Part 1 and Part 2
using prepared screws M4x8, according to the
instructions on the picture Fig.1.
PART 1
PART 2
USER MANUAL
English V.1.1
M4x8
Spring washer 4mm
Washer large 4mm
Hex key 2,5
-2-
Thak you for purchasing a G-FORCE product. Our
passion is the development and production of gaming
devices for all enthusiasts of simulators and games.
G-FORCE manufactures and develops a range of
control panels for simulator and game enthusiasts. We
produce a limited number of custom devices, it is not
serial production. In our products you will find a functional
design, user-friendly controls and a quality selection of
components. We produce plastic parts using 3D printing
technology and all parts are specially designed for our
products. For more informations and news please visit
our website www.gforcecontrol.com
Product Description
VESA holder VHA-1 was designed for G-FORCE CP
and SP series gaming control panels. The holder
enables fastening with a 50 mm wide clamp, or fastening
to a System 20 aluminum construction profile with a hole
spacing of 20 mm. The stand is adjustable to different
angles in both horizontal or vertical directions. The VESA
system plate with a 100 mm hole spacing allows the
holder to be rotated 90 degrees as needed. The VESA
system allows you to use an adapter with any other
standart VESA holder with 100 mm spacing holes. The
robust, specially designed joint enables adjustment by
45 degrees in each direction.
The stand is strong and durable, made from a
combination of metal and 3D printed parts from solid
PLA.
Fixing the panel to the holder
Fig.2
M5x10
-1-
M5x10
-3-
