X4 Series
http://www.zelana.com
2566-0422
http://www.lumidor.com
Rev 1 02/2004
Portable Multi-Gas Detector
A Division of the Zellweger Luwa Group

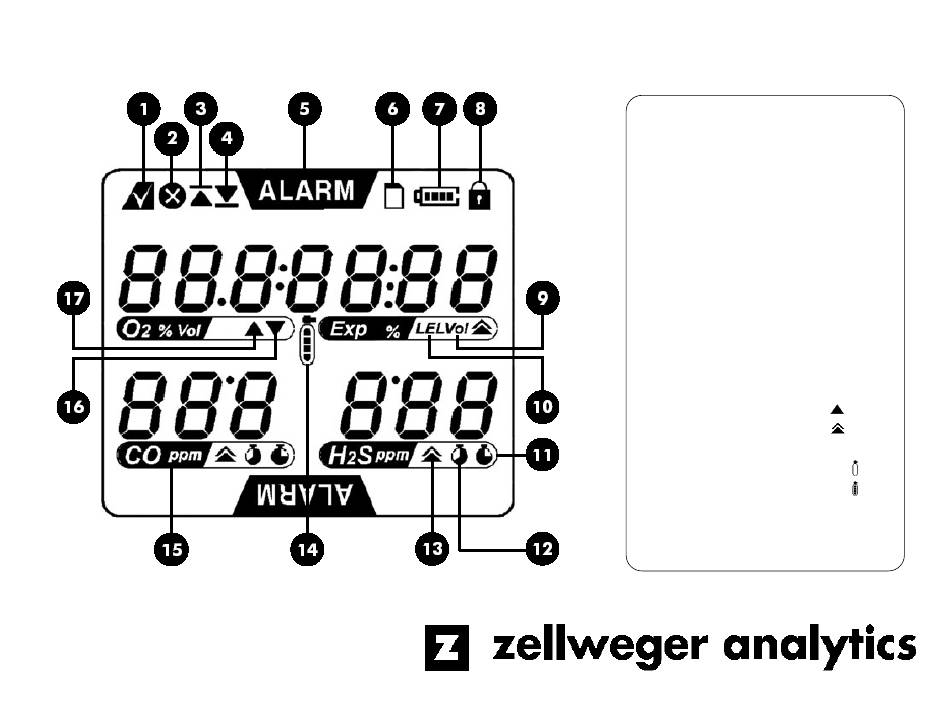

LCD Display Details
1. Test Pass Icon
2. Test Fail Icon
3. High Peak Icon
4. Low Peak Icon (for O
5. Alarm Icon
6. Data Logging Icon
7. Battery Icon
8. Pass Code Protection Icon
9. %Vol Unit Icon
10. %LEL Unit Icon
11. STEL Icon
12. TWA Icon
13. Alarm Level 1 Icon
Alarm Level 2 Icon
(for flammable and toxic)
14. Zero Calibration Icon
Span Calibration Icon
15. Gas Label Icon
16. O
Deficiency Alarm Icon
2
17. O
Excess Alarm Icon
2
only)
2
Advertisement
Summary of Contents for Zellweger X4 Series
- Page 1 Alarm Level 2 Icon (for flammable and toxic) 14. Zero Calibration Icon Span Calibration Icon 15. Gas Label Icon 16. O Deficiency Alarm Icon 17. O Excess Alarm Icon http://www.zelana.com 2566-0422 A Division of the Zellweger Luwa Group http://www.lumidor.com Rev 1 02/2004...
- Page 2 - Bottom - Caution: The purpose of this Quick Start Guide is to provide quick reference to frequently used functions of X4 series only after you read and completely understand the user and A Division of the Zellweger Luwa Group...
- Page 3 Battery icon and Test Pass icon - CALIBRATION - The X4 series must only be calibrated by qualified personnel trained by Zellweger Analytics or by a • Zellweger Analytics appointed Distributor. Warning: Use only factory supplied calibration gas for calibration. Accurate calibration can be achieved only if specific concentrations of the correct gases are used.
- Page 4 • Remove the battery holder from the detector and remove the memory card from the detector. • Replace the memory card with the data contacts side facing upwards. Warning: Use only approved memory cards, part # 2566-0435, which are available from Zellweger Analytics. Use of any other manufacturer or type will violate intrinsic safety requirements.
