Summary of Contents for URVOLAX UR65X

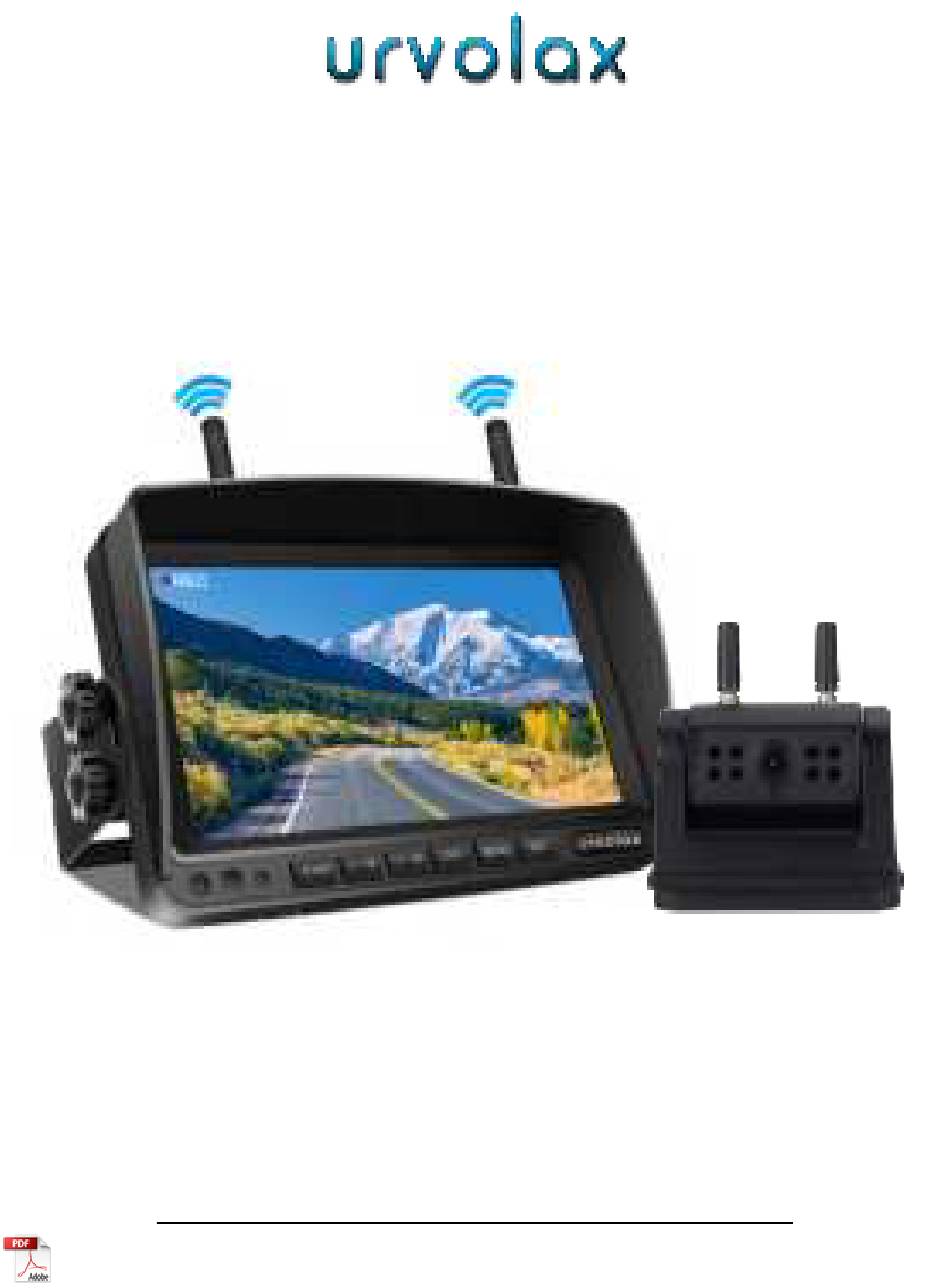

- Page 1 DIGITAL WIRELESS BACKUP CAMERA SYSTEMS User Manual / Installa�on Instruc�ons UR65X Please read this manual thoroughly before opera�ng the device, and keep it for future reference. Please Do Bench Test before Installa�on in Vehicle...
-
Page 2: Table Of Contents
Contents 1. Introduc�on..................1 2. What’s in the Box................2 3. Monitor Opera�on...............3-11 4. Camera Opera�on..............11-12 5. Remote Control Key Opera�on............13 6. Installa�on Tool................14 7. Connec�on Method.................15 8. Specifica�on..................16 9. Troubleshoo�ng................17 10. Warranty Card................18... -
Page 3: Introduc�On
1.Introduc�on Thanks for purchasing URVOLAX Digital Wireless Backup Camera Systems! With this manual, you will be able to properly install and operate the unit. Digital Wireless Connec�on - the product adopts latest car point to point wireless connec�on technology, there is no interference with other wireless devices. -
Page 4: What's In The Box
2.What’s in the Box ❶ ❷ ❸ ❹ ❺ ❻ ❼ ❽ ❾ ❿ 1. 7 inch IPS Monitor 7. User Manual 2. Backup Camera 8. Power cable 3. Monitor U-shaped bracket 9. Antenna 4. Monitor Swivel Head bracket 10.U-shaped bracket Installa�on Kit 5. -
Page 5: Monitor Opera�On
3.Monitor Opera�on Bu�on Func�on POWER Turn the monitor ON/OFF Brightness "-", Adjust se�ngs, Long press 8S to flip the menu Brightness "+", Adjust se�ngs Switch channel 1.Menu se�ng 2.Back to previous page MENU 3.Long press to enlarge X1 X1.5 X2.0 X3.0 1.Confirm key 2.Se�ng SD card to start/pause recording 3.Long Press for Parking Line Adjustment... - Page 6 3.Monitor Opera�on MENU ※PAIRING 1.Long press to power on the camera, it will enter one minute pairing mode. (The infrared lights will turn on when cover the lens). NO SIGNAL 2."CH-" to select the channel 3. "MENU""PAIRING""SEL" to to be pairing confirm connec�on PAIRING START 4.
- Page 7 3.Monitor Opera�on ※PICTURE Press "SET" to confirm the choice, and adjust the "BRIGHTNESS" "CONTRAST""HUE" by "↑""↓" ※MIR-FLIP The image can be rotated for viewing when the camera is on different direc�on.
- Page 8 3.Monitor Opera�on ※MODE Different display mode for split screen. ※CAM-SETUP If turn OFF the camera, it will not display when switch channel at home page. SCANTIME: The �me (seconds) for the cameras switching automa�cally. Only work when the AUTOSCAN is ON. AUTOSCAN: Turn ON to switch the camera image automa�cally.
- Page 9 3.Monitor Opera�on ※SYSTEM DELAY TIME: System se�ng Only, will not influence the image transmission, please no need to adjust this value. DEFAULT: All the se�ng will be back to default when the device reboot. ※PLAY Playback the recording videos, each video clip is one minute. The remianing storage space can be checked on the top of this page.
- Page 10 3.Monitor Opera�on ※RECORD REWRITE: The video will be loop recording by rewri�ng the oldest files when the memory card is full. FORMAT: Format the memory card.
- Page 11 3.Monitor Opera�on ※Reversing line Adjustment Long Press "SEL" to "Ver�cal" and adjust by "SEL" to "Horizontal" and adjust by "SEL" to "Width" and adjust by...
- Page 12 The format alloca�on unit of the micro SD card should be set in exFAT 32/64KB, other value is not compa�ble for the recording func�on. UNLOCK If you need free adapter and micro SD card, please feel free to service03@urvolax.cn contact us: 2.SD Card Status Func�onal...
-
Page 13: Camera Opera�On
3.Monitor Opera�on 3. "SEL" to start/stop recording 4.Camera Opera�on ※Turn ON/OFF by long press the power bu�on Camera ON: The red dot at the le� side will light on first, then the yellow dots will light on to show the remain power, and then enter the pairing mode for one minute, the eight infrared lights will turn on when cover the lens or in the dark. - Page 14 4.Camera Opera�on ※Please make sure to a�ach both TWO antennas to the camera and monitor accordingly, otherwise the signal transmission will be influenced. 433MHz 2.4G 2.4G 433MHz ※Recharge by TYPE-C usb ※The camera angle can be cable (included) adjusted by loosing the bu�on at the right side.
-
Page 15: Remote Control Key Opera�On
5.Remote Control Key Opera�on Confirm, Start/ Turn the monitor pause recording ON/OFF Turn the reversing line ON/OFF Menu Le�/reduce Right/ increase adjustment adjustment Switch channel Display CH1 image Display CH2 image Display CH3 image Display CH4 image ※Please operate the remote control to the signal source of the screen... -
Page 16: Installa�On Tool
6.Installa�on Tool 1.Removable Sunshade 2.Op�on 1 to mount the monitor: U-shaped bracket 3.Op�on 2 to mount the monitor: Swivel Head bracket 4. Magne�c iron piece If the posi�on you would like to install can not a�ract the magne�c camera,please s�ck the included magne�c iron piece on the specific posi�on for a�aching the camera. -
Page 17: Connec�On Method
7.Connec�on Method 433Mhz port 2.4G port Car charger connect to wireless receiver in the monitor Built in battery “+”ACC/Fuse/radio “-” Super attractive magnet... -
Page 18: Specifica�On
8.Specifica�on Power Supply DC12 to 36V Wireless Frequency 2.4 GHz 2.4G Wireless network range 2403-2480MHz Wireless Range 300m(open area) Delaying Time <200ms Opera�ng temperature -20°C ~ 80°C CAMERA Image Sensor 1/3 inch Waterproof Ra�ng IP69K 130°[H] 170°[D] View Angle 1000TVL Camera Pixel Charging voltage MONITOR... -
Page 19: Troubleshoo�Ng
9.Troubleshoo�ng Problem Solu�on Monitor Won’t Check the cigare�e lighter has 12-36V DC Output turn on Check the fuse in the Cigare�e socket adapter Camera and Check if the camera is receiving power Monitorwon’t Make sure to follow the instruc�ons to operate the pair Pairing Check if the camera and monitor antennas are... -
Page 20: Warranty Card
Please scan the QR code above to activate the 1-year warranty within 2 WEEKS upon product receipt. Should you have any general or technical questions about this product, please feel free to contact us as following: CUSTOMER SUPPORT Email: service03@urvolax.cn service02@urvolax.cn Company TEL:(0086)769 2198 6525...
