Shaman PS-23A Quick Start Manual

Shaman PS-23A Net Adapter
Article no.: 00046167
Precautions
1 ) Read these instructions before operating the unit
2 ) Please heed all safety warnings and keep these instructions
for future reference. Follow all instructions
4 ) Do not use this device near water or moisture
5 ) Clean only with dry cloth
6 ) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus that produce heat
) Only use attachments/accessories specified by the manufacturer.
7
8 ) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as liquid has been spilled or objects have fallen into the
device, the adapter been exposed to rain or moisture or does not
operate normally.
Specifications
Shaman PS-23A: AC/DC Net adapter for effect pedals
Input: 100-240V/AC 50-60Hz
Output: 9V/DC – 2000mA
Polarity: Inner = (-), Outer = (+)
Certifications: CE (RoHS, EMC, LVD, ErP)
Dimensions: 85mm x 47mm x 32mm (LxBxH)
Weight: 135 gr
Musikhaus Kirstein GmbH
Bernbeurener Str. 11 / 86956 Schongau / Germany
Phone: 0049-8861-909494-0 Fax: 0049-8861-909494-19

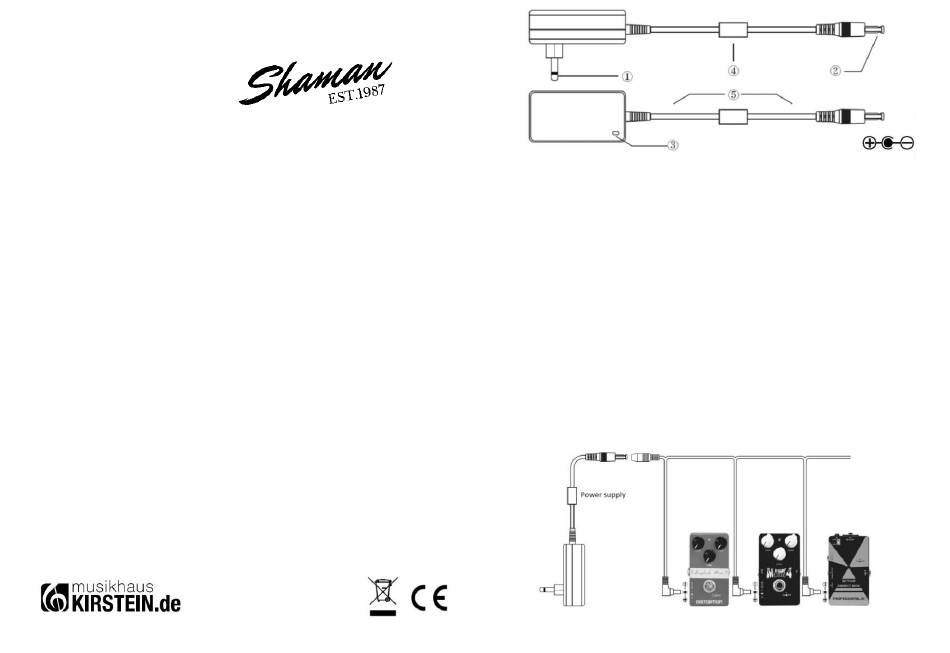

1. Input jack
Connect the adapter with a net socket. Note the local AC voltage specification.
2. Output connector
Outer diameter 5mm / Inner diameter 2.1mm. Before power on please check
the polarity off all effect pedals you want to supply. In general effect pedals work
with polarity (-) inner, (+) outer contact. Wrong polarity can damage your effect
pedals.
3. Power LED indicator
LED is ON when adapter is supplied by input AC voltage
4. Noise filter
Common mode filter with strong anti-interference capabilities to avoid noise
5. Output Cable
1.2m low voltage 9V/DC output
You can use the multi cable (in accessory) to supply up to 8 effect pedals
