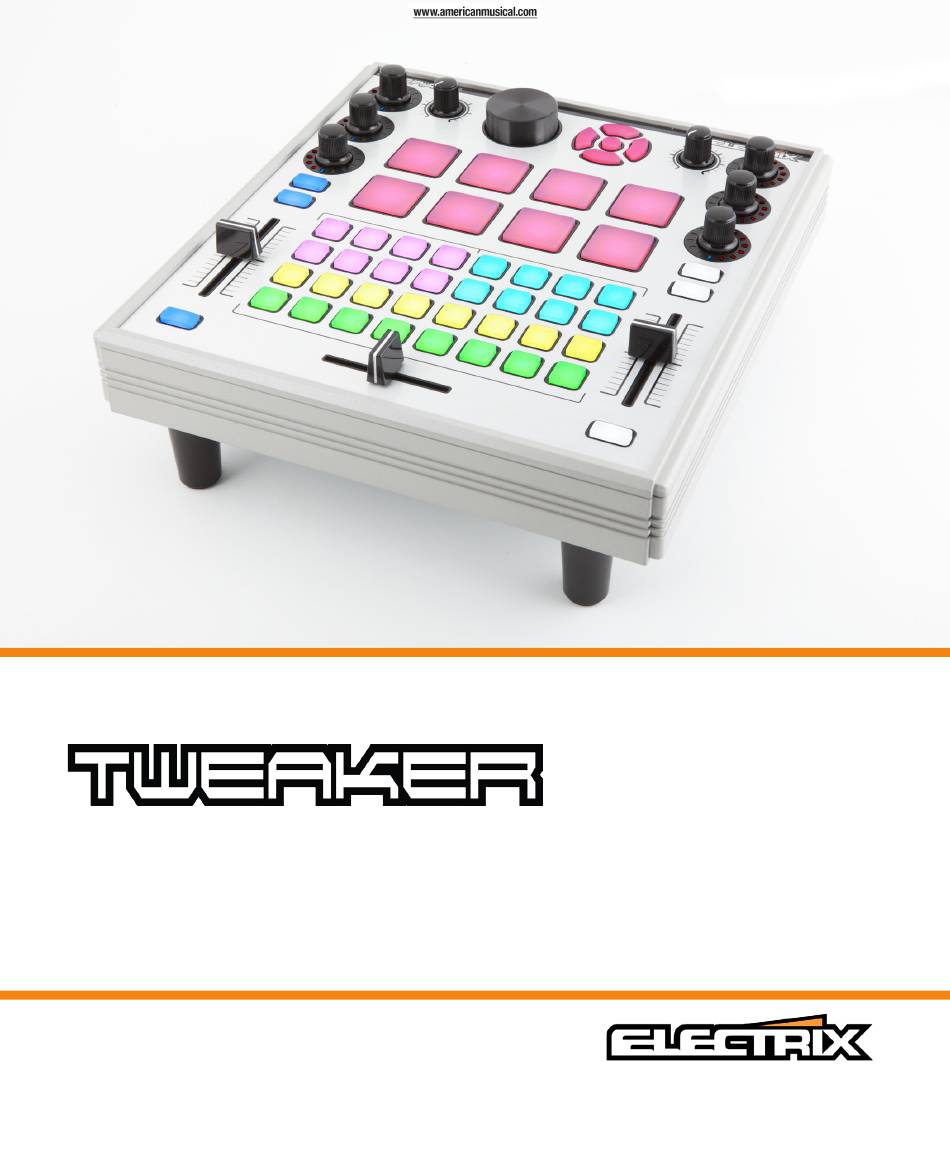

  • Page 1 TRAKTOR REFERENCE GUIDE WWW.ELECTRIXPRO.COM...

  • Page 2: Table Of Contents

    Traktor Reference Guide Table of Contents Getting Started with Traktor 2 Traktor LE 2 Traktor Pro 2 Traktor LE 2 Mapping Details Navigation Mixer Grid Pads Traktor Pro 2 Mapping Details Navigation Mixer Grid Pads MIDI Notes...

  • Page 3: Getting Started With Traktor

    Running the Setup Wizard The Setup Wizard will help you setup Traktor to work with TWEAKER. Connect TWEAKER to a USB port on your computer before launching Traktor. 1. Select Start Setup Wizard in the Help menu of the Application Menu Bar (to see this bar, Fullscreen mode must be deactivated).

  • Page 4: Traktor Pro

    3. Open the Preferences window and click on the Import button at the bottom of the window. 4. Navigate to the TWEAKER’s .tsi file that you just saved in the settings folder and click Open. 5. Once the mapping is loaded all LED’s on the TWEAKER should light up. TWEAKER is ready for use with Traktor.

  • Page 5: Traktor Le 2 Mapping Details

    2. Traktor LE 2 Mapping Details 2 Traktor LE 2 Mapping Details PAGE UP TURN: SCROLL LIST FILTER FILTER BUTTON: TURN: HI EQ BUTTON: TURN: HI EQ /SCROLL TREE GAIN GAIN LOAD LOAD ENCODER: PUSH: ENCODER: PUSH: PUSH: SHIFT [CUE LEVEL] [CUE MIX] RING: KILL...

  • Page 6: Navigation

    2. Traktor LE 2 Mapping Details 2.1 Navigation 2.2.1 Shift The Shift button gives access to secondary functions on many of the TWEAKER’s control. 2.2.2 Browsing The large navigation encoder scrolls through the library. Hold Shift to browse the library tree.
  • Page 7 2. Traktor LE 2 Mapping Details By default, the faders are volume faders. They can also be used to seek through a track while holding Shift. Loop / FX (Magenta) Turning the bottom encoder selects the loop size. Pushing it sets a loop. The middle encoder controls the Dry/Wet signal.
  • Page 8 2. Traktor LE 2 Mapping Details Pitch (Yellow) Pitch Mode, a third control mode, is also available but is considered an “emergency” feature and can only be accessed by holding Shift while pressing the Control Modes buttons. This goes directly to pitch mode, no matter which mode you are currently in.

  • Page 9: Grid

    2. Traktor LE 2 Mapping Details The volume faders become pitch faders. Moving the fader on either channel automatically disables beat sync on that deck. Passing the center click while holding Shift will reset the pitch to zero. Turning the top encoder sets the tempo range. Pushing it resets the range to 8%.

  • Page 10: Pitch Bending

    2. Traktor LE 2 Mapping Details Half cuts the current loop length in half and Double buttons doubles. Pressing the active loop button exits the loop. 2.3.3 Pitch Bending Pitch Bend up and down buttons are provided. Select the “Tempo Sync” option in the preferences if you want to be able to pitch bend while Sync is on.
  • Page 11 2. Traktor LE 2 Mapping Details 2.4.2 Backspin On the fourth pad of each deck, we created a backspin effect using a combination of mappings. The backspin takes advantage of the pad’s pressure sensitivity. So applying more pressure will slow and pause the record.

  • Page 12: Traktor Pro 2 Mapping Details

    3. Traktor Pro 2 Mapping Details 3 Traktor Pro 2 Mapping Details PAGE UP TURN: SCROLL LIST FILTER FILTER BUTTON: TURN: HI EQ BUTTON: TURN: HI EQ /SCROLL TREE GAIN GAIN LOAD LOAD ENCODER: PUSH: ENCODER: PUSH: SHIFT PUSH: [CUE LEVEL] [CUE MIX] RING: KILL...

  • Page 13: Navigation

    3. Traktor Pro 2 Mapping Details 3.1 Navigation 3.3.1 Shift The Shift button gives access to secondary functions on many of the TWEAKER’s control. 3.3.2 Browsing The large navigation encoder scrolls through the library. Hold Shift to browse the library tree.
  • Page 14 3. Traktor Pro 2 Mapping Details 8 By default, the faders control deck volume. They can also be used to scroll through a track while holding Shift. Loop (Magenta) BUTTON: TURN: MOVE SIZE BUTTON: TURN: MOVE SIZE ENCODER: PUSH: MODE ENCODER: PUSH: MODE /TOGGLE PANELS...
  • Page 15 3. Traktor Pro 2 Mapping Details 8 Turning the middle encoder selects the Move Size. 8 Pushing the middle encoder sets an 8-bar backwards loop. Shift navigates up through the advanced panels 8 Turning the bottom encoder selects the Loop Size. 8 Pushing it sets a loop.
  • Page 16 3. Traktor Pro 2 Mapping Details 8 The 3 encoders are effect button 1-3 (push) and effect knob 1-3 (turn). 8 Pushing the top encoder while holding Shift toggles the effect unit between group and single. 8 Holding shift and turning an encoder selects its effect. 8 The faders become Dry/Wet controls, with dry at the top, and wet at the bottom.

  • Page 17: Grid

    Passing the center while holding Shift will reset the pitch to zero (in case the TWEAKER’s fader position is different from the pitch fader position in Traktor). 8 Turning the top encoder scrolls through the pitch fader ranges.

  • Page 18: Pads

    If you plan to create your own mappings or edit this one, note that Traktor transposes MIDI Note messages up one octave from the TWEAKER’s mapping. So all notes are one octave higher in Traktor than shown on TWEAKER’s MIDI map (i.e. C#-2 on TWEAKER is equal to C#-1 in Traktor).
  • Page 19 Mixware, LLC. Electrix and the Electrix logo are registered trademarks of Mixware, LLC. Ableton is a trademark of Ableton AG. Traktor is a registered trademark of Native Instruments GmbH. Serato is a trademark of Serato Audio Research. Mac and Mac OS are trademarks of Apple Inc., registered in the U.S.
