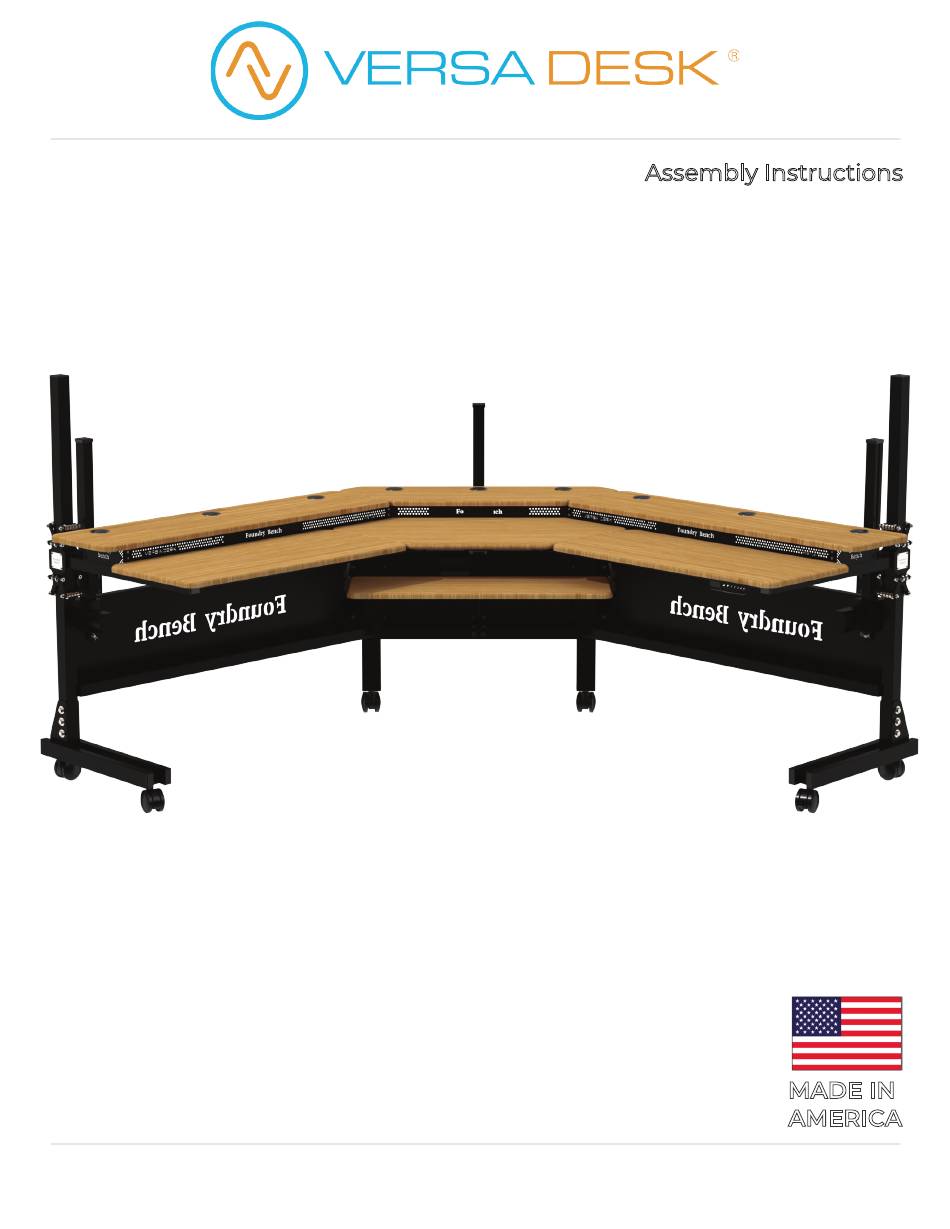

VersaDesk Foundry Bench FBC Assembly Instructions Manual

Foundry bench corner standing desk
Hide thumbs

Advertisement

Table of Contents

Foundry Bench Corner Standing Desk
FBC
How can we improve our assembly instructions?
Your comments and suggestions are important to us.
Please e-mail us at: support@versaproducts.com
14105 Avalon Boulevard, Los Angeles, CA 90061 | Tel 800-465-1660 x1 | Fax 310-353-7109
www.Versatables.com
Page 1 / 25
Assembly Instructions
REV 03282025
MADE IN
AMERICA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Foundry Bench FBC and is the answer not in the manual?

Questions and answers

Related Manuals for VersaDesk Foundry Bench FBC

Summary of Contents for VersaDesk Foundry Bench FBC

  • Page 1 Foundry Bench Corner Standing Desk Assembly Instructions REV 03282025 How can we improve our assembly instructions? MADE IN Your comments and suggestions are important to us. AMERICA Please e-mail us at: support@versaproducts.com 14105 Avalon Boulevard, Los Angeles, CA 90061 | Tel 800-465-1660 x1 | Fax 310-353-7109 www.Versatables.com Page 1 / 25...
  • Page 2 REV 03282025 Parts Bamboo Surfaces Steel Support Lower Center Surface (1 pc) Long Cross Support (2 pc) Leg Upright (2 pc) Lower Side Surface (2 pc) Foot (2 pc) Moving Beam (2 pc) https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-print Upper Center Shelf (1 pc) Upper Side Shelf (2 pc) Center Beam (1 pc) Corner Pillar (2 pc)
  • Page 3 REV 03282025 Parts Steel Support Metal Panels Motor Mount Bracket (2 pc) Back Panel (2 pc) Center Front Panel with USB (1 pc) Shelf Bracket (2 pc) Side Front Panel (2 pc) Back Center Panel (1 pc) Short Cross Support (1 pc) Electronics code-labels/#:~:text=How%20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202 https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-...

  • Page 4: Additional Tools Required

    REV 03282025 HJC4S Power Box (1 pc) Power Cord (1 pc) Extension Cord (1 pc) Hardware Caster (6 pc) 50mm Furniture Bolt (7 pc) 12mm Furniture Bolt (4 pc) 20mm Furniture Bolt (52 pc) 2 Brake, 4 No Brake 1/4-20 x 1/2” 8-32 x 3/4 Flat 3/8-16 x 2 1/2”...

  • Page 5: Back Panels

    REV 03282025 Assembly Step 1 Leg Uprights Attach the Leg Upright to the Foot using Leg Upright (3) 3/8-16 x 2 1/2 Hex Bolts, (3) 3/8-16 Washers and (3) 3/8-16 Hex Nuts as shown. Use the Bracket must be towards the back included wrenches to tighten the bolts.
  • Page 6 REV 03282025 Assembly Step 3 Casters Using the same position as the previous Caster w/ Brake step, insert (2) Casters into the Foot as shown. Repeat this step for the other Leg Upright. Please note: When lifting the assembled parts, make sure the two casters with brakes have the brake ON to avoid the parts from sliding.
  • Page 7 REV 03282025 Assembly Step 5 Corner Pillars Attach both Corner Pillars to the Center Back Panel using Casters w/ no brake (8) 20mm Furniture Bolts. Then, insert (2) Casters with no Corner Pillars brakes to each one of the Corner Pillars as shown. Center Back Panel 20mm Furniture Bolt...
  • Page 8 REV 03282025 Assembly Step 7 Moving Beams Moving Beam Slide (2) Moving Beams down the Leg Uprights until the beams touch the Back Panel as shown. Leg Upright Step 8 Actuators Align the Actuator with both the Moving Beam Moving Beam and Leg Upright as shown.

  • Page 9: Center Beam

    REV 03282025 Assembly Step 9 Center Actuator Align the Center Actuator with the Motor Mount Brackets on the Center Back Panel. You will use (1) Clevis Pin and (1) Cotter Pin to secure the actuator to the brackets as shown. Clevis Pin Center Actuator Center Back...
  • Page 10 REV 03282025 Assembly Step 11 Short Cross Supports Attach the Short Cross Support to the end of the Center Beam using (2) 20mm Furniture Bolts as shown. 20mm Furniture Bolt Step 12 Long Cross Supports Place (2) Long Cross Supports in between the Moving Beams and Short Cross Supports as shown.
  • Page 11 REV 03282025 Assembly Step 13 Center Surface Attach the Center Front Panel to the Center Surface using (4) Truss Head Screws as shown. The surface will sit on top of the Front Panel. Truss Head Screw Step 14 Center Surface Place the Center Surface over the Center Beam and Short Cross Supports.
  • Page 12 REV 03282025 Assembly Side Front Panels Step 15 Attach the Side Front Panels to the Center Front Panel and Moving Beams using (8) Flat Head Screws as shown. 8-32 x 3/4 Flat Head Screw Step 16 Side Surfaces Align the Side Surfaces with the cross supports and front panels.
  • Page 13 REV 03282025 Assembly Step 17 Center Shelf Align the Center Shelf with the Front Panel and Center Beam. Secure the Center Shelf to the mentioned parts using (6) Truss Head Screws as shown. Truss Head Screw Step 18 Shelf Brackets Attach (2) Shelf Brackets to the Center Shelf using (6) Truss Head Screws.
  • Page 14 REV 03282025 Assembly Step 19 Side Shelfs Align the Side Shelf with the Moving Beam and Side Front Panel. Then use (7) Truss Head Screws to attach the parts together as shown. Repeat for other side. Truss Head Screw Step 20 Link Brackets Place (2) Link Brackets where the Side Surfaces meet the Center...

  • Page 15: Control Switch

    REV 03282025 Assembly Step 21 Control Switch Attach the Switch Bracket to the Side Surface on the right side using (2) 8A x 5/8” Wood Screws as shown. 8A x 5/8 Wood Screw Step 22 Complete Assembly is now complete. Please refer to the next page to complete the wiring of the electronics.
  • Page 16 REV 03282025 Assembly Wiring Front View of Foundry Bench Corner Standing Desk Left Right Center Actuator Actuator Actuator Note: Control Box can be placed on the Center Back Panel https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-print 20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20 %20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20Zenstores. https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:text=Ho https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/# 14105 Avalon Boulevard, Los Angeles, CA 90061 | Tel 800-465-1660 x1 | Fax 310-353-7109 www.Versatables.com Page 16 / 25...
  • Page 17 REV 03282025 Assembly Foundry Wiring Place the control box inside the center panel as shown before beginning the wiring steps. Connect the Left Actuator directlly to the L1 port on the control box. Untie the twist tie to fully extend the actuator wire.
  • Page 18 REV 03282025 Assembly Foundry Wiring Similarly to L1, Connect the Right Actuator directlly to the L3 port on the control box. Untie the twist tie to fully extend the actuator wire. Connect the Center Actuator directly to the L2 port on the control box. %20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels% n%20Zenstores.
  • Page 19 REV 03282025 Assembly Foundry Wiring Connect the end of the extension cable (circle in red) to the HC port of the control box. Extend the cable through the side panel towards the control switch as shown and connect the corresponding end of the control switch. the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20Zenstores.
  • Page 20 REV 03282025 Assembly Foundry Wiring Connect the end of the HJC4S Power Box to the DC port of the control box. Similar to the previous step, extend the Power Box through the side panel towards the control switch. Connect the end of the Y-Split cable to a 12V port on the Power Box and another end to corresponding end of the control switch.
  • Page 21 REV 03282025 Assembly Foundry Wiring Locate the wire at the back of the Center Panel connected to the USB Charger. Connect the end to the 12V port on the Power Box. Lastly, connect one end of the Power Cord to the AC port in the control box and connect the other end to any power outlet.
  • Page 22 REV 03282025 Assembly LED Wiring Use the diagram below as refrenece for the following steps: Note: The LED Strips are pre-installed on the wood surfaces. The LED Strip Wiring begins here. There is nothing to connect. Continue to Connect the Female and Male ends of the barrel plug. 20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20 https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:text=Ho https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/...
  • Page 23 REV 03282025 Assembly LED Wiring & Locate the Female end barrel plug in location and locate the Male end barrel plug in location . Then simply connect both ends of the barrel plugs together. Female End in Location Male End in Location Connect Both Ends Ensure the Female and Male ends go through the open space between the bamboo surface and metal frame.
  • Page 24 REV 03282025 Assembly LED Wiring Locate the Female End barrel plug in Location . Connect this end with the Male End barrel plug found on the Y-Split cable. Connect Both Ends Female End in Location Male End on Y-Split Cable Your LED Lights are now ready to be used! Press the light symbol on the control switch to turn on/o the LEDs.
  • Page 25 REV 03282025 Control Switch Operation Instructions Push & Hold Both for Bluetooth Pairing Display Set Memory Setting Up Down M1 M2 M3 LED Light Control https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-roy abels/#:~:text=How%20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20 %20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels% in%20Zenstores. https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:text=H https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcod %20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels% https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:tex e%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20Zenstores.
  • Page 26 REV 03282025 Add-on: Sit to Stand Keyboard Arm and Tray Tools Parts 8A x 5/8” Phillips Head Screwdriver Wood Screw Left Keyboard Bracket Right Keyboard Bracket Bamboo Keyboard Assembly Step 1 Identify the mounting holes on the bottom side of the surfaces marked Keyboard in red circles below.
  • Page 27 REV 03282025 Add-on: Sit to Stand Keyboard Arm and Tray Assembly Step 2 Slide the Bamboo Keyboard into the Keyboard Brackets as shown. Bamboo Keyboard Keyboard Bracket https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-ma ext=How%20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%2 ext=How%20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%2 https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#: https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#: ure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20Zenstor nstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:text=How%20to%20con https://www how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:text=How%20to%20con gure%20the%20Z printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20Zenstores.
  • Page 28 REV 03282025 Add-on: CPU Holder Tools Parts Phillips Head Screwdriver CPU Holder Mounting Bracket Hex Head Screw 1/4-20 x 13mm 3/8-16 x 2 1/2” 3/8-16 8A x 5/8” Truss Hd Screw Hex Bolt Hex Nut Wood Screw Assembly Step 1 Align the top frame of the CPU Holder with the 4 holes on the mounting brackets.
  • Page 29 REV 03282025 Add-on: CPU Holder Assembly Step 2 Decide which side you would like to place the CPU Holder on. The CPU Holder can be mounted on either one of the moving beams. Moving Option Option Beam Step 3 Align the holes of the mounting brackets with the holes on the moving beam as shown in the upper right corner.
  • Page 30 REV 03282025 Add-on: CPU Holder Assembly 3/8-16 x 2 1/2 3/8-16 Hex Hex Bolt Top Frame https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-print Side Frame Bottom Frame https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/ 20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%2 %20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20Zenstores. https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:text=Ho 14105 Avalon Boulevard, Los Angeles, CA 90061 | Tel 800-465-1660 x1 | Fax 310-353-7109 www.Versatables.com Page 3 / 5...
  • Page 31 REV 03282025 Add-on: CPU Holder Assembly Step 6 Secure the side frame to the top frame using (2) Head Hex Screws as shown. 8A x 5/8 Wood Screw Step 7 code-labels/#:~:text=How%20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202 https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d- https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-print Place your CPU into the CPU Holder. Adjust the CPU Holder to ensure that your CPU is secured properly.
  • Page 32 REV 03282025 Add-on: CPU Holder Adjustability %20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels% bels/#:~:text=How%20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20b n%20Zenstores. https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:text=Ho https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-roy https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-lab 20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20 20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20 https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:text=Ho https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:text=Ho e%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20Zenstores. %20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels% https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:tex https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcod 14105 Avalon Boulevard, Los Angeles, CA 90061 | Tel 800-465-1660 x1 | Fax 310-353-7109 www.Versatables.com Page 5 / 5...
