Kistler DTI375.TH-5% Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction
Manual
Data Recorder
Type DTI375.TH-5%
DTI375.TH_012-054e-08.23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTI375.TH-5% and is the answer not in the manual?

Questions and answers

Summary of Contents for Kistler DTI375.TH-5%

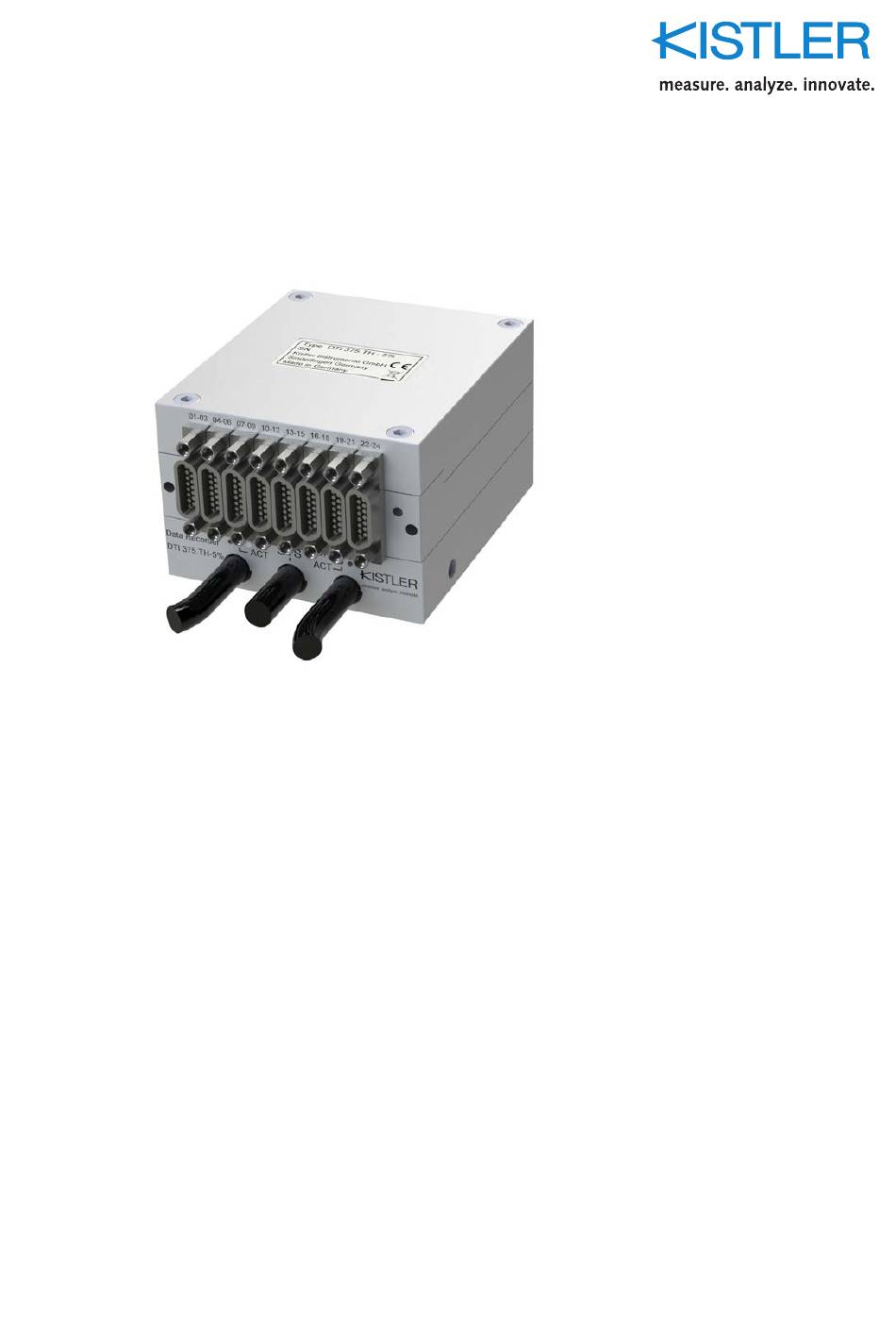

  • Page 1 Instruction Manual Data Recorder Type DTI375.TH-5% DTI375.TH_012-054e-08.23...
  • Page 3 Information in this document is subject to change without notice. Kistler reserves the right to change or improve its products and make changes in the content without obligation to notify any person or organization of such changes or improvements.

  • Page 4: Table Of Contents

    Data Recorder Type DTI375.TH-5% Content Introduction ..........................3 Disposal instructions for electrical and electronic equipment ..........4 Warning symbols and their meaning ..................4 Software Upgrades and Updates ..................5 Protection rating .........................5 Installation and operation ......................6 Installation and operation ....................6 Mounting the Type DTI 375.TH-5% in the Dummy .............7 How to connect Type DTI375.TH-5% .................8 2.3.1 Power supply requirements ...................9...

  • Page 5: Introduction

    It will help you with the installation, maintenance, and use of this product. To the extent permitted by law Kistler does not accept any liability if this instruction manual is not followed or prod- ucts other than those listed under Accessories are used.

  • Page 6: Disposal Instructions For Electrical And Electronic Equipment

    Do not discard old electronic equipment in municipal trash. For disposal at end of life, please return this prod- uct to the nearest authorized electronic waste disposal service or contact your Kistler sales office for instructions. 1.2 Warning symbols and their meaning Failure to observe the precautions described here may re- sult in malfunction or damage to system components (see below).

  • Page 7: Software Upgrades And Updates

    Introduction 1.3 Software Upgrades and Updates Kistler may from time to time supply upgrades or updates for embedded software. Such upgrades or updates must always be installed. Kistler declines any liability whatsoever for any direct or consequential damage caused by products running on embedded software which has not been upgraded or up- dated with the latest software supplied.

  • Page 8: Installation And Operation

    Data Recorder Type DTI375.TH-5% 2. Installation and operation 2.1 Installation and operation From the point of view of DTI technology (Digital Trans-du- cer Interface), the data recorder of the Type DTI375.TH- 5% (see Fig. 1) represents the core element in the field of in-dummy measurement data acquisition and is designed for direct installation in the crash test dummies/ATDs (An- thropomorphic Test Devices).

  • Page 9: Mounting The Type Dti 375.Th-5% In The Dummy

    Installation and operation Each DTI port has an individual RS-485 transceiver for the data transfer on the bus. This setup is very robust against interferences and emits only very low interferen-ces itself, which means that the achieved signal quality is better than conventional analog technology.

  • Page 10: How To Connect Type Dti375.Th-5

    Data Recorder Type DTI375.TH-5% ƒ When the recorder is removed from the dummy, the mounting holes have to be covered to prevent the in- gress of any particles or liquids. On delivery, four M4x5 screws are enclosed for this purpose. ƒ...

  • Page 11: Power Supply Requirements

    Installation and operation 2.3.1 Power supply requirements Please use only power supplies as recommended below to avoid damage to or malfunction of your DTI375.TH-5% If the supply voltage exceeds 70 V, damage to the data recorder Type DTI375.TH-5% will result. The DTI 375.01 UPS attached to the DTI375.TH-5% have internal DC/DC converters that will operate with supply voltages in the range of 20 ...

  • Page 12: System Connector

    Data Recorder Type DTI375.TH-5% Fig. 3: Front view plug ODU SX2LAC-P19KF00-0001, on the connection cable Connector at the recorder SX2LAC-P19KF00-0001 cable Counterpart at the cable KX2LAC-P19NF00-0001 Table 1: Characteristics 2.3.3 System connector Signal Remarks 1 Ethernet RX+ 2 Ethernet RX– 3 Ethernet TX+ 4 Ethernet TX–...

  • Page 13: Dti Bus Connectors On The Data Recorder

    DTI ports 3 extra connections which can be used for a 304.26 Blink LED Module or a service port for Kistler Tech Centers. The 304.26 Blink LED Module provides optical status information of the data recorder.

  • Page 14: Functional Description

    Data Recorder Type DTI375.TH-5% Connector at the recorder Glenair MRM16585 Counterpart at the cable Glenair MRM16502 Table 4: Characteristics Signal Remarks 1 +PWR DTI 1 2 0 V/GND DTI 1 3 +PWR DTI 2 4 0 V/GND DTI 2 5 +PWR DTI 3 6 0 V/GND DTI 3...

  • Page 15: Connecting And Disconnecting The Ups With The 375 Recorder

    Installation and operation Fig. 5: DTI375.TH-5% block diagram The DTI ports 1 ... 12 are connected to the first recorder unit, while the ports 13 ... 24 are connected to the second recorder unit. Each DTI port of the data recorder has its own short cir- cuit-proof regulator for the power supply to the DiMod modules (including sensor system) connected to the DTI bus.
  • Page 16 Data Recorder Type DTI375.TH-5% 2.4.1 Connecting and disconnecting the UPS with the DTI375.TH-5% recorder In order to ensure uninterruptible measuring and record- ing even when the main current supply fails, each data re- corder is powered by a backup power supply (DTI 375.01 UPS).

  • Page 17: Power Save Mode

    Installation and operation 2.4.2 Power save mode UPS (Main board) Isolated Linear regulator 3.3V Input voltage 5.7V Battery Charging Vin filtered 36-60 VDC Line Filter 30 W Linear regulator (48 VDC nominal) Low power Linear regulator 3.3V Enable Primary I2C IO- I2C EEPROM µC Expander...
  • Page 18 Data Recorder Type DTI375.TH-5% repowering the recorder will listen for Ethernet communi- cation for 10 seconds. If within this time the recorder re- ceives a ping with a specific payload from the application software it will be available for normal operation again. If the respective ping is not received within 10 seconds the recorder will automatically shut down again.

  • Page 19: Handling Of The Battery

    V1.2 or newer (see the respective manual for details). In case of deterioration over time the battery pack can be replaced at a Kistler Service Center. The battery will only provide power to the DTI375.TH-5% if the system is sampling or recording and not powered by external power.

  • Page 20: Synchronization

    Data Recorder Type DTI375.TH-5% The DTI375.TH-5% internal battery is not intended to be changed by the user. Only trained Kistler service staff should open the DTI375.TH-5% to avoid possible dam- age of the electronic components and safety hazards. Do not expose the DTI375.TH-5% to fire. Danger of ex- plosion.

  • Page 21: Trigger Features

    Installation and operation 2.4.5 Trigger features 2.4.5.1 Digital trigger The DTI375.TH-5% has two digital trigger signals (T0 and SR) each connected through the main system connector using an RS-485 bus. The signal can be generated by an RS-422 or RS-485 driver.

  • Page 22: Other Trigger Possibilities

    Data Recorder Type DTI375.TH-5% 2.4.5.3 Other trigger possibilities Software trigger for start record: You may activate a soft- ware SR trigger. With the software SR trigger the data acquisition will start immediately. All other connected DTI375.TH-5% systems may see this SR trigger at the same time since it can also be distribut- ed on the dummy system cable, when activated.
  • Page 23 Installation and operation After the T0 event, the recorder will continue to write measurement data into the flash memory of the DTI375 recorder and will automatically stop after the configured post-trigger time (DELAY in Fig. 10). It is guaranteed that no data after the T0 event is overwritten.

  • Page 24: Recorder Mode

    Data Recorder Type DTI375.TH-5% 2.4.6.2 Recorder mode Pre-SR Samples Pretrigger Samples Postrigger Samples Fig. 11: Recorder mode: stopped by DELAY (left) and stopped by SR mark (right) You may use the recorder mode if you are sure that after starting the acquisition, your trigger event (for example: impact) will lie in the span of the post-trigger time.

  • Page 25: How To Estimate The Acquisition Time

    Installation and operation 2.5 How to estimate the acquisition time Since the DTI375.TH-5% consists of two independent re- corder subunits, the recording time of the overall system depends on the recorder subunit with the most occupied channels. In order to maximize the overall recording time of the Type DTI375.TH-5% data recorder it is recommended to distribute the sensors equally across DTI ports 1 ...

  • Page 26: Network Settings And Firmware Update

    Data Recorder Type DTI375.TH-5% As a rough approximation for the worst case recording 801 638 400 time you can use the following formula: �������� �������� ℎ �������� �������� �������� �������� �������� �������� �������� �������� �������� �������� ∗ 20 �������� �������� �������� ��������...

  • Page 27: Basic Network Settings At Time Of Shipment

    PC do not match the network settings of the DTI375.TH-5%. Its network configuration can be reviewed or changed if necessary. For further information and assistance please contact your local Kistler support office. 2.6.3 Firmware update Upgrading the DTI375.TH-5% firmware is possible via the DeviceMaintenaceTool. Please refer to the corresponding software manual.

  • Page 28: Eeprom Organization

    TEDS entries ($MANUF, $MDATE, $MTYPE, $MSERI, $MSPEC). They are intended to be modified by Kistler Service or Production Centers only. The recorder will recognize unauthorized modifications on these TEDS entries and will report an error. Page 26 DTI375.TH_012-054e-08.23...

  • Page 29: System And User Keywords For The Data Recorder

    Installation and operation 2.7.2 System and user keywords for the data recorder Only the identifiers listed in the following table for the key- words are permitted. 2.7.2.1 List of system keywords The system keyword with the identifier for the checksum STCHK must always be present, the others are exemplary. Tag identifier given Explanation numeric values are examples $STCHK = 255 8 bit unsigned modulo checksum for system tag space exclusive this tag.

  • Page 30: List Of User Keywords

    Data Recorder Type DTI375.TH-5% 2.7.2.2 List of user keywords The user keyword with the identifier for the checksum UTCHK must always be present, the others are exemplary. Tag identifier Explanation @RCNAM = String Recorder name @MYTAG = String My comment @MPSER = SerialNo Serial number of the internal processor @MMODS = 1 HW modification sate of the device @UTCHK = 123...

  • Page 31: User Tags List

    Installation and operation 2.7.3.2 User tags list The user keyword with the identifier for the checksum UTCHK must always be present, the others are exemplary. Tag identifier Explanation @PSNAM = String Ups name @MYTAG = String My comment @MMODS = 1 HW modification state of the device @UTCHK = 123 8 bit unsigned modulo checksum for user tag space exclusive this tag. Sum + checksum should give 0 Table 9: User tag list DTI375.TH_012-054e-08.23...

  • Page 32: Technical Data

    Data Recorder Type DTI375.TH-5% 3. Technical data Data recorder DTI ports Measuring channels Recording time >200 Trigger T-zero Start Recording (SR) Max. trigger input voltage (with –8 ... 13 respect to GND) Synchronization input frequency 1 000 Communication RS-485 Mbit/s Ethernet Mbit/s I2C (to UPS) Kbit/s Memory (flash)
  • Page 33 Technical data UPS power supply (external) Supply voltage 36 ... 60 Power consumption (max.) Buffer time >5 Rechargeable battery Type Lithium-Polymer Voltage Capacity Power (nom., max.) Weight grams Dimensions (LxWxH) 58x50x25 Operating temperature range °C 5 ... 40 Storage temperature range Long term °C –20 ..

  • Page 34: Mechanical Overview

    Data Recorder Type DTI375.TH-5% 3.1 Mechanical overview Fig. 12 shows the mechanical dimensions of the DTI375.TH-5% casing. The DTI375.TH-5% data recorder can be mounted using four M4 screws. Two on each side mounting holes are situated on each side and two at the back of the casing.
  • Page 35 Technical data Figure 13 shows the mechanical dimensions of the DTI 375.01 UPS casing. The DTI 375.01 UPS as well can be mounted using four M4 screws. Each one located at the corner of the casing. The UPS connector is mounted using two M2.5x10 screws.
