Takstar WTG-550 Manual

Dear Customer,
Thank you for purchasing our product. Read this manual thoroughly to use the
product properly.
If you have any questions or suggestions, please contact our local dealer.
■ Features
• Advanced UHF digital audio processing, stable and clear sound without
electrical sizzling.
• Comfortable, wearable on both ears, stress-free for long guiding sessions.
• Advanced air conduction tech, reducing ambient interference for undisturbed
listening.
• Built-in energy-saving 2,000 mAh lithium-ion battery for ultra-long battery life.
• Splash-proof and sweat-resistant, unfazed by changing environments.
• Instant one-key Bluetooth pairing to share audio effortlessly from smart devices.
■ Package Contents
n × WTG-550 Transmitter Main/Secondary
n × Earhook Receiver
n × Charging Case
Note: Quantity n is defined by client requirements.
Applications
■
•
For tourism, corporate activities, training, conferences, exhibitions, and
facility tours.
■ Specifications
Transmitter
• Main TX Freq. Range: 960-1000MHz
SEC TX Freq. Range: 2402-2483MHz
• Channels: 50CH
• TX Power: 18dBm
• Working Current: 220mA
• Bluetooth Current: 260mA / SEC TX 80mA
• Freq. Response: 20Hz-4kHz
• Distortion: <1%
• SNR: 80dB
• I/O: 3.5mm
• Battery: 2000mAh
• Charge Indicator: LED
• Charge Time: ~5hrs
• Battery Life: ~8hrs
• Antenna: Built-in
• Range: ~150m
• Charging: DC5V/400mAh
• Size: 43L*14.5W*117H (mm)
• Packaging: 70L*23W*140H (mm)
• Net Weight: ~69g
• Gross Weight: ~91g
Charging Case
• Slots: 50 (RX) + 2 (TX)
• DC Output: 5V/DC 20A 100W
• Packaging: 520L*190W*340H (mm)
• Gross Weight: ~4.32kg
Charging Case
• Slots: 20 (RX) + 2 (TX)
• DC Output: 5V/DC 6A 30W
• Packaging: 325L*270W*165H (mm)
• Gross Weight: ~1.66kg
Note: The above data are measured by Takstar laboratory which has the final
interpretation right!
n × Headset Mic (HM-700)
1 × User Manual
Earhook Receiver
• Freq. Range: 960-1000MHz
• Channels: 50CH
• Working Current: 15mA
• Freq. Response: 20Hz-4kHz
• Distortion: <1%
• SNR: 80dB
• Battery: 260mAh
• Charging: DC5V/180mA
• Indicator: LED
• Charge Time: ~1.5hrs
• Battery Life: ~10hrs
• Speaker: Built-in
• Range: 150m
• Size: 59L*19W*11.5H (mm)
• Packaging: 58L*20W*75H (mm)
• Net Weight: ~14.5g
• Gross Weight: ~25g
• AC Input: 110-230V/AC
• Size: 460L*130W*270H (mm)
• Net Weight: ~3.46kg
• Functions: Storage, Charging
• AC Input: 110-230V/AC
• Size: 270L*215W*120H (mm)
• Net Weight: ~1.16kg
• Functions: Storage, Charging
WTG-550 Air Conduction Audio Guide
■ Function Descriptions

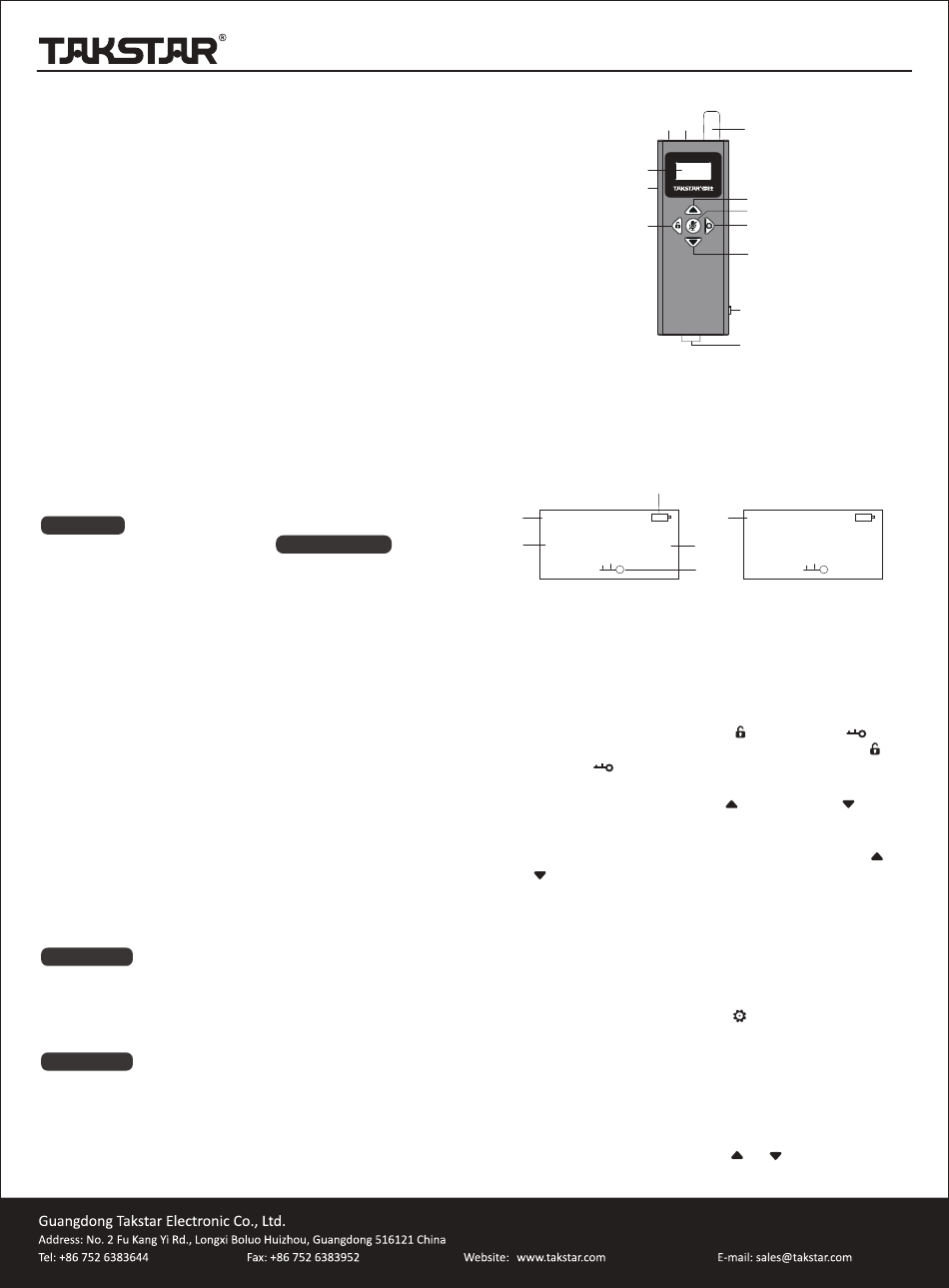

WTG-550 Transmitter
① ②
④
③
⑤
① 3.5mm Mic Input Jack
② Built-in Mic
③ Indicator Light
④ Display Screen
⑤ Unlock Button
⑥ Channel Up Button
Transmitter Display
①
②
Bluetooth
01
CH:
③
MIC: 3
① Battery Level
② Bluetooth Enabled / SEC TX Indicator
③ Current Channel
■ Operating Guide
1. Power Switch: Flip to ON/OFF to power on/off respectively.
2. Mic Input Jack: Insert a Ø3.5mm mic plug here for external mic pickup.
3. Unlock Settings
Power on transmitter, press and hold button
disappears - settings are now unlocked. To lock, press and hold button
until lock symbol appears.
4. Adjust Channels
With transmitter unlocked, use Channel Up
desired channel, 50 channels in total.
5. One-Key Auto-Sync All Receivers
With transmitter unlocked and receivers powered on, press Channel Up
Down to sync. "CHANGE CHS" will display, then disappear when sync is
complete. Receiver indicators turn solid green.
Note: Receivers must be within 5m. Restart transmitter after sync.
6. Manual Sync Receivers
Receivers can auto-sync. If a receiver fails to sync, power it off first, then back on
while pressing Volume Down until receiver LED blinks blue, entering sync mode.
LED turns solid green = successful sync, solid blue = failed.
7. One-Key Power Off All Receivers
With transmitter off, press and hold Settings
shows ALL OFF - all connected receivers are now powered off. (Note: Receivers
must be in range.)
8. Bluetooth Pairing
Enable Bluetooth on the transmitter, then go to your phone's settings to turn
on Bluetooth. Tap "TAKSTAR WTG-550" to connect. Successful pairing is
indicated by a change from rapid blue flashes to a slow blue pulse every 2s.
9. Switching Between Bluetooth and Dual-Speaker Mode
Power on the transmitter while pressing the
"Bluetooth" symbol will appear, and the indicator will flash blue rapidly. To
⑫
⑥
⑦
⑧
⑨
⑩
⑪
⑦ Mute Mic Button
⑧ Settings Button
⑨ Channel Down Button
⑩ Power On/Off Switch
⑪ Charging Contacts & Type-C Port
⑫ External Antenna
②
TALK-2
01
CH:
⑤ MIC: 3
④
④ Lock Indicator
⑤ Mic Volume Level
until lock symbol
and Channel Down to select
while powering on. Display
and buttons. The
or
