Table of Contents
1. Warning..............................................................................2
2. Specifications....................................................................3
3. Troubleshooting Guide.................................................... 4

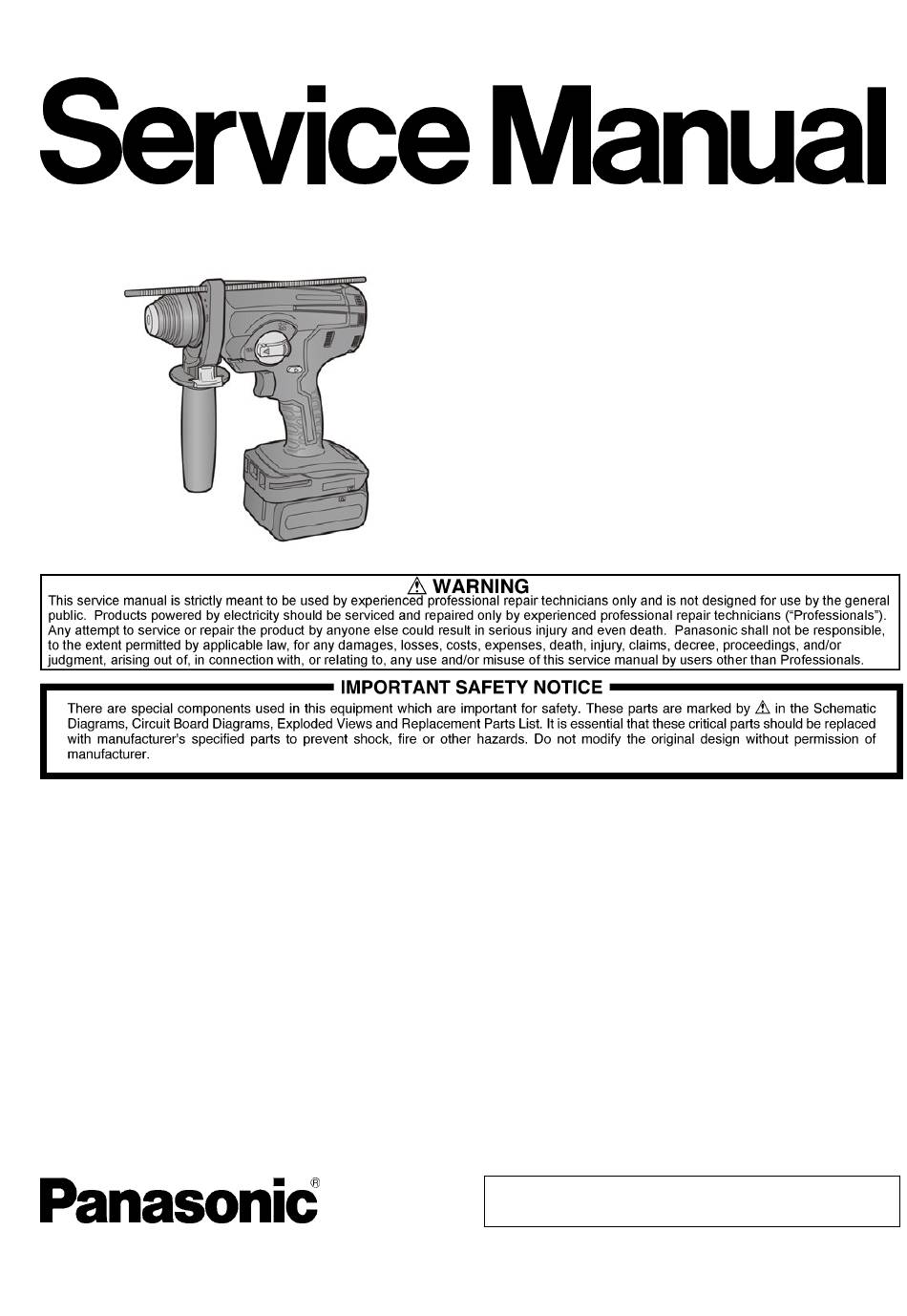

Cordless Rotary Hammer
EY1HD1
Model No.
Europe
Page
4. Disassembly and Assembly Instructions....................... 6
5. Exploded View and Replacement Parts List................ 14
© Panasonic Corporation 2022. All rights reserved.
Unauthorized copying and distribution is a violation of law.
Order No.PTD2212E03CE
Page
Advertisement
Table of Contents
Related Manuals for Panasonic EY1HD1
Summary of Contents for Panasonic EY1HD1
-
Page 1: Table Of Contents
Page Page 1. Warning................2 4. Disassembly and Assembly Instructions....... 6 2. Specifications..............3 5. Exploded View and Replacement Parts List....14 3. Troubleshooting Guide............ 4 © Panasonic Corporation 2022. All rights reserved. Unauthorized copying and distribution is a violation of law. -
Page 2: Warning
1 Warning Caution: • Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature soldering iron, please be careful not to heat too long. -
Page 3: Specifications
2 Specifications - 3 -... -
Page 4: Troubleshooting Guide
3 Troubleshooting Guide 3.1 Troubleshooting Guide - 4 -... - Page 5 3.2 Trial Operation (after checking Troubleshooting Guide). Note: • If you have any questions concerning operation, refer to the instruction manual and review its description of drill operation. • If the drill fails to operate as described in the instruction manual, reassemble it and check for any improperly assembled or missing parts.
-
Page 6: Disassembly And Assembly Instructions
4 Disassembly and Assembly Instructions [Strictly observe] Check and understand the disassembly/assembly procedures and exploded view in advance. [Strictly observe] To reduce the risk of injury, always remove battery pack before removing/installing the tool. [Strictly observe] Manage all parts and make sure that no parts are left unattached at the time of assembling. [Note] Work while keeping information on the disassembly process using a digital camera as needed. - Page 7 4.3 Removing the Driving block assembly and Intermediate shaft assembly form the Housing. 4.4 Removing the electric circuit assembly and switch assembly from the housing. 1. Removing the electric circuit assembly and switch assembly from the housing. 2. Disconnect the switch’s connector. 3.
- Page 8 4.5 Disassembly points for driving block assembly. 1. Remove the ISTW-25 snap ring by using the snap ring plier, then dismount the cylinder from the gear case using the pulley removal tool. 2. Remove the pins by using a magnet. 3. Remove the ISTW-28 snap rings by using the snap ring plier, and then dismount the power gear. 4.6 Assembly points.
- Page 9 Use a hand press or a cylindrical jig similar to the one shown below for press-fitting the cylinder into the gear case. Take note of the installation directions of the retaining ring and output gear. (Install the retaining ring in the direction that minimizes detachment possibility.) The rubber of seal A and the O-ring must be in firm contact with each other.
-
Page 10: Applying Grease
4.7 Applying grease. - 10 -... - Page 11 - 11 -...
- Page 12 4.8 Wiring and Assembly Points. - 12 -...
- Page 13 - 13 -...
-
Page 14: Exploded View And Replacement Parts List
5 Exploded View and Replacement Parts List Model No. : EY1HD1 Exploded View1... - Page 15 Model No. : EY1HD1 Exploded View2...
- Page 16 Model No. : EY1HD1 Parts List Change Safe Ref.No. Part No. Part Name & Description Quantity Remarks EY1HD1 WEY1HD1F7001 AUXILIARY HANDLE WEY1HD1F7101 DEPTH GAUGE WEY6813H3116 CHUCK COVER WEY6813K3127 CHUCK HANDLE WEY6813L0427 BALL GUIDE WEY6813L1916 STEEL BALL WEY6813L0437 CHUCK SPRING STRIKE PLATE...
