Summary of Contents for Moticam 4000X

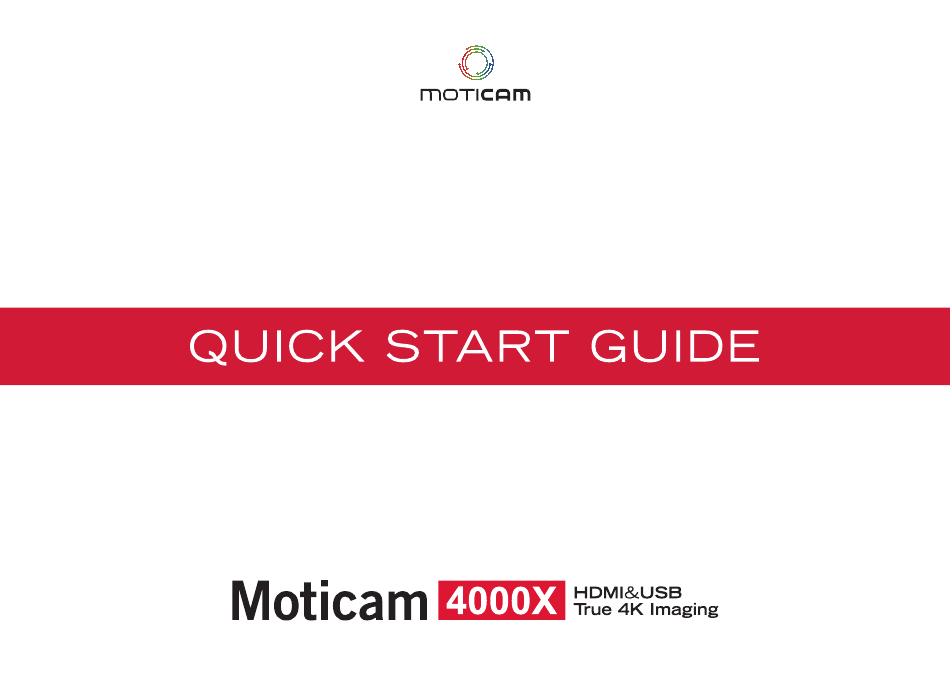

- Page 2 Quick Start Guide Thank you for purchasing this Moticam. This camera is a delicate instrument and should be handled with care. When not in use, please store the camera in a safe place with the dust cap attached. Do not let the camera get in contact with water or expose it to extreme temperatures (below 0 or above 50 degrees Celsius). In order to receive the highest level of service, please retain your receipt as proof of purchase and register your camera online at www.motic.com...
- Page 3 Parts Moticam 4000X Focusable Lens Eyepiece Adapters (2) C-Ring USB Cable Motic Calibration Slide Macro Tube HDMI Cable Power Supply Motic Images Plus Software on USB...
- Page 4 Controls and Ports on the Camera Ethernet Port HDMI Port USB Video Port – When connected to a computer using Motic Images Plus Software Micro SD Card Slot – For connecting Micro SD Memory Cards (Maximum 128GB ??) Power Supply Port USB Port –...
- Page 5 Attaching the Camera to an Eyepiece Connect the Focusable Lens (B) to the Moticam 4000X (A) and choose a suitable Eyepiece Adapter (C) for your eyepiece. Attach the Eyepiece Adapter to the Focusable Lens and then carefully attach the whole unit onto the eyepiece.
- Page 6 Use the Moticam 4000X on your Wifi enabled computer The Moticam 4000X can also be used with Motic Images Plus software for computers. If you have a WiFi enabled laptop, you can go to www.motic.com and download Motic Images Plus 3.1ML software by registering as a user with the DM serial number you will find on the box.
- Page 7 Connect the camera’s Power Supply (I) to a suitable outlet and connect the USB Cable (E) to the USB Port (3). Turn the camera on using the On/Off Switch (7) Please consult the In-Software help and manual for complete coverage of the software tools. Moticam 4000X + HDMI Screen Connect the HDMI Cable (H) to the cameras HDMI Port (2) and to the HDMI port on the included monitor.
-
Page 8: Fcc Warning
FCC Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 9 SAP Code: xxxxx Updated: 05.12.2023 (Moticam 4000X_English)
