Summary of Contents for Favero Electronics F-PM2

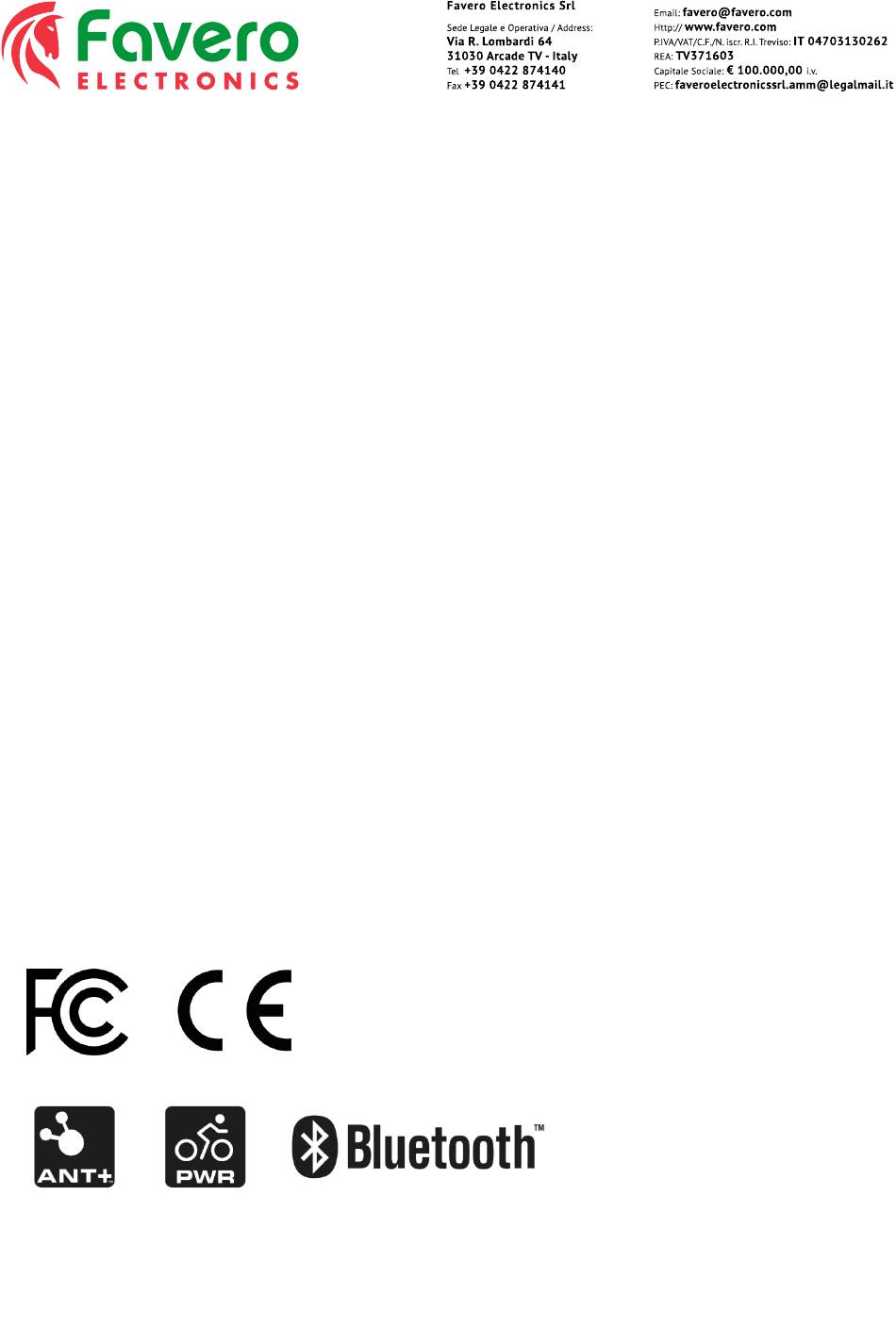

- Page 1 Favero Electronics F-PM2 sensor user manual Favero Electronics F-PM2 sensor manual_EN_Rev02.docx...
-
Page 2: Product Information
Product information Product name F-PM2 sensor Manufacturer Favero Electronics srl via R. Lombardi, 64 31030 Arcade (TV) – ITALY Description Electronics sensor for bicycle pedal power meter... -
Page 3: Fcc Statement
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. Because of F-PM2 sensor limited size, the FCC ID label is placed in this manual and on the packaging or on a removable label attached to the device. - Page 5 Tighten F-PM2 sensor to the crank-arm with a tightening torque of 35-40 Nm. If F-PM2 sensor shows signs of damages, cracks, loose parts and/or wear, please take it to a specialized mechanic for professional check, maintenance and repair.
- Page 6 If F-PM2 sensor is not used for long periods, charge the battery at least every 3 months, to avoid the risk of irretrievably damaging the device. Do not expose F-PM2 sensor to excessively high heat sources and do not store it in direct sunlight.
-
Page 7: Product Description
The F-PM2 sensor can be installed on the right or left or both cranks of the bicycle, the only difference is the thread direction, with no influence on the internal functioning of the sensor. - Page 9 Switching on F-PM2 sensor will automatically switch on by turning the pedals or starting to ride and will automatically switch off after 5 minutes of inactivity.
- Page 10 Fixing the pedals to the crank-arms Before tightening the pedals, apply a thin layer of grease to the pedal axle thread. Screw the spindle manually Screw with torque 35Nm ± 5Nm...
- Page 11 F-PM2 sensor is switched on before proceeding. Each F-PM2 sensor has a unique 5-digit identification number (ANT+ ID) written on the packaging. This number identifies F-PM2 sensor in the list of devices which can be paired with the bike computer.
-
Page 12: Battery Charge
Battery charge F-PM2 sensor has an internal rechargeable lithium battery with at least 50-hour life span. The capacity of each battery is tested during the manufacturing process. The battery life is very long thanks to the low number of battery charges required. - Page 13 switch on and remain switched on during the entire recharging. Once recharging has been completed, the LEDS will blink every 0.5 seconds. Recharging a completely discharged battery takes about 6 hours.
-
Page 14: Inspection And Maintenance
If the cleats are worn out, they may cause accidents. Do not attempt to open or disassemble the sensor as you may damage it and invalidate the warranty. Assistance must be carried out only by a specialized technician, authorized by Favero Electronics. - Page 15 Technical specifcications Dimensions H x W x L(mm) 92.8mm x 18mm x 18mm Weight 55.4 g Usage Indoor/Outdoor IP grade IP67 Description Sensor for power measurement for cyclist Input charging voltage 5Vdc, max 110mA Internal battery Lithium cell, model HWE 78380 Nominal voltage 4.2Vdc Capacity 165mAh Radio protocols...
- Page 16 EU DECLARATION OF CONFORMITY DICHIARAZIONE DI CONFORMITÀ UE Noi, Manufacturer / Fabbricante: Favero Electronics Srl Address / Indirizzo: Via R. Lombardi 64 31030 Arcade TV - Italy declare under our sole responsibility that the radio equipment dichiariamo sotto la nostra unica responsabilità che l’apparecchiatura radio...
- Page 17 1. Essential requirements for the protection of the health and safety of people, pets and goods, Article 3.1a) of Directive 2014/53/UE: Requisiti essenziali per la protezione della salute e della sicurezza di persone e di animali domestici e beni, Articolo 3.1a) della Direttiva 2014/53/UE: ...
