Gems GNSSRK-M-DV Installation And User Manual
Full gnss band repeater kit
Hide thumbs
Also See for GNSSRK-M-DV:
- Installation and user manual (16 pages) ,
- Instruction manual (19 pages)
Table of Contents
Advertisement
Quick Links
Full GNSS Band Repeater Kit
GNSSRK-M-DV
◼
GNSSRK-M-DV-Max
◼
Installation and User Guide
WWW.GEMSNAV.COM
SHENZHEN GEMS NAVIGATION Electronics Co.,Ltd.
Tel: +86-755-29644311
Document Number 1149
Add: F2,Building 6, RunDongSheng Industry Park, Baoan District, Shenzhen, China
Fax: +86-755-29644383
Rev 008
2024-08-06
Email: sales@gemsnav.com
Page 1 / 21
Advertisement
Table of Contents
Related Manuals for Gems GNSSRK-M-DV
Summary of Contents for Gems GNSSRK-M-DV
- Page 1 Full GNSS Band Repeater Kit GNSSRK-M-DV ◼ GNSSRK-M-DV-Max ◼ Installation and User Guide WWW.GEMSNAV.COM SHENZHEN GEMS NAVIGATION Electronics Co.,Ltd. Add: F2,Building 6, RunDongSheng Industry Park, Baoan District, Shenzhen, China Tel: +86-755-29644311 Fax: +86-755-29644383 Email: sales@gemsnav.com Document Number 1149 Rev 008...
-
Page 2: Table Of Contents
Contents System Characteristics ....................4 System Installation Steps and Schematics ..................4 Installation steps ..........................4 Installation Diagram ..................... 4 Installation Diagram ........................6 Description ........................7 Typical Application .......................... 7 Equipment List ..........................7 System Connection Diagram ..................8 System Components .................... - Page 3 Frequency Reference Table ..................21 Page 3 / 21...
-
Page 4: System Characteristics
Serial command control； Input and output port power setting； Coverage Range: GNSSRK-M-DV: A single antenna radiates a radius of 5-20 meters； GNSSRE-M-DV-Max:A single antenna radiates a radius of 10-30 meters System Installation Steps and Schematics Installation steps 1. - Page 5 SHENZHEN GEMS NAVIGATION Electronics Co.,Ltd. Add: F2,Building 6, RunDongSheng Industry Park, Baoan District, Shenzhen, China Tel: +86-755-29644311 Fax: +86-755-29644383 Email: sales@gemsnav.com Document Number 1149 Rev 008 2024-08-06 Page 5 / 21...
-
Page 6: Satellite Signals
Satellite signals GNSS Antenna Reradiate Antennas RG8,30M XHY240,20M Lighting-protector GA30-DV GNSS Receiver SHENZHEN GEMS NAVIGATION Electronics Co.,Ltd. Add: F2,Building 6, RunDongSheng Industry Park, Baoan District, Shenzhen, China Tel: +86-755-29644311 Fax: +86-755-29644383 Email: sales@gemsnav.com Document Number 1149 Rev 008 2024-08-06 Page 6 / 21... -
Page 7: Description

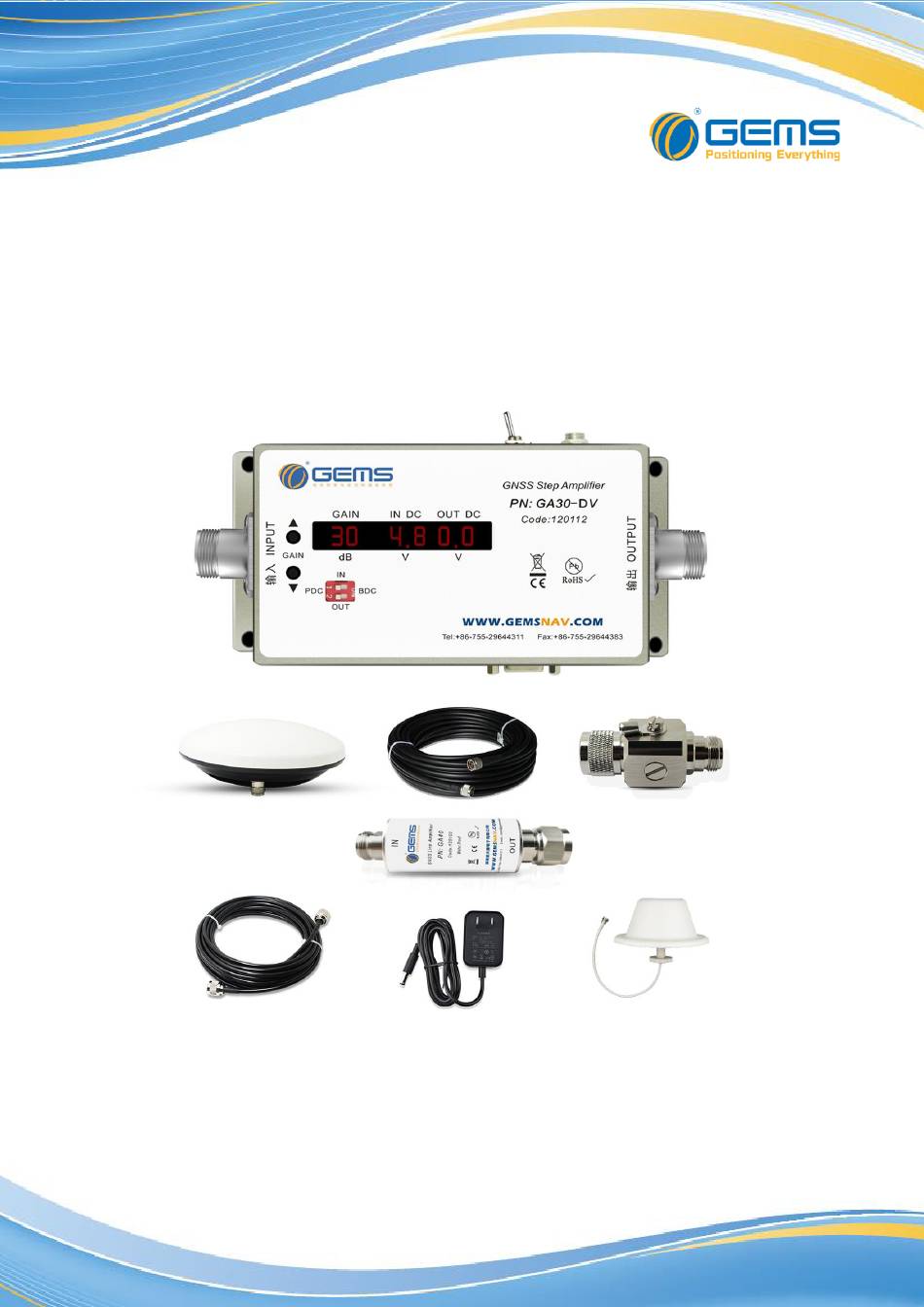

For testing the cell- phone, PND, car navigators, tracker, survey products, etc. For the purpose of GNSS signal covering Car parks, lab, aviation manufacturing hangar, trade shows, Emergency-, safety vehicles, public transportation etc. Equipment List GNSSRK-M-DV(Standard） GNSSRK-M-DV-Max(Enhance） GPS Amplifier: GA30-DV, 1ea; GPS Amplifier: GA30-DV, 1ea; Roof GNSS Antenna: R440A/S440B, 1ea;... -
Page 8: System Connection Diagram
System Connection Diagram SHENZHEN GEMS NAVIGATION Electronics Co.,Ltd. Add: F2,Building 6, RunDongSheng Industry Park, Baoan District, Shenzhen, China Tel: +86-755-29644311 Fax: +86-755-29644383 Email: sales@gemsnav.com Document Number 1149 Rev 008 2024-08-06 Page 8 / 21... -
Page 9: System Components
Digital Display Step Adjustable Amplifier GA30-DV Function Used to adjust system gain, 0-30 dB adjustable, you can adjust as needed. The input and SHENZHEN GEMS NAVIGATION Electronics Co.,Ltd. Add: F2,Building 6, RunDongSheng Industry Park, Baoan District, Shenzhen, China Tel: +86-755-29644311 Fax: +86-755-29644383 Email: sales@gemsnav.com... - Page 10 output can be set to energize 5V DC or not energized. With AC220/12V power adapter, supply power to system and itself. ① and ② are GA30-DV input and output. ③ Power switch; ④ Power Input; ⑤ For the input and output power state setting, IN for the input, OUT for the output, PDC that power, BDC that does not power.
-
Page 11: Specification
Specification Parameter Condition Mini Unit Frequency Range In ,Out, 50Ω 1150 1650 Impedance In ,Out Ω Gain Digital Step Adjustable 0~30 Input VSWR 2.0:1 Output VSWR 2.0:1 Noise Figure Gain Flatness Delay Flatness Power Input 12V DC Adaptor Pass DC, No Powered configuration, DC input Current on Out Port 1dB Compression... -
Page 12: Antenna
Antenna Roof Antenna S440 Full GNSS Band: GPS/GLONASS/Beidou/Galileo/IRNSS/QZSS/SBAS/NAVIC/OmniStar GPS:L1,L2,L5; Glonass:G1,G2; Galileo:E1,E2,E5a,E5b; Beidou2:B1,B2,B3; IRNSS/QZSS/SBAS/NAVIC/OmniStar; Electrical parameter: Frequency [MHz] 1555~1623/1164~1288 Impedance 50Ω Gain [dBi] 40±2(LNA included) Polarization right-hand circular polarized（RHCP） Axial ratio [dB] ≤3 Elevation Coverage 360° Input（VSWR）... -
Page 13: Roof Antenna R440B
Mechanical characteristic: Size [mm] Ø165×68.8 Connecting TNC-C-K Operation Temperature [℃] -40~+85 Reposition Temperature [℃] -55~+85 Humidity [%] 95% non-condensin Roof Antenna R440B Electrical parameter: Antenna Characteristics Frequency Ranges 1165MHz~1300MHz, 1525MHz~1615MHz GPS L1/L2/L5 Nominal Impedance 50 Ω GLONASS L1/L2/L3 Right-handed circular Polarization method BEIDOU polarization（RHCP）... -
Page 14: Gnss Antenna S440 /R440Binstallation
Ripple 10 times Structural Characteristics Dimensioin Φ150×53mm Weight ≤600g Connector TNC Female Vibration 9.8gRMS, 24-2000Hz Impact 3 vertical axis 75Gs, 6ms Salt Spray Alignment bar mounting, Mounting Thread Specification: inch thick, Water/Dust IP69K Installation Methods thread of screw 5/8"-11, Resistance depth 10-11mm, screwdriver installation: M8 screwdriver... -
Page 15: Re-Radiate Antenna Gra10
② Stretch the self-adhesive tape to twice its length during the winding process, and use 60cm long waterproof tape for each connector, requiring three layers of winding. The winding direction should be the same as the tightening direction of the feeder head to avoid loosening of the feeder head during the winding process. -
Page 16: Electrical Parameters
signal coverage is required; This product factory with fixed bracket, you can refer to the diagram to fix Electrical parameters Mechanical parameters Frequency [GHz] 1.15-1.7 Lightning protection DC Grounding Input Interface NK/SMAK Input impedance 50Ω Size Φ186X85mm Polarization method Vertical polarization Antenna cover material ABS, UV protection Horizontal coverage angle... -
Page 17: Line Amplifier Ga40
Line Amplifier GA40 Specifications Parameter Conditions Units wideband full band 1150 1650 Freq. Range narrowband GPS L1 and Beidou B1 1557 1587 In &Out Imped. In, all output ports Ω Gain In- Output ports 39.5 41.5 Input SWR 2.0:1 Output SWR 2.0:1 Noise Figure full band... -
Page 18: Cable Assembly
Cable Assembly SHENZHEN GEMS NAVIGATION Electronics Co.,Ltd. Add: F2,Building 6, RunDongSheng Industry Park, Baoan District, Shenzhen, China Tel: +86-755-29644311 Fax: +86-755-29644383 Email: sales@gemsnav.com Document Number 1149 Rev 008 2024-08-06 Page 18 / 21... -
Page 19: Xhy240
XHY240 Page 19 / 21... -
Page 20: Direction Of Installation
Direction Of Installation As Shown at Left: ① Cable assembly: connect to receiving antenna; ② Protector; ③ Earth connection; ④ Gain controller:GA30-DV; ⑤ Input of Gain controller, not reverse; ⑥ Output of Gain controller, not reverse; ⑦ Cable assembly: connect to transmitting antenna. - Page 21 Third: If the below two steps were ok, please check the roof antenna. You can check the voltage between axis of the cable connector and the outer shielding layer to make sure it’s 5V. If there is no voltage, the circuit has fault, please contact our technical support.
