Maytag MTUC7000AW Product Dimensions

Maytag built in trash compactor dimension guide.
Hide thumbs


Advertisement

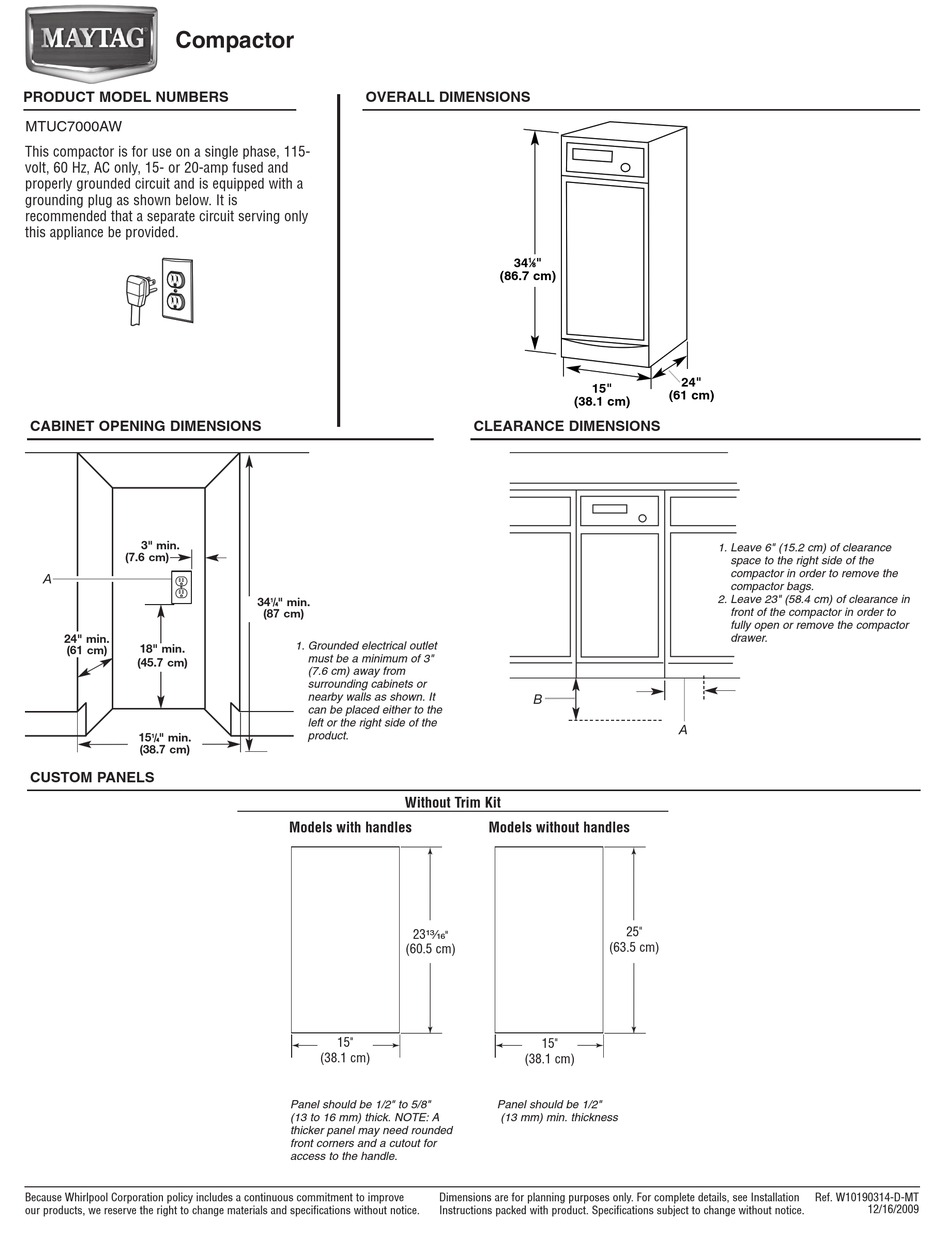

Compactor
PRODUCT MODEL NUMBERS
MTUC7000AW
This compactor is for use on a single phase, 115-
volt, 60 Hz, AC only, 15- or 20-amp fused and
properly grounded circuit and is equipped with a
grounding plug as shown below. It is
recommended that a separate circuit serving only
this appliance be provided.
CABINET OPENING DIMENSIONS
3" min.
(7.6 cm)
A
24" min.
18" min.
(61 cm)
(45.7 cm)
15
"
min.
(38.7 cm)
CUSTOM PANELS
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
OVERALL DIMENSIONS
34 " min.
(87 cm)
1. Grounded electrical outlet
must be a minimum of 3"
(7.6 cm) away from
surrounding cabinets or
nearby walls as shown. It
can be placed either to the
left or the right side of the
product.
Without Trim Kit
Models with handles
29 ³⁄₈"
23
( 74.6 cm )
(60.5 cm)
15"
15"
( 38.1 cm )
(38.1 cm)
Panel should be 1/2" to 5/8"
(13 to 16 mm) thick. NOTE: A
thicker panel may need rounded
front corners and a cutout for
access to the handle.
34
1
"
8
(86.7 cm)
15"
(38.1 cm)
CLEARANCE DIMENSIONS
B
Models without handles
"
( 63.5 cm )
(63.5 cm)
15"
15"
( 38.1 cm )
(38.1 cm)
Panel should be 1/2"
(13 mm) min. thickness
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
24"
(61 cm)
1. Leave 6" (15.2 cm) of clearance
space to the right side of the
compactor in order to remove the
compactor bags.
2. Leave 23" (58.4 cm) of clearance in
front of the compactor in order to
fully open or remove the compactor
drawer.
A
25"
25"
Ref. W10190314-D-MT
12/16/2009
