Jofran CANNON VALLEY 1510-FP6032 Assembly Instructions

j
OFRAN
Q'TY
NO. CODE
1 1510-FPP07L 1 PC
2 1510-FPP07R 1 PC
1510-FPP04
3 2 PCS
4 1510-FPP08 2 PCS
5 1510-FPP08P 8 PCS
Step 1:
Carefully slide the Firebox insert carton out of the console
from the back. Remove the Firebox insert from the carton
and place on a clean, protected surface.
Step 2:
Insert the Firebox into the back of the cabinet.
Attach the support bracket to secure the Firebox from
behind the cabinet. Refer to the separate booklet for
the fireplace insert for complete instructions.
MADE IN VIETNAM
INC.
DESCRIPTION
LEFT SIDE FACING DOOR
RIGHT SIDE FACING DOOR
DOOR PULL W/ SCREW
SHELF
SHELF PIN
10
9

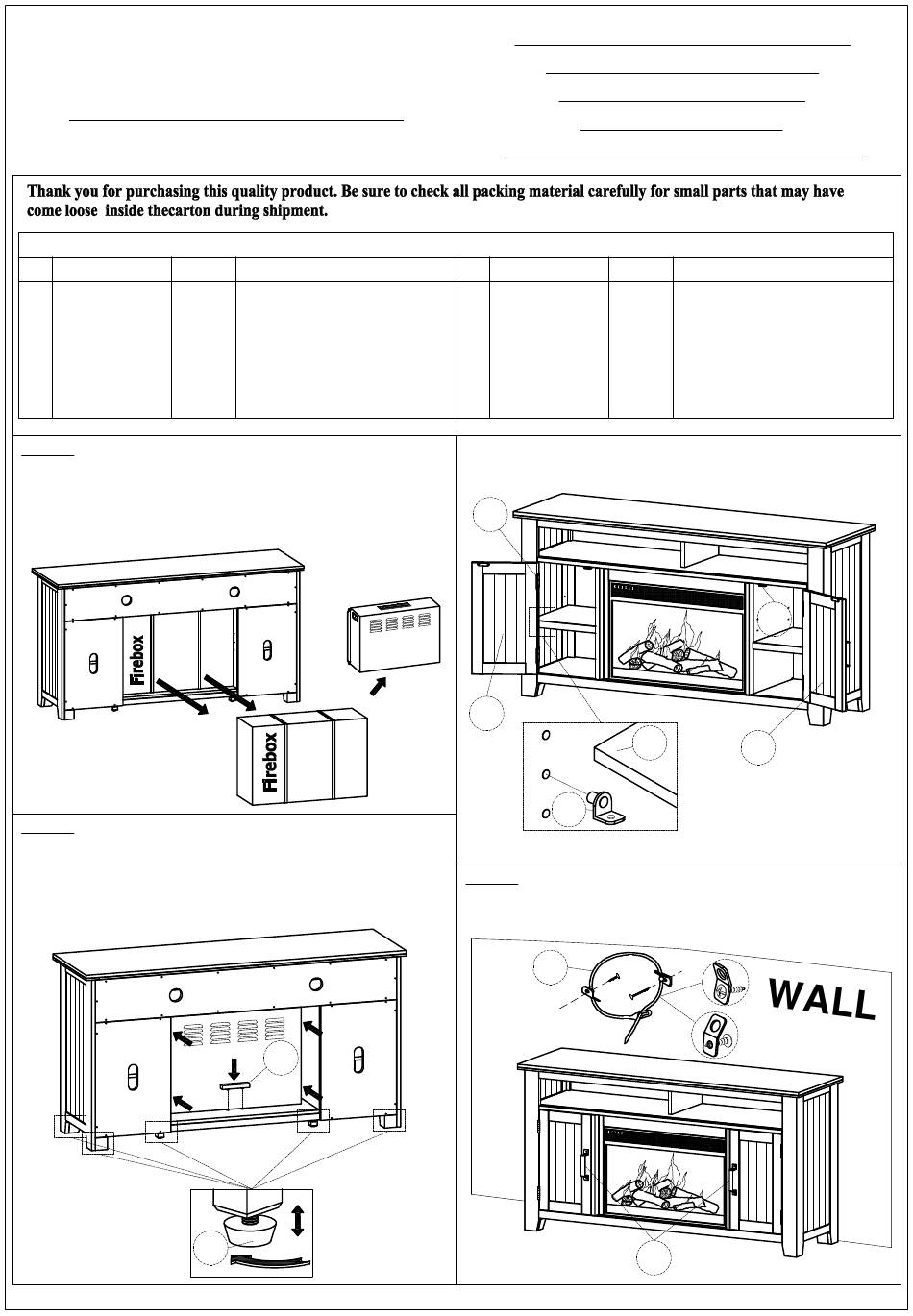

ASSEMBLY INSTRUCTIONS &
PARTS IDENTIFICATION
FIREPLACE UNIT WITH LOGSET
KEY COMPONENTS
NO. CODE
6 1510-FPP07H
7 1510-FPP01D
8
1510P01AT
9
1510-FPP01L
10 1510-FPP01B
6
1
Step 3:
Install the Anti-Tip Hardware to avoid the
possibility of the furniture tipping and injury.
8
MODEL #1510-FP6032
CANNON VALLEY
Q'TY
DESCRIPTION
4 PCS
DOOR HINGE
2 PCS
DOOR CATCH
1 KIT ANIT-TIP KIT
6 PCS LEVELERS
1 PC SUPPORT BLOCK
4
5
3
7
2
