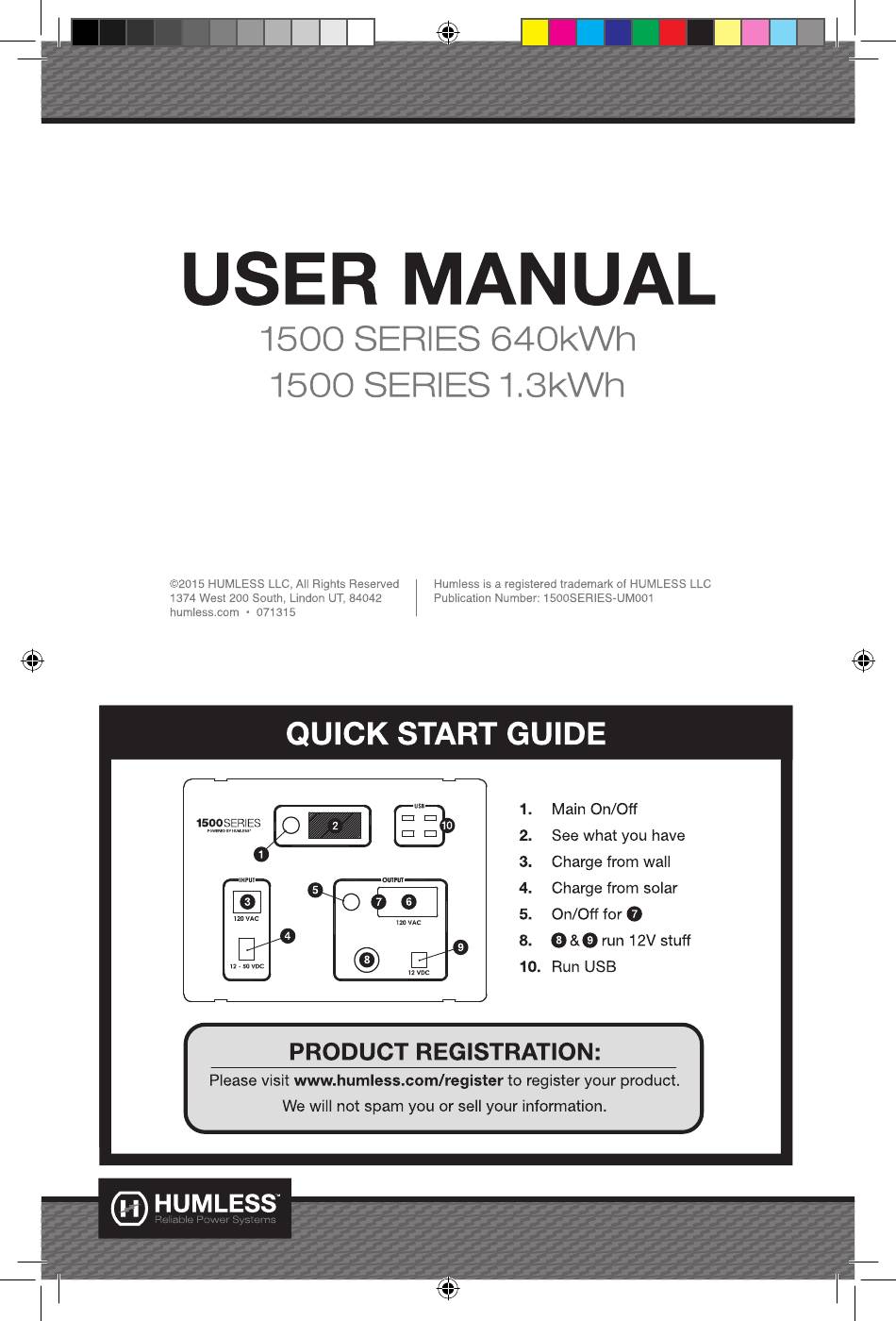

- Page 1 User Manual - 1500 Series~02.indd 1 7/28/15 10:55:55 PM...
-
Page 2: Product Certification
Neither Humless nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein. -
Page 3: Table Of Contents
Technical Specifications - 1500 SERIES 1.3KWH ....... 8-11 - 1500 SERIES 0.64KWH ......11-14 Warranty Information . -
Page 4: 1500-Series Overview
1500 SERIES HUMLESS GENERATORS The 1500 Series Humless Generator model 1500-640W and 1500- 1300W is a backup power/Energy Storage Unit. FEATURES: It is safe for indoor use, emits no fumes/gases. It is quiet. It can be charged from renewable sources (solar, wind, etc) or the gird. -
Page 5: Safety Terms And Symbols
Keep well ventilated and inspect the intake fans regularly. Do not operate with suspected failures: If you suspect damage to the unit, have it inspected by qualified service personnel before further User Manual - 1500 Series~02.indd 2 7/28/15 10:55:58 PM... -
Page 6: In The Box
Any maintenance, adjustment or replacement to circuits or accessories must be performed by HUMLESS authorized personnel. Do Not Operate in Wet Conditions: In order to avoid short circuits or electric shock, DO NOT operate in a humid or wet environment. -
Page 7: Key
Main Power Switch LCD Display 120VAC Charging Input 12-50VDC Charging Input AC Outlet Switch (inverter) GFCI Reset Button 120VAC Outlet 12VDC Cigarette Outlet 12VDC Anderson Outlet 10. 5VDC USB Outlets User Manual - 1500 Series~02.indd 4 7/28/15 10:55:59 PM... -
Page 8: Lcd Display
DC:IN, charge level and remaining charge time. Once the unit is fully charged, the display will read FU:LL (Note: when the unit is close to fully charged, the display will flash and read 00:01 for 5 User Manual - 1500 Series~02.indd 5 7/28/15 10:56:00 PM... -
Page 9: Ac Outlet
Four USB ports rated 5VDC and a maximum of 8 cumulative Amps across all four ports. Each individual port has a max output of 3A, but the unit will automatically configure the amount of power required to charge/run the device. User Manual - 1500 Series~02.indd 6 7/28/15 10:56:00 PM... -
Page 10: Error Code List
E3:01 DC Out over Maximum surge Check current current protection current exceeded for draw of maximum time appliances/ loads. Reduce the number of discharge devices User Manual - 1500 Series~02.indd 7 7/28/15 10:56:01 PM... -
Page 11: Technical Specifications
Temperature protection (hot/cold) DC Charger DC inputs Variable (solar, wind, other) DC input voltage 12~50V Max.output DC current Max.output DC voltage 14.6Vdc Over voltage protection Yes, auto-reset Low voltage Protection Yes, auto-reset User Manual - 1500 Series~02.indd 8 7/28/15 10:56:01 PM... - Page 12 Max. current for 4 ports is 8A All DC Max = 38A DC output - Cigarette socket Voltage: 10.5~14.6 Current max: 10A~20A All DC Max = 38A Battery (incl. BMS) Battery type Battery standard voltage 12.8V User Manual - 1500 Series~02.indd 9 7/28/15 10:56:02 PM...
- Page 13 Application environment Indoor Normal ambient temperature 25+/-5 °C Case temperature < 55 °C full load discharging status Normal ambient moisture <= 90% Storage temperature 0~40 °C Storage moisture <= 90% Altitude 2,000m User Manual - 1500 Series~02.indd 10 7/28/15 10:56:02 PM...
-
Page 14: Safety Requirement/Standards
>90% AC Charger AC charging model CC:Constant Current CV:Constant Voltage Input AC voltage 120+/-6V Input AC frequency 60Hz±5% Max.output DC current Max.output DC voltage 14.6Vdc Over voltage protection Low voltage protection User Manual - 1500 Series~02.indd 11 7/28/15 10:56:03 PM... - Page 15 1599W (5 seconds) Startup peak power 115A for 300ms Overload protection 1600W for <5 seconds Over temperature protection Yes 100.2 C Short protection By-pass functionality Yes, 110~130 Vac / 57~63Hz Low Voltage Protection User Manual - 1500 Series~02.indd 12 7/28/15 10:56:03 PM...
- Page 16 @13Vdc ~ 0.01W/24Hr (60uA) Consumption: OFF (no charge, no discharge) Internal System Power @13Vdc ~ 0.01W/24Hr (60uA) Consumption: OFF (no charge, no discharge) AC inverter switch ON but no AC load User Manual - 1500 Series~02.indd 13 7/28/15 10:56:04 PM...
- Page 17 Fan & Convection Industrial Design Aluminium 255mm x 255mm x 355mm Weight 15.6kg (34.5lbs) Safety requirement/Standards Conform to FCC Part 15 Subpart J Class B Not certified but UL standards used in design User Manual - 1500 Series~02.indd 14 7/28/15 10:56:04 PM...
-
Page 18: Warranty Information
WARRANTY INFORMATION Humless LLC warrants to the original purchaser that its products and the component parts thereof will be free from defects in workmanship and materials, for a period on one year from date of purchase. Humless LLC will, without charge, repair or replace, at its option, defective product or component parts. - Page 19 User Manual - 1500 Series~02.indd 16 7/28/15 10:56:05 PM...
- Page 20 User Manual - 1500 Series~02.indd 17 7/28/15 10:56:06 PM...
