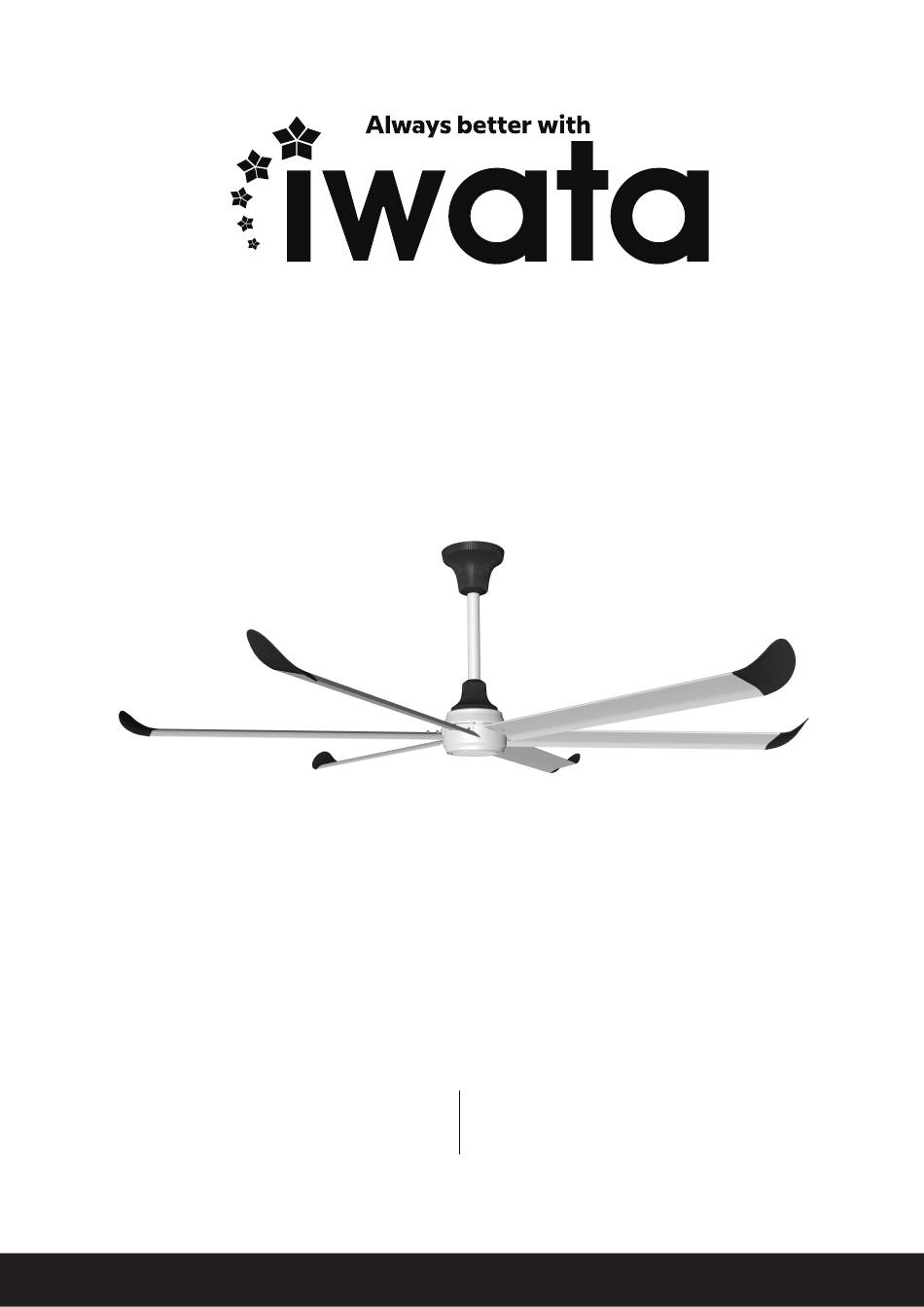

- Page 1 INDUSTRIAL CEILING FAN HVLS JET FAN SERIES HVLS JET FAN 6.5 HVLS JET FAN 8.2 PLEASE READ THESE INSTRUCTIONS BEFORE USE!
-
Page 2: Upper Mount
Installation Guide 1. Upper Mount Normal structure / Side-beam structure ① Drill holes on the ceiling or on the side of the crossbeam. The position of the drill holes must fit the installation holes of the upper mount. Use a ф12mm drill bit to reach a depth of 60-70mm, then fix 2 to 4 expansion bolts (M10*80) on each side, and finally fix the upper mount with nuts (see Figure 1.1) Installa�on holes... -
Page 3: Extension Tube
2. Controller ① Insert the controller into the hollow frame of the upper mount. The power cord, motor wire, and LED light wire (optional) of the controller are led out from the end shown in Figure 2 ② Wrap the controller and wires with the upper mount together with zip tie to prevent the controller from loosening. - Page 4 ② Unscrew two M4*10 hexagonal screws near the upper end of the extension tube, and install the lower decorative cover from the upper end to the lower end, and then install the upper decorative cover (see Figure 3.2) ③ Insert the upper end of the extension tube into the upper mount, align their installation holes.
- Page 5 ⑤ Connect the 4-core motor connection wire on the controller with the one on the extension tube, buckle the plastic plug (see Figure 3.5) ⑥ Connect the 2-core LED light connection wire on the controller with the one on the extension tube, buckle the plastic plug (optional, see Figure 3.6) Note: safety buckle on male and female plugs should correspond to each other Figure.
- Page 6 4. Motor ① Insert the motor into the extension tube, align their installation holes. Then use two M8*65 hexagonal bolts, flat washers, spring washers, and M8 nylon locking nuts to tighten the structure (see Figure 4.1) Install two M8 nylon Install two locking nuts M8*65...
- Page 7 ⑤ Push the lower decorative cover downward to cover the installations on motor shaft, where there are two pre-installed M4*10 hexagonal screws on extension tube that prevent the lower cover from sliding down. Please be aware there should be a gap between the cover and the motor (see Figure 4.3) Gap between the cover and the motor...
-
Page 8: Controller Wiring Diagram
6. Overall Inspection After installing all the blades, please check the following items: ① The levelness of the fan. If a serious tilt happens in extension tube or fan blades, it is necessary to use a spirit level to readjust the position; ②... -
Page 9: Remote Control
8. Remote control Turn on the power supply under safe condition, when the controller make a long beep sound, the remote control can then be used. See the below instruction. LED light on/off: short on/off: short press press to turn on the to start the fan, default light (op�onal) to running in 1st gear;... - Page 10 FOR PRODUCT PURCHASE: Berton’s Place #46 Sta. Rosa St. Barangay Manresa Quezon City, Philippines. Tel Nos. 8442-3856; 8442-3866; 3448-7674; 3412-6155; 3413-9503; 8282-5049; 8282-5098 Email: iwata@colentco.com, iwata2@colentco.com, Website: www.colentco.com Iwata3@colentco.com, sales_mktg@colentco.com Suite 300 Del Monte Mansion Building Del Monte Avenue corner 210 Speaker Perez St., Quezon City, Philippines...
