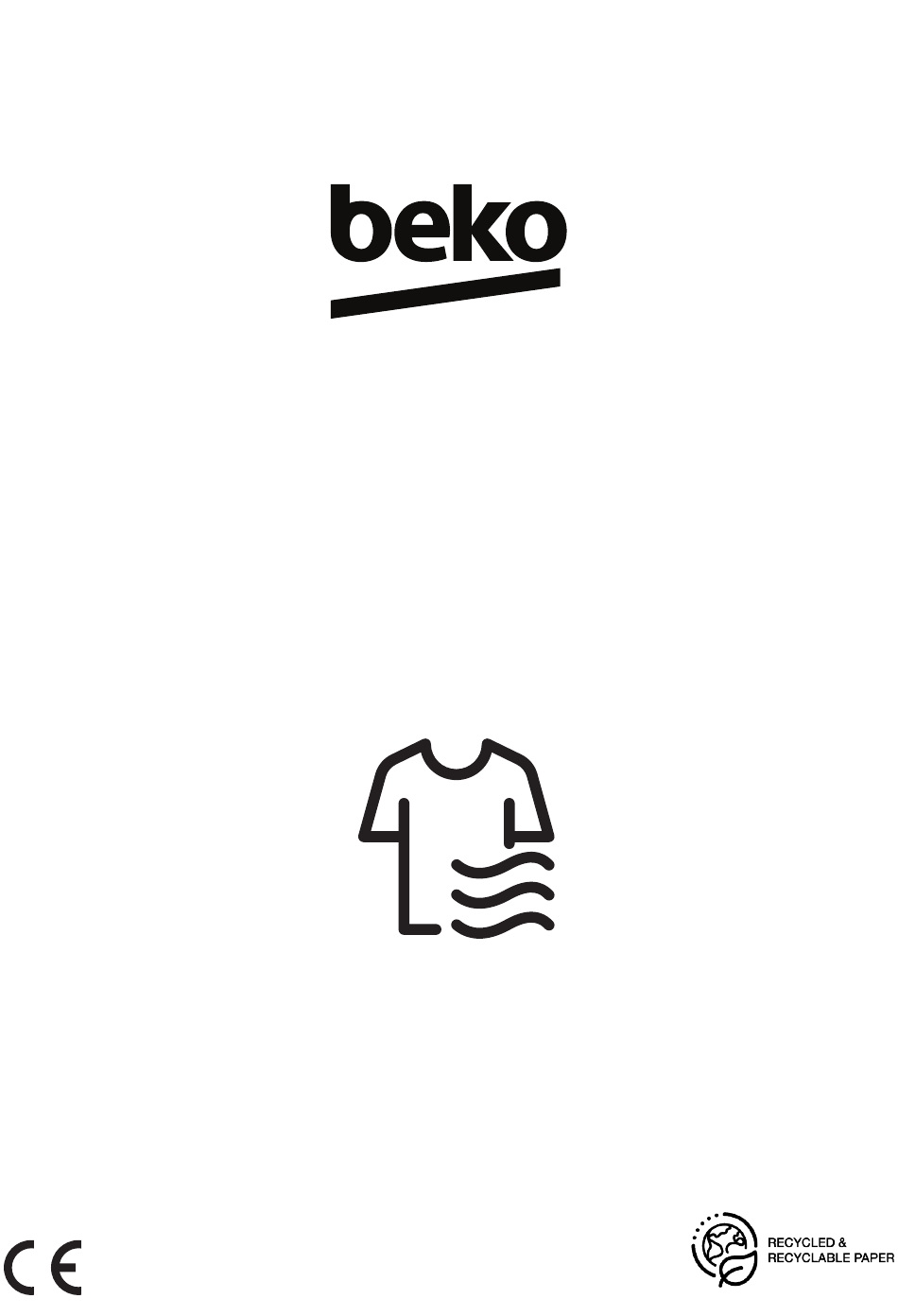

- Page 1 Dryer User Manual B5T4823I3 2960313201_EN/060223.1500...
- Page 2 Dear Customer, Please read this guide prior to use this product! Thank you for choosing Beko product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of the art technology. Please make sure you read and understand this guide and supplementary documentation fully before use.
- Page 3 1 Safety Instructions .................. 5 1.1 Intended use ......................5 1.2 Safety of children, vulnerable persons and pets ............5 1.3 Electrical Safety ....................6 1.4 Transporting safety ....................6 1.5 Installing safety .....................7 1.6 Usage safety ......................8 1.7 Maintenance and cleaning safety ................10 1.8 Lighting safety ....................10 2 Environmental instructions..............
- Page 4 6 Running the product ................19 6.1 Control Panel ......................19 6.2 Symbols ......................19 6.3. Preparation of drying machine ................19 6.4 Program selection and consumption chart ............20 6.5 Auxiliary functions ....................23 6.6 Warning indicators ....................23 6.7 Starting the program ...................24 6.8 Child Lock ......................24 6.9 Changing the program after it is started ..............24 6.10 Cancelling the program ..................25 6.11 End of program ....................25...
- Page 5 1 Safety Instructions This section includes the safety instructions necessary to prevent the risk of personal injury or material damage. • Our company shall not be held responsible for damages that may occur if these instructions are not observed. • Installation and repair operations shall always be performed by Authorized Service.
- Page 6 • Keep the packaging materials away from children. Risk of injury and suffocation. • Keep all additives used with the product away from children. • Before disposing of the product, cut the power cord and destroy the loading door. 1.3 Electrical Safety •...
- Page 7 1.5 Installing safety • To prepare the product ready for installation, ensure that the electrical installation and water drain is proper by checking the information in the user manual. If it is not suitable for installation, call a qualified electrician and plumber to arrange the utilities as necessary.
- Page 8 • Plug the product in a grounded socket that conforms with the voltage, current and frequency values specified in the type label. • Do not plug the product to loose, broken, dirty, greasy sockets or sockets that has come out their seats or sockets with a risk of water contact. •...
- Page 9 • If all items cannot be removed rapidly and cannot be placed where heat can dissipate, do not stop the drying machine before drying cycle completed. • The last part of the drying machine cycle is conducted without heating (cooling cycle) in order to ensure that the items are kept at a temperature that will not harm the items.
- Page 10 1.7 Maintenance and cleaning safety • Do not wash the product by spraying or pouring water on it. Do not use a pressure cleaner, steam cleaner, hose or pressurised gun to clean the product. • Do not use sharp or abrasive tools to clean the product. •...
- Page 11 2 Environmental instructions 2.1 Compliance with the WEEE Regulations and Waste Disposal This product does not contain the dangerous and prohibited materials indicated in the “Regulation on The Control of Waste Electrical and Electronic Equipment” published by Ministry of Environment and Urbanisation of Republic of Turkey. Complies WEEE Regulations.
- Page 12 3 Your drying machine 3.1 Technical specifications Height (Min. / Max.) 84,6 cm / 86,6 cm* Width 59,8 cm Depth 60,5 cm Capacity (max.) 8 kg** Net weight (± %10) 44 kg Voltage Rated power input See type label*** Model code * Min.
- Page 13 3.2 General appearance 3.3 Scope of delivery 1. Water 6. Water discharge filling cap* hose* 2. Filter drawer 7. Pure spare Water* sponge* 8. Odour 3. User Capsule Manual Group* 4. Drying 9. Brush* basket* 1. Top panel 5. Drying 10.
- Page 14 4 Installation • Once the drying machine is installed, the connections must stay stable. After placing the drying machine, ensure that the back wall does not come in contact Read the “Safety Instructions” first! with any extrusion (a water tap, electrical outlet etc.).
- Page 15 4.3 Connection of water drain hose on products with vapour feature If an accessory package is provided with your product, check the You can directly drain accumulated water detailed instructions. through the water drain hose supplied with the product instead of periodically draining the 4.4 Adjusting the stands water collected in the water tank If your dryer has a steam feature,...
- Page 16 4.6 Warning regarding the noise As the product is operated, metallic noises may come from the compressor from time to time, it is normal. When the product is operated, the accumulated water is pumped to the water tank. It is normal to hear pumping sounds from the appliance during this operation.
- Page 17 5 Preparation 5.3 Preparing the laundry to be dried Items such as coins, metal parts, needles, nails, screws, stones etc. may damage the drum group of the Read the “Safety Instructions” first! product or may cause functional operation issues. Therefore check all laundry that will be loaded to the 5.1 Laundry suitable for product.
- Page 18 • If you are using environment friendly filter, you are not required to clean the filter after every cycle. When the environment friendly icon is lit on the screen, change the filter cloth. 5.5 Correct load capacity NOTICE If the laundry in the product exceed maximum load capacity, it may not...
- Page 19 6 Running the product 6.1 Control Panel 1. On/Off/Program Selection button. 5. Low temperature selection and time program selection button. 2. Start / Stand-by button. 6. Audible warning and child lock selection 3. End time selection button. button. 4. Steam sellection button. 7.
- Page 20 6.4 Program selection and consumption chart Table of steam functioned cycles Programmes Programme Description Is a cycle aimed to reduce the wrinkle 1,5 (6 pieces) level on shirts and t-shirts using a steam function. This cycle usually eliminates the need for ironing for casual shirts after 1 (3 pieces) Ready to Wear* drying.
- Page 21 Table of non-steam functioned cycles You may dry your cotton laundry to be ironed Cottons Iron dry 1000 in this program to have them slightly damp for ease of ironing. (Shirt, T-shirt, tablecloth, etc.) You may dry denim pants, skirts, shirts or Jeans 1200 jackets in this program.
- Page 22 Energy consumption values Programmes Capacity (kg) Cottons cupboard dry** 1000 1,99 Cottons Iron dry 1000 1,55 Synthetics cupboard dry 0,70 “If you regularly dry the 8 Kg maximum load of Cottons we suggest to connect the drain hose to prevent the dryer stopping mid-cycle in order to empty the tank” (see Section “Connection to the drain”) *The ability of Ready to Wear cycle to bring 100% cotton, 100% polyester, 100% viscose and %56 cotton - 44% polyester blend shirts in a wearable state (wrinkle release effect) was approved by the Independent Institute of Textile Testing in...
- Page 23 3. Press the End Time selection button and Allergy UK is the trademark of set the delay time you wish. End time LED the British Allergy Foundation. turns on. (When pressed and hold the The Seal of Approval has been button, End Time proceeds non-stop).
- Page 24 Cleaning of filter drawer/ 6.9 Changing the program after it is started heat exchanger You can change the program you selected to Warning symbol flashes periodically to remind dry your laundry with a different program after that filter drawer must be cleaned. the drying machine starts running.
- Page 25 6.13 General Description Do not touch the inner surface of of Steam Programs the drum while adding or removing clothes during a continuing Steam cycles program. The drum surface is hot. You may use the steam function in cycles that are marked with a blue line in your machine 6.10 Cancelling the program panel.
- Page 26 Once you have made the required adjustments, you may start the cycle by pressing the Start/ Hold button. You will need to tap on the ‘Steam’ option on the screen to be able to activate the steam function in Blend, Jeans, Cotton, Economic Cotton, and Synthetic cycles.
- Page 27 7 Maintenance and cleaning • Open both of the lint filters (outer and inner) and remove the fibres with your hands or with the brush on the air deflector. You can clean the hair in the filters with a vacuum cleaner.
- Page 28 • Insert the lint filters on one another and place it back in its place. Clean the metal surfaces of the sensor 4 times a year. Do not use metal tools to clean the sensors’ metal surfaces. Due to fire and explosion hazard, do not use solutions, cleaning materials •...
- Page 29 Pull the brush to the left to remove it. You can use the cleaning brush to clean filter, condensing metal surface and accumulated fibre on If fibre is accumulated in the funnel on the the door. water tank, remove it under running water. Place back the water tank.
- Page 30 You can clean by hand, provided you wear protective gloves. Do not try to clean with bare hands. The condenser fins may damage your hands. Cleaning from left to right may damage the condenser fins. This may lead to drying issues. When the air deflector cover is removed, it is normal to have water at the plastic section in front of the...
- Page 31 8 Troubleshooting The drying operation takes too long. Fibre filter (interior and exterior filters) pores may be clogged. >>> Wash the fibre filters with warm water and dry them The front side of the condenser may be clogged. >>> Clean the front side of the condenser. The ventilation grills in front of the machine may be closed.
- Page 32 The fibre filter cleaning icon is lit. Fibre filters (interior and exterior filters) may be unclean. >>> Wash the filters with warm water and dry them. A layer may be formed in the fibre filter pores, leading to clogging. >>> Wash the filters with warm water and dry them. A layer may be formed in the fibre filter (internal and external filters) pores that leads to clogging.<<Wash the filters with warm water and dry>>...
