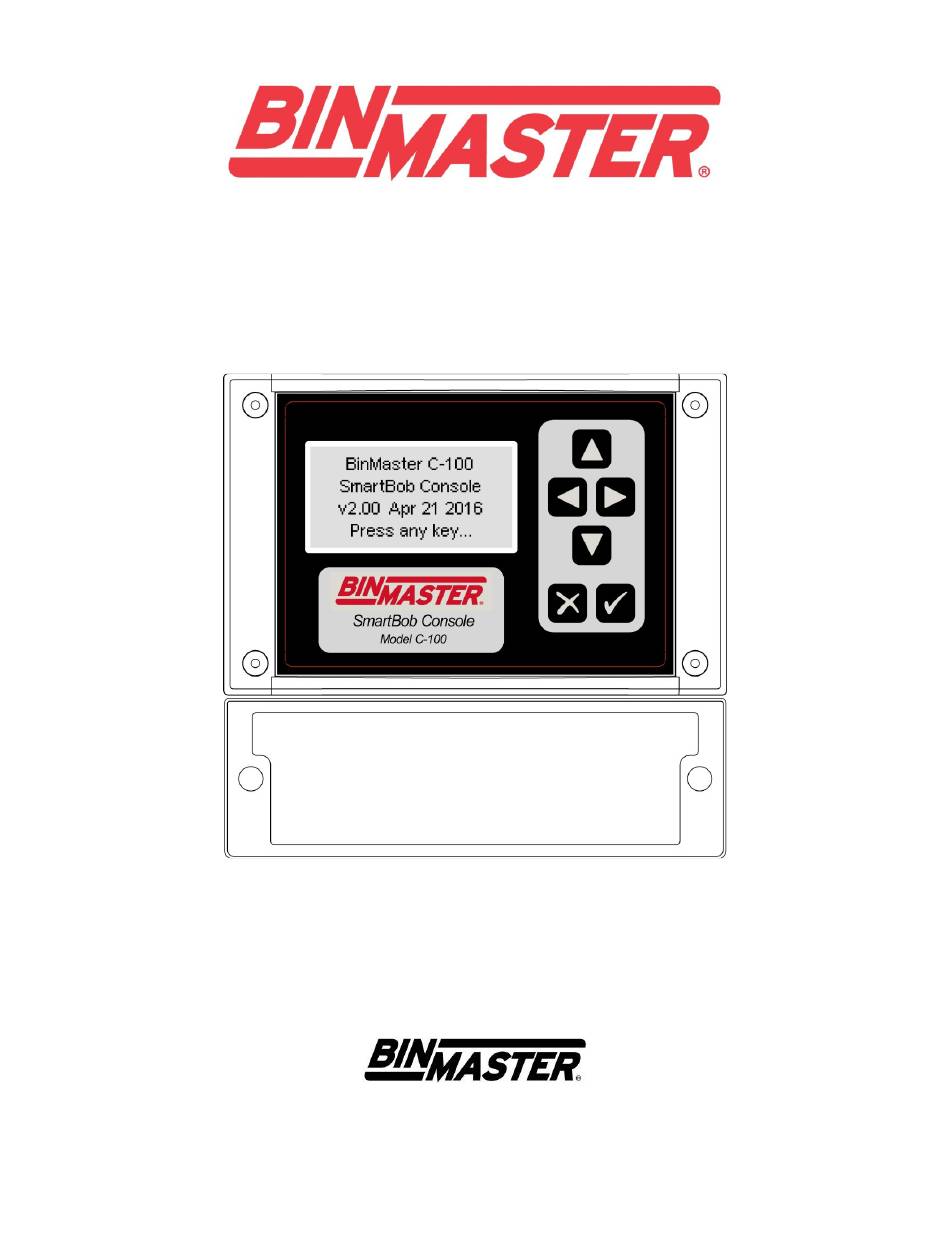

- Page 1 Model C-100 SmartBob Control Console OPERATORS MANUAL Please read thoroughly before installation and operation. Division of Garner Industries 7201 North 98 Street Lincoln, NE 68507-9741 (402) 434-9102 925-0270 Rev H 9/25/2018...
- Page 2 (this page intentionally left blank) 925-0270 Rev H...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY SUMMARY…………………………………….………………………………………………………..…4 1.0 INTRODUCTION……..…………………………………………………………………………………………5 2.0 SPECIFICATIONS……………………………………………………………………………………………...5 3.0 INSTALLATION………………………………………………………………………………………….……...7 3.1 Mounting…………..………………………………………………………………………………….7 3.2 Connections and Wiring……………………………………………………………………....9 3.3 RS-485 Network Requirements……………………………………………………………….……12 3.4 Lightning/Surge Protection…………………………………………………….………………..14 3.5 Wiring Diagram…………………………………………………………………...………………….15 4.0 OPERATION and SETUP….……………………..………………………………………………………….16 4.1 Keypad………………………………………………………………………………..………………16 4.2 Menu System………………………………………………….……………………………………..16 4.3 Messaging System……………………………………………………………………………..……24 5.0 WARRANTY AND SERVICE…………….…………………..……………………………………………..25 5.1 Limited Warranty……………………………………………………………………………………..25 5.2 Technical Support, Customer Service and Repair……………………………………………….25 6.0 DISPOSAL……………………………………………………………………………………………………..26... -
Page 4: Safety Summary
Safety Summary Review the following safety precautions to avoid injury and prevent damage to the equipment. The product should be installed, commissioned, and maintained by qualified and authorized personnel only. Install according to installation instructions and comply with all national and local codes. Use electrical wire that is sized and rated for the maximum voltage and current of the application. -
Page 5: Introduction
485 network. The Model C-50 is for interfacing the SmartBob system to a PLC or DCS system. Each Model C-50 expansion console supports up to 6 analog I/O cards, each with 4 ports, for a total of 24 analog I/O ports per C-50. With five C-50’s each SmartBob sensor can have its own I/O port. Each input can be used for externally starting a measurement and each output provides for a 4-20mA current output of the last measurement. - Page 6 Interval Timer for Automatic Measurements Any number of SmartBobs on the network can be configured for an automatic measurement with a time between measurements ranging from 0 minutes (continuous) to 49 hours and 59 minutes in 1 minute increments. Vessel Parameters Vessel Height in feet: 1.00 to 299.99 in 0.01 increments Vessel Height in meters:...
-
Page 7: Installation
Physical Dimensions: 6.5 x 6.3 x 3.5 inches (166 x 160 x 89 mm) Weight: 1.5 lbs (0.7 kg) Enclosure: Polycarbonate, light industrial gray. Ingress Protection Rating NEMA Type 4x 3.0 Installation 3.1 Mounting When locating a position to mount the C-100 SmartBob control console, make sure to allow for adequate air flow around the unit and don’t place it near any equipment that produces excessive heat. - Page 8 3.1.1 Screw Mount There are three screw holes that can be used for mounting the C-100 SmartBob control console as shown in the diagram below. You will need one #8 wood screw at least 3/8” long and two #8 wood screws at least 5/8”...
-
Page 9: Connections And Wiring
3.2 Connections and Wiring A minimum configuration will require a three-wire power connection and a three-wire RS-485 connection to the SmartBob network. Optionally, there may be a two-wire 4-20mA connection, a two-wire external start connection and another three-wire RS-485 connection for the Expansion network. All wiring is fed through water-tight cordgrips and connected inside the lower wiring cabinet to pluggable terminal blocks mounted on the printed circuit board. - Page 10 3.2.2 SB-485 for SmartBob Network The SB-485 connection (CN7) is a three wire terminal block located near the center of the printed circuit board and is for connection to the SmartBob RS-485 network. Two terminal screws marked + and – should be connected to the positive and negative wires of the SmartBob network cable.
- Page 11 SH should be connected to the shield of the RS-485 network cable. Do NOT connect the shield to earth. These three connections at this terminal block are optional and only needed when connecting BinMaster C-50 expansion units to the system.
-
Page 12: Rs-485 Network Requirements
Troubleshooting communications errors can be expensive and time consuming, so BinMaster strongly encourages you to take adequate time in understanding and installing the RS-485 networks and to use quality cabling and connection techniques. - Page 13 Termination All BinMaster RS-485 networks must be terminated at both ends with a 120Ω resistor for proper operation and reliability. Normally this is done by the two devices connected at the very ends of the network cable. On some devices the termination is set ON or OFF by a slide switch labeled “NTR”...
-
Page 14: Lightning/Surge Protection
4. Consider using BinMaster wireless solutions that not only greatly protect your investment from lightning but can reduce installation time and eliminate the need for running long lengths of RS- 485 cable. Call BinMaster and speak with one of our applications specialist for more information on our wireless solutions. -
Page 15: Wiring Diagram
3.5 Wiring Diagram 925-0270 Rev H... -
Page 16: Operation And Setup
4.0 Operation and Setup The C-100 SmartBob control console is controlled and operated through the use of a 6-button icon-based keypad and a simple intuitive text-based menu system. The menu system is user-selectable in either the English or Spanish languages. 4.1 Keypad The keypad consists of 6 membrane style keys appearing as shown to the right. - Page 17 Product more... up to 120 Setup SB-485 Protocol SB-485 Termination Auto Add/Remove Add/Remove Units of Measure Weight Calculations Vessel Setup C-50 Setup I/O Assignment 4-20mA Output 4-20mA Error Interval Timer Measurement Format Measurement Type Access Code Language/Idioma Info/About 925-0270 Rev H...
- Page 18 4.2.1 Main Menu The Main menu has two selections: Measure/View and Setup. Select Measure/View if you want to take an immediate measurement or view the results of the last measurement. Select Setup if you need to change user display preferences, setup vessel parameters, SmartBob network settings or configure the Expansion network.
- Page 19 SB-485 Termination This is a menu for setting whether the SmartBob network termination is switched In or Out of the network. If the console is the final device connected at either end of the SmartBob network choose In, otherwise choose Out. The default setting is In. The termination must be set prior to running Auto Add/Remove or any measurement process.
- Page 20 If weight calculations are disabled, this is simply for setting the overall height of the vessel, sensor offset and maximum drop. The first screen is for selecting the vessel(s) to be configured, the second screen is for entering the vessel height of the selected vessel(s), the third screen is for setting a headroom offset and the fourth for setting maximum drop distance.
- Page 21 Density C-50 Setup This is a menu for automatic setup of Model C-50’s connected to the expansion port (EX-485). The operator can choose between Enabled and Disabled. The operator must use Add/Remove or Auto Add/Remove prior to making this selection. The default setting is Disabled.
- Page 22 SmartBob sensor in this list, but it defaults to the first address available in the list. If C-50 setup is enabled, then the operator will use this menu for viewing the current assignments between multiple SmartBob sensors and multiple I/O ports located on the C-50 network. On the left is the address of the SmartBob sensor and to its right is the I/O port that is assigned to it.
- Page 23 keys to select a digit by repositioning the cursor and the keys to adjust the selected digit. Once all four digits have been entered, press the key. After the interval time has been set, a menu appears for assigning SmartBobs to the automatic measurement process.
-
Page 24: Messaging System
“One or more enabled expansion consoles are offline.” This message will be displayed if C-50 setup is enabled and one or more previously detected C- 50 expansion consoles are not responding to communication requests. The operator should verify all Expansion network wiring and that all C-50s on the network are powered. -
Page 25: Warranty And Service
The buyer shall have no other remedy. All special, incidental and consequential damages are excluded. The buyer must deliver the product under warranty prepaid to the factory. BinMaster’s obligation is limited to the cost of material and labor to repair or replace, and does not include transportation expenses. -
Page 26: Disposal
6.0 Disposal This product consists of materials that may be recycled by certain recycling companies. It uses recyclable materials and is designed to be easily separated. Consult local authorities for proper disposal locations. 925-0270 Rev H... -
Page 27: Declaration Of Conformity
Lincoln, NE 68507-9741 Phone: 402-434-9100, Fax: 402-434-9133 BinMaster declares that all models of the SBR II level control devices as listed below comply with the following directives and harmonized standards. This product if installed, operated and maintained as described in this manual will provide a safe and reliable level measurement device for a variety of materials.
