Rapidrop PDV-02V2 Datasheet

Data Sheet 7.22
Issue E
Priority Demand Valve

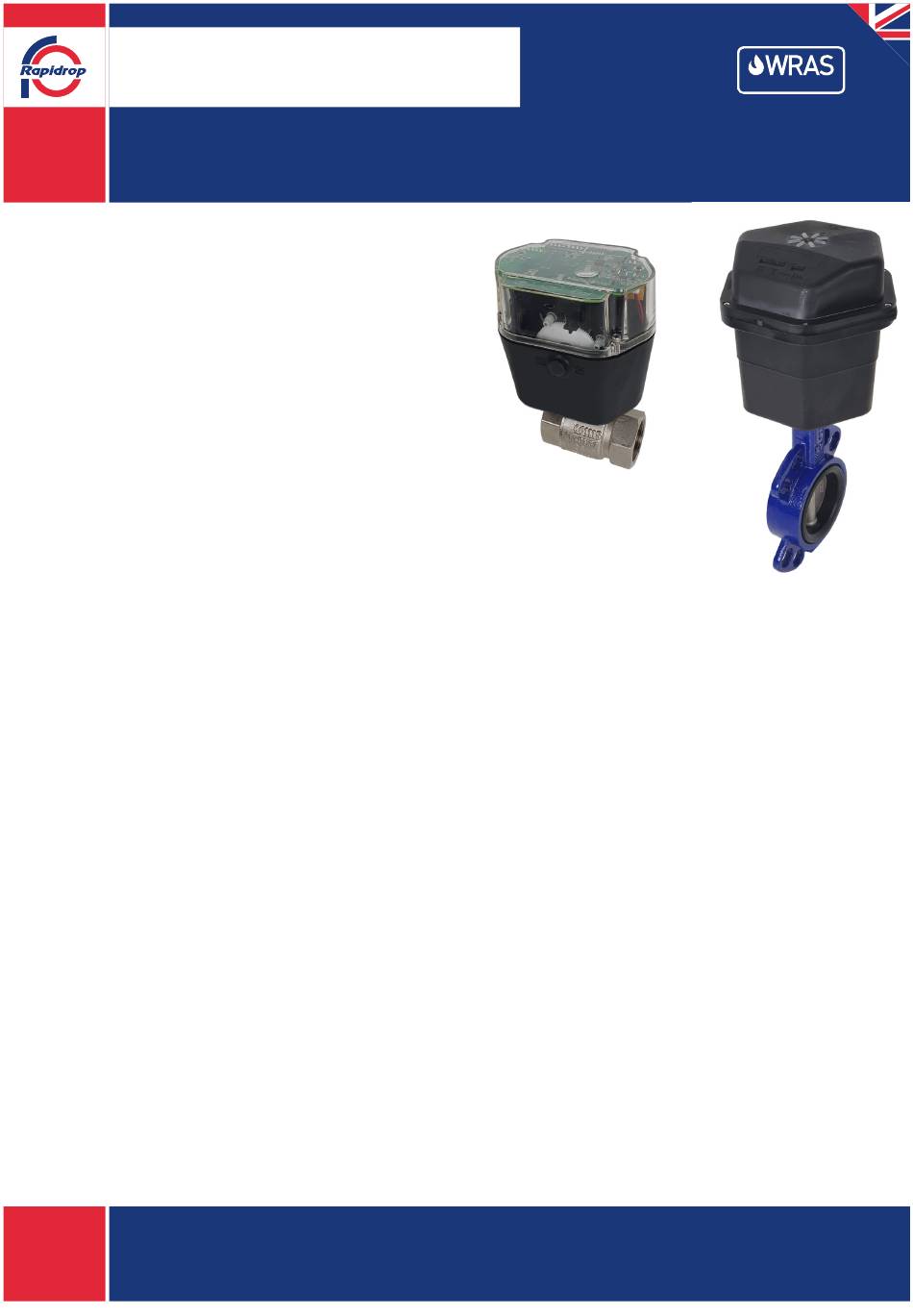

Fig. PDV-02V2
Product Description
Rapidrop's innovative electrically driven Priority Demand valve
for use with mains water supply or stored water supply residential
sprinkler systems.
Designed to meet BS 9251: 2021 - Valve for isolating domestic
supply in the event of sprinkler activation.
Upon activation of a flow switch/alarm relay, the valve will
automatically close the domestic supply allowing all water to flow
to the sprinkler system and remain closed until manually reset.
Upon activation of a low level tank switch (if installed) the valve will
automatically close and re-open once the low level tank switch
resets itself.
The priority demand valve is available in ball or butterfly type
body(depending on connection) attached to a specific actuator
(dependant on size) The appropriate PDV control box will need to
be ordered separately.
The priority demand valve is available in two different configurations:
- Single PDV - Used in systems designed with a single priority
demand valve.
- Multiple PDV - Used in systems designed with multiple priority
demand valves. Up to 25 PDVs can be simultaneously activated
through a single flow switch/ alarm relay.
Please see DS 7.23
Features
Ball Valve
• Full Bore
• WRAS approved
Butterfly valve
• Stainless steel disc, EPDM liner
• Epoxy coated ductile iron body
• WRAS approved
Actuator
• Failsafe close operation (operated by an internal replaceable
lithium-Ion battery)
• End of travel relay switch for valve positioning (BMS connection)
• Visual LED indicator for positional identification
• Maximum Allowable 'Stem Torque' to protect valve
• External GSA Connectors (For RAS actuator, M20 Glands for RAM
actuator)
• IP67 Rated Actuator
• Maximum of 5W power consumption (24VDC)
DS: 7.22
Issue E
24/10/2024
© 2024 Rapidrop
Rapidrop Global Ltd reserves the right to change the design, materials and specifications without notice to continue product development
Rapidrop Global Ltd
T: +44 (0) 1733 847 510 F: +44 (0) 1733 553 958
e: rapidrop@rapidrop.com
w: www.rapidrop.com
Working Pressure
Max. Working Pressure 16 bar (232 psi)
(Higher pressure range available on request)
Working Temperature Range
0°C to 70°C (14ºF to 158ºF)
Connections
Ball valve (DN25 to DN50)
• BSP female thread according to ISO 228/1
Butterfly valve (DN65 to DN125)
• Semi lug wafer pattern to suit PN16 Flange according to
BS EN 1092 and Table D/E flanges according to BS 10
Operation
Rapidrop Priority demand valve is a power to open, power to close
valve. In the event of power loss the valve will failsafe to the closed
position.
APPROVED PRODUCT
BS9251: 2021
Page 1 of 9
