Cocraft HT-21G Instruction Manual

Hexagonal crimping tool
Art. no. 36-9633 Model
Please read the entire instruction manual before using the product and
then keep it for future reference. We accept no liability for any errors
in the text or images and we reserve the right to make any necessary
changes to technical data. If you have technical problems or other
questions, please contact our customer service team.
Using the tool
The tool is intended for crimping non-insulated cable terminals
onto multi-core and single core cables with a cable area of
6/10/16/25/35/50 mm².
Note: Check that the cable area, cable terminal marking and crimping
jaws are compatible with one another before crimping.
50 50
1

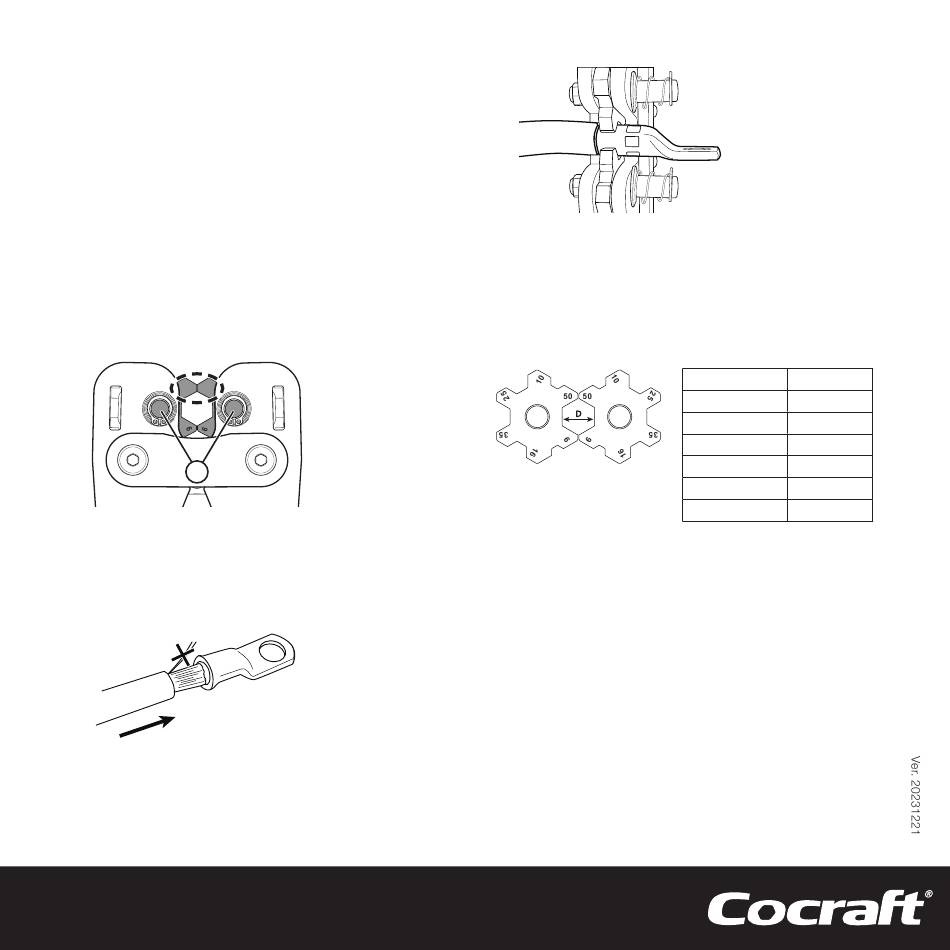

1. Open the tool handle.
2. Press the stops (1) and turn the crimping jaws to select
the required area. Check that the markings match and are
aligned with one another.
3. Peel back the outer sheath of the cable so that it fits right into
the terminal. Make sure that you do not cut off any strands of wire.
4. Insert the cable into the terminal. Check that no strands of wire are
outside the terminal.
HT-21G
5. Put the terminal between the jaws of the tool. (If the terminal has
a groove or gap, make sure it is positioned against one of the flat
surfaces of the jaws.)
6. Press the handles together. Some terminals need two crimps next
to one another that do not overlap.
Crimping measurements
D
Cleaning and maintenance
Clean the product by wiping it with a damp cloth. Use only mild
cleaning agents, never solvents or corrosive chemicals.
Responsible disposal
The product should be disposed of in accordance with local regulations.
If you are unsure about what to do, contact your local council.
Specifications
Suitable
6/10/16/25/35/50 mm²
cable terminals
390 mm
Length
Weight 1.2 kg
Crimping area Distance (D)
6 mm² 5.2 mm
10 mm² 5.8 mm
16 mm² 7.0 mm
25 mm² 8.17 mm
35 mm² 9.9 mm
50 mm² 11.3 mm
