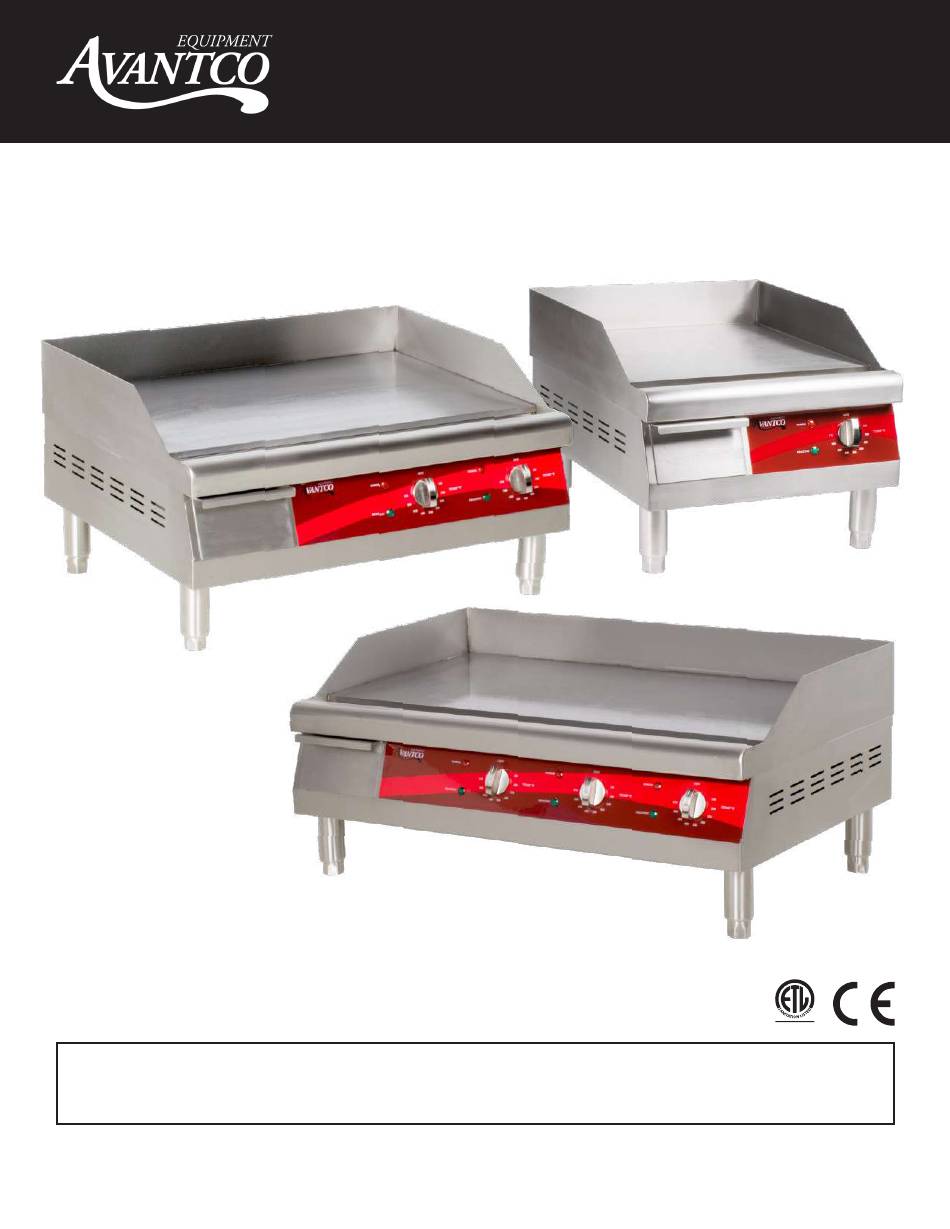

- Page 1 User Manual User Manual Electric Griddles Intertek Models: 177EG16N, 177EG24N, 177EG30N, 177EG36N, 177EG48N 10/2021 Please read and keep these instructions. Indoor use only. www.AvantcoEquipment.com...
-
Page 2: Specifications
All units come with a 6 ft. commercial cord except 177EG36N and 177EG48N which must be hardwired Model Voltage Power Dimensions (LxWxH) Temp. Range Net Wt. Shipping Wt. Plug Type 177EG16N 120V AC 1750W 120°F - 570°F 52 lbs. 62 lbs. NEMA 5-15P 16" x 19.75" x 13"-15" 177EG24N 208V/240V 2675/3560W 24"... -
Page 3: Operation
User Manual Next, carefully wipe away the melted oil with a clean, soft cloth and rinse with a mixture of 1/4 cup vinegar to 1 qt. water. To season, spread unsalted solid shortening or liquid frying compound evenly over the entire griddle surface. Turn all griddle burners to medium and wait until the shortening begins to smoke, then turn the burners OFF. - Page 4 User Manual Parts Key Parts Diagram # Part Name Replacement Part Item # Power Cord 177COPCORD (EG16N), 177COPCORD2 (EG24N & EG30N) Power Cord Clip Body Terminal 177EGTERMNL1 (EG16N), 177EGTERMNL2 (EG24N, EG30N, EG36N) Heating Element 177EGELEM16 ( EG16N), 177EGELEM24 (EG24N), 177EGELEM30 (EG30N), 177EGELEM36 (EG36N) Insulation Heating Element Holder...
-
Page 5: Circuit Diagrams
User Manual Circuit Diagrams EG16N EG24N www.AvantcoEquipment.com... - Page 6 User Manual EG30N EG36N www.AvantcoEquipment.com...
- Page 7 User Manual 图纸属性 生产图 EG48N Ground Ground Wire Wire Thermostat Thermostat Thermostat Thermostat Heating Heating Heating Heating light light light light Resistance Resistance Resistance Resistance AC Contactor AC Contactor AC Contactor AC Contactor AC Contactor AC Contactor AC Contactor AC Contactor POWER POWER POWER...
