Summary of Contents for Carbatec CT-DTJ300

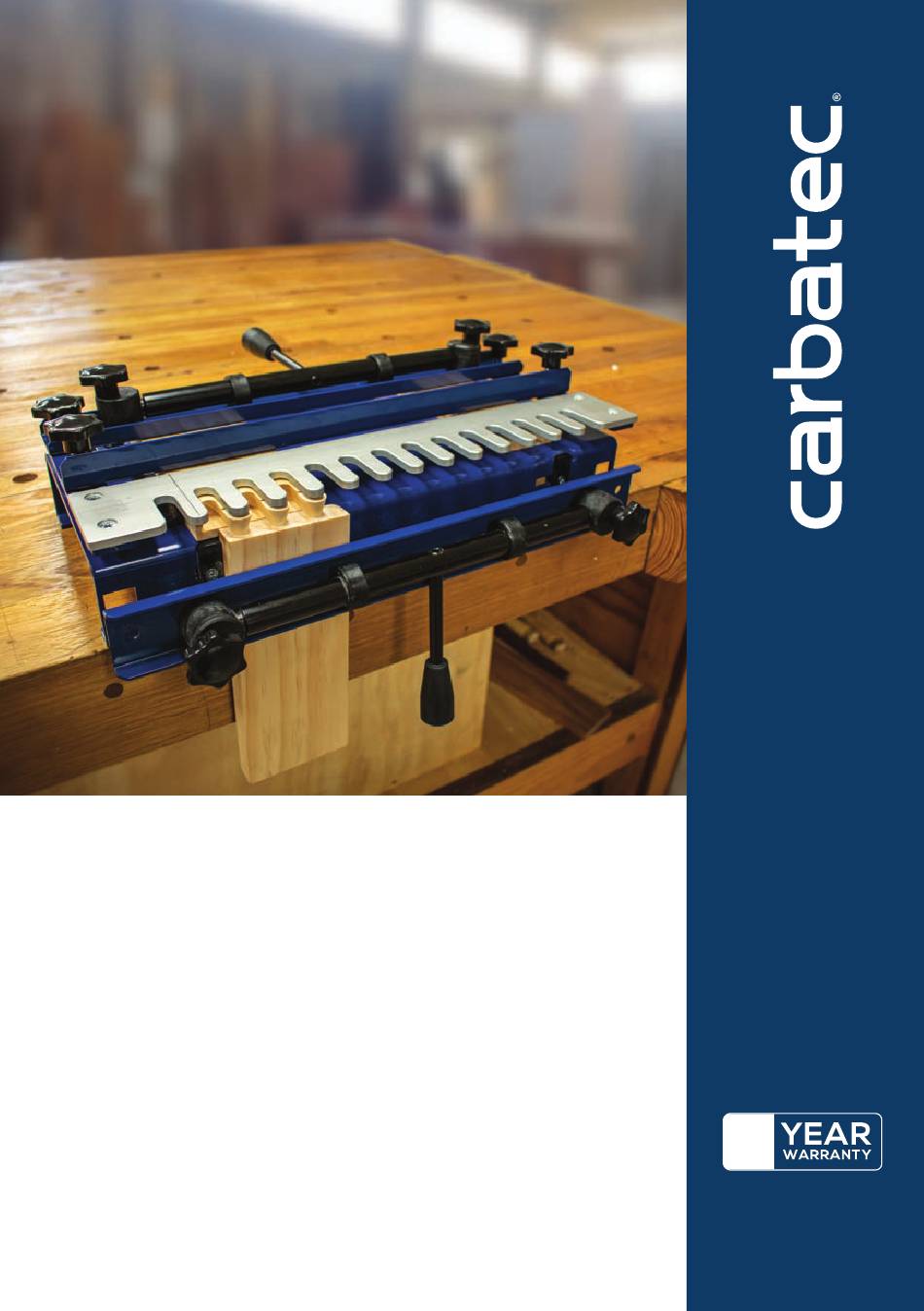

- Page 1 CT-DTJ300 CARBATEC HALF BLIND 300MM DOVETAIL JIG I N S T R U C T I O N S M A N U A L ca r b a tec.c om . au...
- Page 2 Carbatec to keep you woodworking, as promised. We look forward to sharing in your woodworking journey! If you have any questions about our products or service, please call us on 1800 658 111 or email us at info@carbatec.com.au Find us on social media facebook.com/Carbatec instagram.com/Carbatec...
-
Page 3: What's In The Box
The following items are provided in 1 carton: 1/4" shank 14° dovetail router bit CT-DTJ300 HALF BLIND 300 MM DOVETAIL JIG Pre-assembled jig Adjustment handles 1/4" shank 14° dovetail router bit If you cannot find an item on this list, carefully check around and inside the machine and components. -
Page 4: Safety Instructions
CT-DTJ300 SAFETY INSTRUCTIONS This instruction list is not exhaustive and is not a substitute for common sense and best practises. Woodworking tools and machinery are potentially dangerous, it is important to observe all safety instructions whilst operating this equipment. •... - Page 5 CT-DTJ300 OVERVIEW OVERVIEW 1/4" shank 14° dovetail router bit CT-DTJ300 HALF BLIND 300 MM DOVETAIL JIG 1 x Comb 2 x Eccentric bar handle 1 x Backstop 2 x Eccentric bar 2 x Backstop fixing screw 1 x Top clamp bar...
-
Page 6: Specifications
5/8" blind dovetails require an optional router bit with bearing. 1/2" box joints require an optional router bit with bearing. For details on available and replacement router bits for this jig, search CT-DTJ300 on our website, www.carbatec.com.au OVERALL SIZE 270 x 440 x 160 mm (LxWxH) - Page 7 INSTRUCTIONS CT-DTJ300 SET UP INSTRUCTIONS. EXAMPLE OF A DRAWER DOVETAIL JOINT. Fit the clamp handles to the jig. Mount the jig to a firm and stable work bench at a comfortable height, remembering that the router sits on top of the jig. The jig must be mounted close to the front edge so as to leave clear passage for the timber to the front vertical clamp.
- Page 8 CT-DTJ300 Offset the left-hand vertical Fig. A3 stop (B) 1/2" to the right of the top- left horizontal stop (A). (Fig. A3 & A4) Mirror these two adjustments on the right-hand side of the jig. Ensure that 90° alignment is maintained with the front edge of the jig at all times.
-
Page 9: Cutting Instructions
INSTRUCTIONS CT-DTJ300 CUTTING INSTRUCTIONS Fig. B1 With the router positioned on the finger template but with the cutter clear of the work, start the router. Now with just a light cut run the router from right to left across the work, just touching the end of each finger. - Page 10 CT-DTJ300 BOX JOINT Set both pieces of wood to be jointed in the front vertical clamp, one positioned in line with but to the left of one of the fingers, the other in line but to the right of one of the fingers, this will give you the offset for the joint.
-
Page 11: Year Warranty
CT-DTJ300 1 YEAR WARRANTY ii. you must include in the email the following A. We warrant that this Carbatec product will be information: free from defects caused by faulty workmanship or faulty materials for a period of 1 year from 1. - Page 12 CT-DTJ300 C ar b a te c P t y Ltd E info@carbatec.com.au AU: 1800 658 111 NZ: 0800 444 329 1/364 New Cleveland Rd, Tingalpa QLD 4173, Australia ABN 84 010 706 242 c a r b ate c.com .au...
