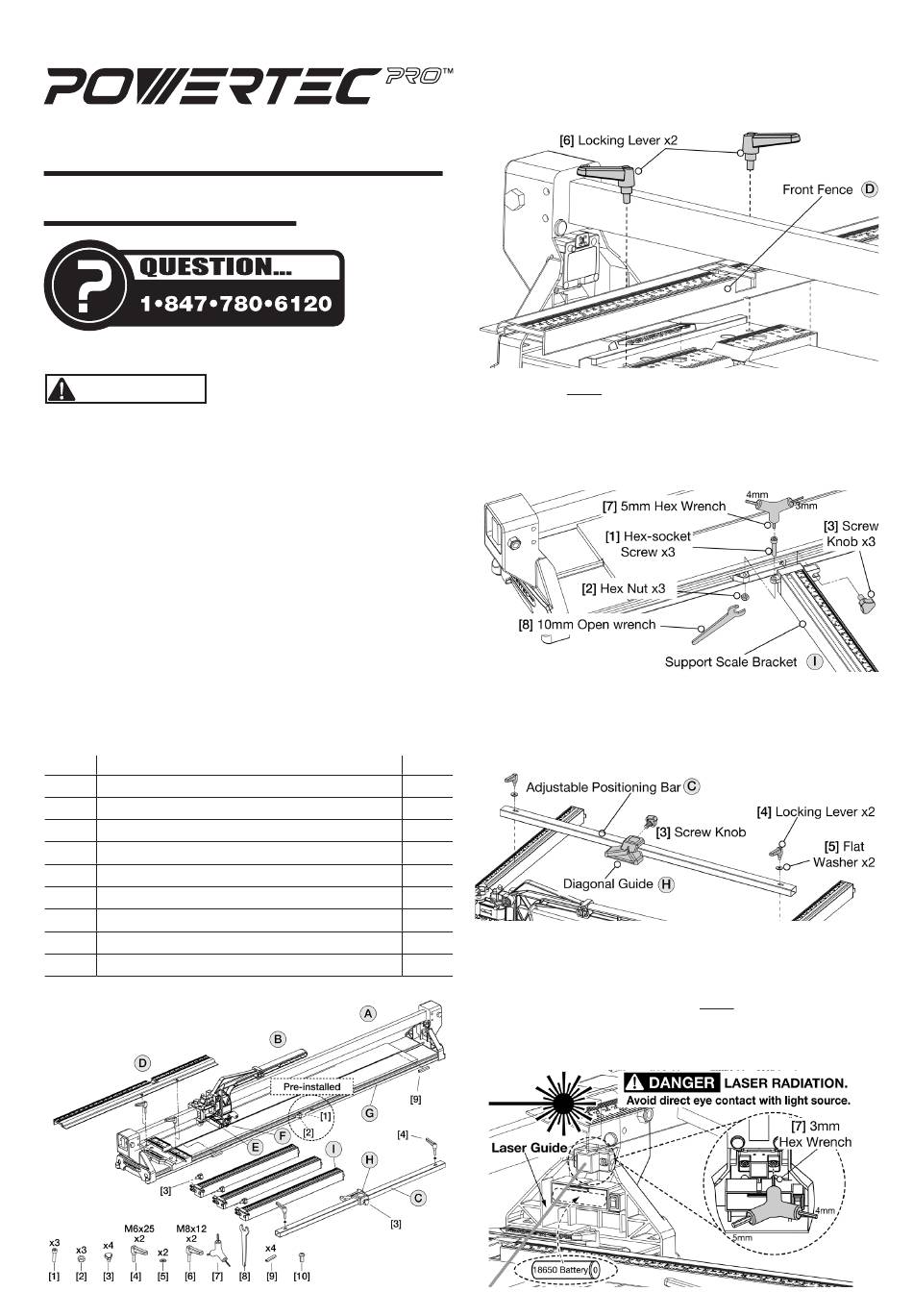

INSTRUCTION SHEET
48" Manual Tile Cutter
with Laser Guide
WARNING
For your own safety, read the instruction manual before
using any tool. Failure to heed these warnings may result
in serious personal injury and damage to the tool and
the accessory.
• Before using the Tile Cutter, read and follow all instructions
and safety information provided.
• Always keep hands clear during operation.
• Before making adjustments to the Tile Cutter, ALWAYS
verify hands are at a safe distance from the cutter wheel.
SPECIFICATIONS
Maximum Rip Cut . . . . . . . . . . . . . . . . . . . . 48" (1220mm) Tile
Maximum Diagonal Cut . . . . . . . . . . . . . . 34" (863.6mm) Tile
Maximum Tile Thickness . . . . . . . . . . . . . . . . .
UNPACKING CONTENTS
NOTE: Check for shipping damage. Check immediately
whether all parts and accessories are included.
ITEM DESCRIPTION
A
Track Rail
B
Sliding Handle
C
Adjustable Positioning Bar
D
Front Fence
E
Breaker Bar
F
Cutter wheel
G
Base Assembly
H
Diagonal Guide
I
Tile Support Scale Brackets
Figure 1
ASSEMBLY
1. Remove the pre-installed Locking Levers [6] from base.
2. Place Front Fence (D). Secure using Locking Levers.
Figure 2
3. Use 3-way 5mm Hex Wrench [7] and 10mm open wrench
[8] to remove pre-installed Hex-Socket Screws [1] and Hex
Nuts [2] from base. Attach 3 Support Scale Brackets ( I )
with Hex-socket Screw [1] and Hex Nut [2] on the left side
and Screw Knob [3] on the right side.
Figure 3
.59" (15mm)
4. Clip Diagonal Guide (H), secure with Screw Knob [3]
onto Adjustable Positioning Bar (C). Attach Adjustable
Positioning Bar (C) using one Flat Washer [5] and one
Locking Lever [4] on each side. Do not tighten at this time.
Figure 4
QTY
1
1
1
1
1
1
1
LASER GUIDE
1
The POWERTEC PRO 71980 is equipped with a (green light)
3
laser guide. Fully charge and insert battery before use.
To adjust Laser Guide: Use 3-way 3mm Hex Wrench [7] to
loosen the screws. Move Laser Guide right or left to adjust the
location for alignment—then tighten the screws.
Figure 5
Model No. 71980
(Rechargeable battery and charger included)
24-0906
