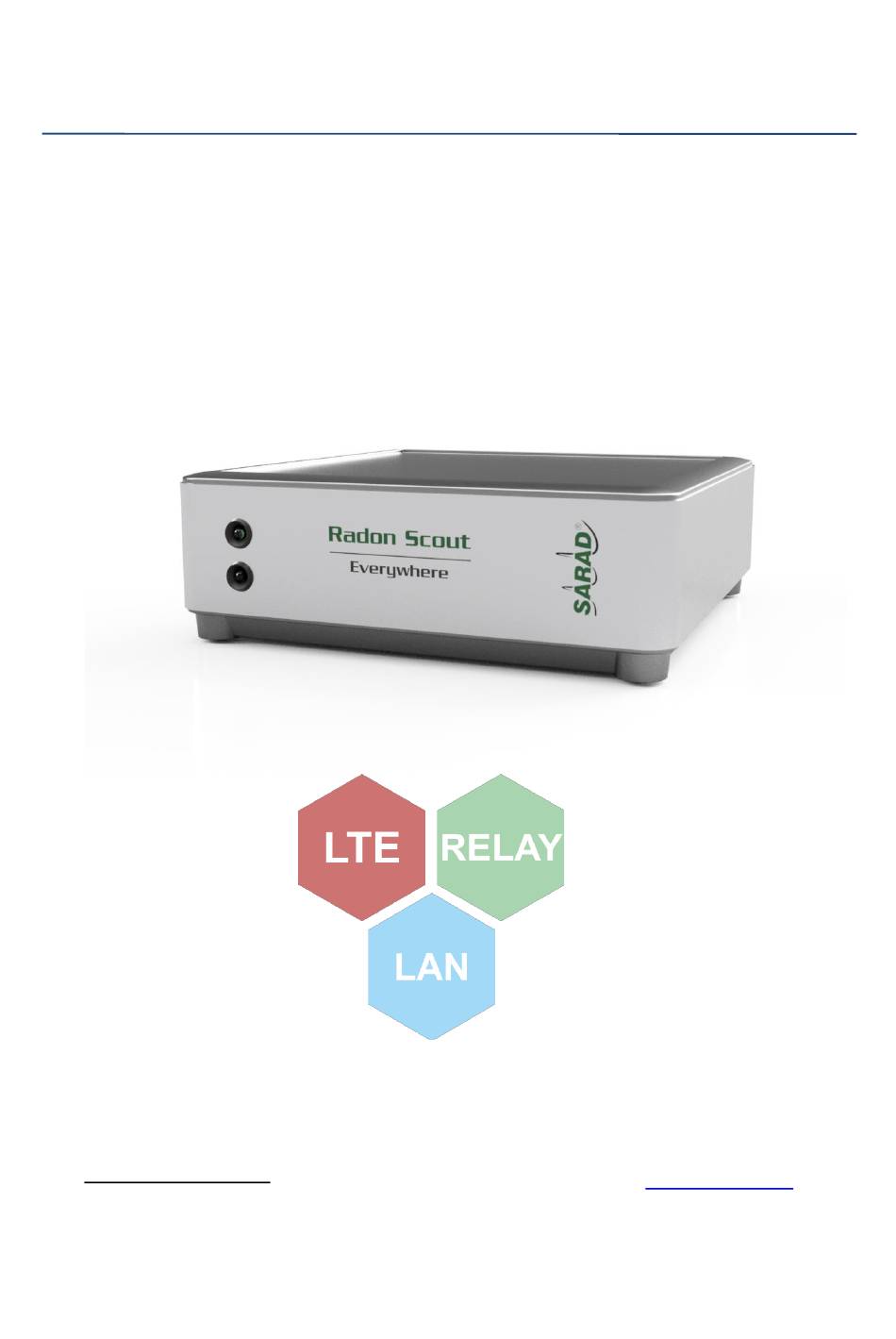

- Page 1 Manual Radon Scout Everywhere Remote controlled radon sensor with switch output Version March 2025 Referenced documents SARAD GmbH www.sarad.de Manual Radon Vision Wiesbadener Straße 10 info@sarad.de Manual RegServer 01159 Dresden Germany...
-
Page 2: Table Of Contents
USB (SARAD-HUB) ..........................9 Switch output ............................. 10 SUPPLEMENTARY EQUIPMENT ....................11 Pressure sensor ..........................11 gas sensor ........................... 11 DISPOSAL INSTRUCTIONS ......................12 TECHNICAL DATA ......................... 13 Radon Scout Everywhere ........................13 SARAD GmbH 2025 Manual Radon Scout Everywhere 07-03-2025.docx... -
Page 3: Introduction
(e.g. residential areas). Like all of our measurement instruments the Radon Scout Everywhere is designed locally in Dresden, GERMANY. It is also manufactured and calibrated at the Dresden site. -
Page 4: The Instrument
Radon Scout Everywhere The instrument Controls Fig. 1. Front panel controls Fig. 2. Back panel controls SARAD GmbH 2025 Manual Radon Scout Everywhere 07-03-2025.docx... -
Page 5: Power Supply
Radon Scout Everywhere Power supply The Radon Scout Everywhere requires an external 5V power supply unit. During normal operation the power consumption is approx. 2 W. The power connection socket is shown in Figure 2 and is located on the back panel of the device, labelled „DC“. -
Page 6: Selection Of The Right Location For Exposure And Installation
Selection of the right integration interval It is possible to adjust the sampling interval of the Radon Scout Everywhere between 1 and 255 minutes. From the physical point of view, it makes no sense to choose intervals shorter than 30 minutes because the response time of the instrument is in that order. -
Page 7: Measurement
(over a longer period of time) are required for data analysis, multiple saved files with measurement results belonging to the same measuring device can be opened at once in the Radon Vision software. SARAD GmbH 2025 Manual Radon Scout Everywhere 07-03-2025.docx... -
Page 8: Led Indicators
Radon Scout Everywhere LED indicators The Radon Scout Everywhere has two coloured LEDs on the front panel to indicate the status of the units. The meaning of the signals is explained in Table 1 below. Green Unit online upper Power supply connected... -
Page 9: Communication Interface
USB hub and the maximum length of the USB cable. The SARAD-HUB port can also be used to connect an external LTE modem (e.g. with a USB extension cable) if this results in better signal quality. -
Page 10: Switch Output
Radon Scout Everywhere Switch output The Radon Scout Everywhere comes with switch output which can be used directly or indirectly for signaling (e.g. alarm) and ventilation control. The potential-free contact is short-circuited at the end of the measurement cycle when the radon concentration has exceeded the limit value (alarm threshold) in this interval. -
Page 11: Supplementary Equipment
Radon Scout Everywhere Supplementary equipment According to the needs of the customer the Radon Scout Everywhere can be equipped with additional sensors for example: pressure or CO2 sensor. Pressure sensor The barometric pressure can be measured in a range from 800 mbar to 1200 mbar. The sensor unit is fully calibrated and features temperature compensation. -
Page 12: Disposal Instructions
“electronic waste” at appropriate collection points or handed to the manufacturer at the end of their service life for proper disposal. If necessary, they have to be decontaminated before. SARAD GmbH 2025 Manual Radon Scout Everywhere 07-03-2025.docx... -
Page 13: Technical Data
Non dispersive infrared (NDIR) Range 400 ppm … 5000 ppm Accuracy < 5 % ± 50 ppm Response time 10 min Remark Automatic calibration with respect to outdoor CO2 level Device SARAD GmbH 2025 Manual Radon Scout Everywhere 07-03-2025.docx... - Page 14 Base unit with integrated LTE modem Accessories Integrated SIM card (optional) Power adapter Manual & software (digital) Radon calibration with certificate USB extension cable (optional) Cable for switch output (optional) __________________ 1) Available as an option SARAD GmbH 2025 Manual Radon Scout Everywhere 07-03-2025.docx...
