Slim 110 installation guide
1

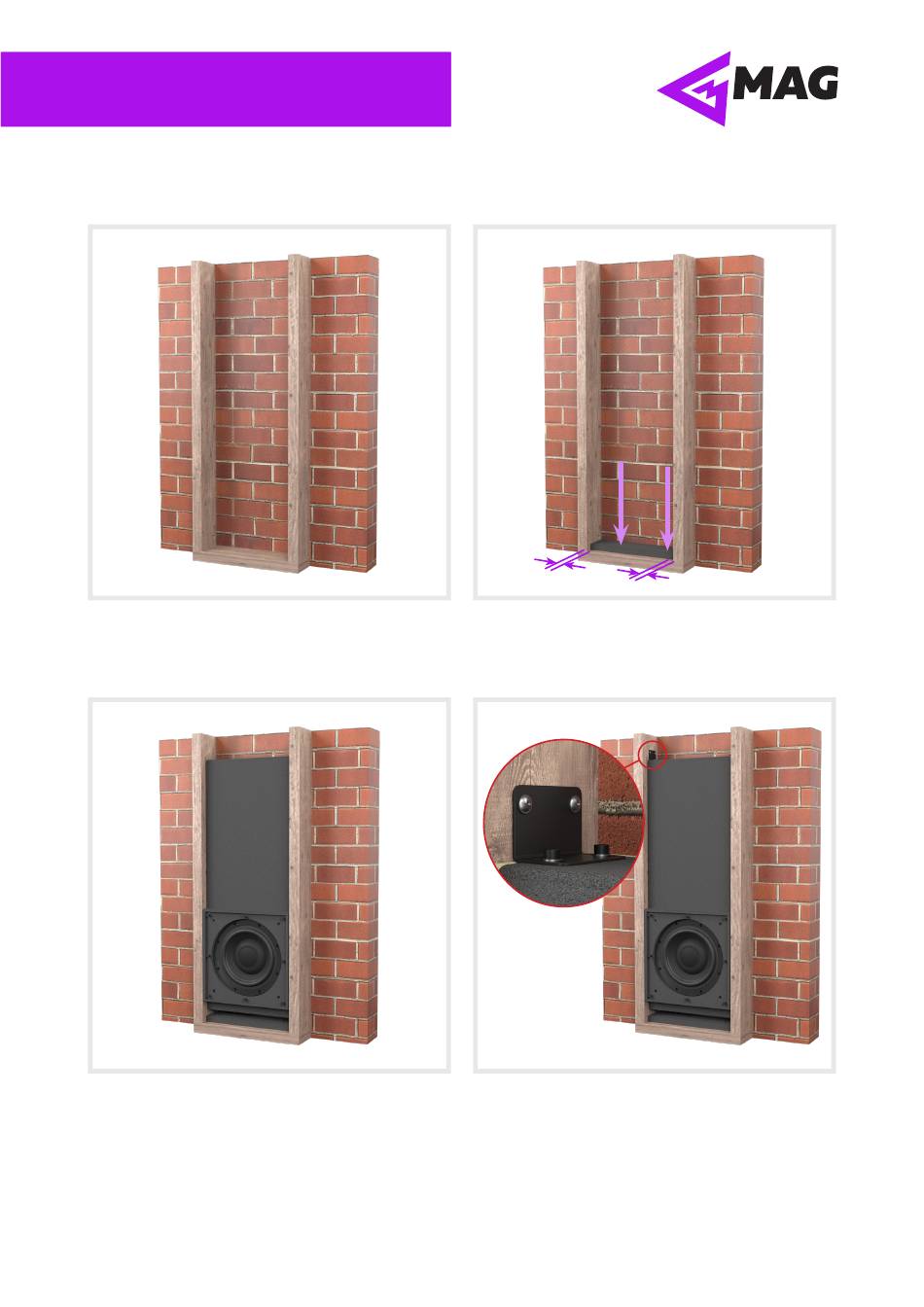

1. Prepare the frame for installing the Slim 110. Ensure there is
an hole in the frame to accomodate acoustic cable.
3
3. Connect the acoustic cable to the Slim 110. Mount the Slim
110 with its spike-feets onto the installation panel. Use the
adjustable spike-feets to level the speaker properly.
2 Merezhna street, Bila Tserkva, Kyiv region, 09100, Ukraine
www.mag-theatron.com
Series
2
=
=
2. Install the mounting panel flush against the rear wall,
ensuring equal gaps are maintained between the panel and
the side walls. Secure it with four screws.
4
4. Install the upper mounting adapters, maintaining a gap of
approximately 2 mm between the speaker and the rear wall
and the side bars. Connect the acoustic cable to the amplifier
and check for any unwanted noises during operation.
