Summary of Contents for Supratech RES-48

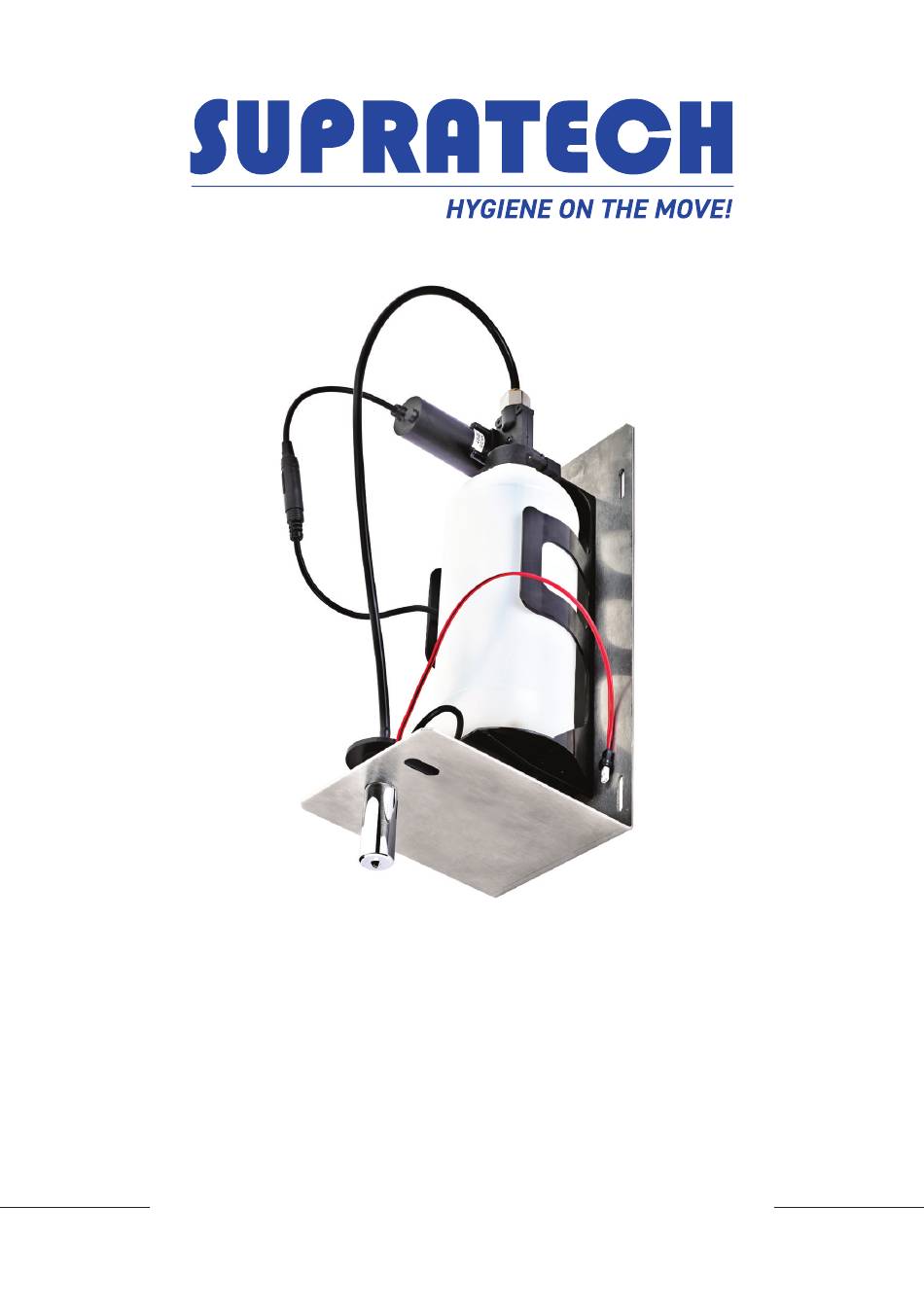

- Page 1 RES-48 BEHIND MIRROR AUTOMATIC SOAP DISPENSER INSTALLATION INSTALLATION MAINTENANCE MAINTENANCE GUIDE GUIDE...
- Page 2 The tradenames, trademarks, logos, and service marks presented in this document, including their design, are the property of SUPRATECH or other third parties and you are not permitted to use them...
- Page 3 T E C H N I C A L C H A R A C T E R I S T I C S Ø90 Ø20 RES-48: 230/12V transformer Power supply RES-48P: IP67 battery box for 6xLR20 alkaline batteries Soap capacity Soap viscosity 100 –...
-
Page 4: Check Contents
P A C K C O N T E N T S RES-48: 12V TRANSFORMER 1 X PUMP, MOUNTING PLATE, RES-48P: IP67 BATTERY BOX BOTTLE SUPPORT, AND SOAP TANK (6XLR20 NOT SUPPLIED) WITH SPOUT AND SENSOR 4X 5MM SCREWS (NOT SUPPLIED) - Page 5 Thicker liquid soap flows slower and inhibits the pump valve, causing strain and damage. The pH level of all soaps used in SUPRATECH liquid soap dispensers should be between 6.5 and 8.5. Lower levels will cause corrosion of the metal dispenser and even the rubber and plastic components.
- Page 6 I N S T A L L A T I O N STEP 1 - PREPPING FOR INSTALLATION If necessary, cut a hole at the bottom of the mirror cabinet for the sensor and the soap dispenser spout. STEP 2 - SOAP DISPENSER INSTALLATION Remove the protective sticker covering the sensor.
-
Page 7: Step 2 - Connecting The Power Source
I N S T A L L A T I O N STEP 2 – CONNECTING THE POWER SOURCE Connect the soap pump NOT CONNECTED PROPERLY - connector to the matching WHITE O-RING VISIBLE connector from the sensor. CONNECTED PROPERLY - ONLY THE GROOVES ARE VISIBLES the 4 contact connectors should be connected properly IMPORTANT:... - Page 8 F I L L I N G T H E S O A P T A N K Unscrew the soap tank from the pump assembly. Fill the tank up to the top line. Insert the soap tank along with the tube back into the bottle support Screw the soap tank back onto the pump.
- Page 9 S E T T I N G A D J U S T M E N T S If necessary, use the (optional) RES-38 remote control to adjust the soap dispenser’s settings. To use the remote control, hold it straight in front of the sensor, at a distance of about 10-15 cm.
- Page 10 M A I N T E N A N C E CARE AND CLEANING OF CHROME AND SPECIAL FINISHES DO NOT use steel wool or cleansing agents containing alcohol, acid, abrasives, or the like. Use of any prohibited cleaning or maintenance products or substances could damage the surface of the soap dispenser.
- Page 11 B A T T E R Y R E P L A C E M E N T When the battery weakens, the blue indicator light will blink at a constant rate when user’s hands are within the sensor range. The battery must be replaced within 2 weeks.
- Page 12 S P A R E P A R T S L I S T Sensor kit S07220230 Pump assembly S07222032 1L soap tank S07100020 Bottle support S07120175 Spout kit S07271023 IP 67 battery box for D batteries RES-293 12V transformer S06522081 Optional: Soap dispenser remote control...
- Page 13 L I M I T E D W A R R A N T Y This soap dispenser is warranted for 2 years from the date of purchase. In the event of a defect during this period of regular use, SUPRATECH will, at its discretion, repair, provide a replacement part or product, or make appropriate adjustments.
-
Page 14: Troubleshooting
T R O U B L E S H O O T I N G PROBLEM INDICATOR CAUSE SOLUTION ILLUSTRATION Soap Continuous AUX connector The connectors should be dispensing discharge not fully inserted fully until the white from the inserted. o-ring is no longer visible. - Page 15 T R O U B L E S H O O T I N G PROBLEM INDICATOR CAUSE SOLUTION ILLUSTRATION Soap not Pump not AUX connector The connectors should be dispensing making not fully inserted fully until the white sound when connected.
- Page 16 2, rue des Cyprès - 37240 Bossée - France Tél : 02 47 92 23 31 - Fax : 02 47 92 84 71 info@autosanit.com www.autosanit.com 07.2024...
