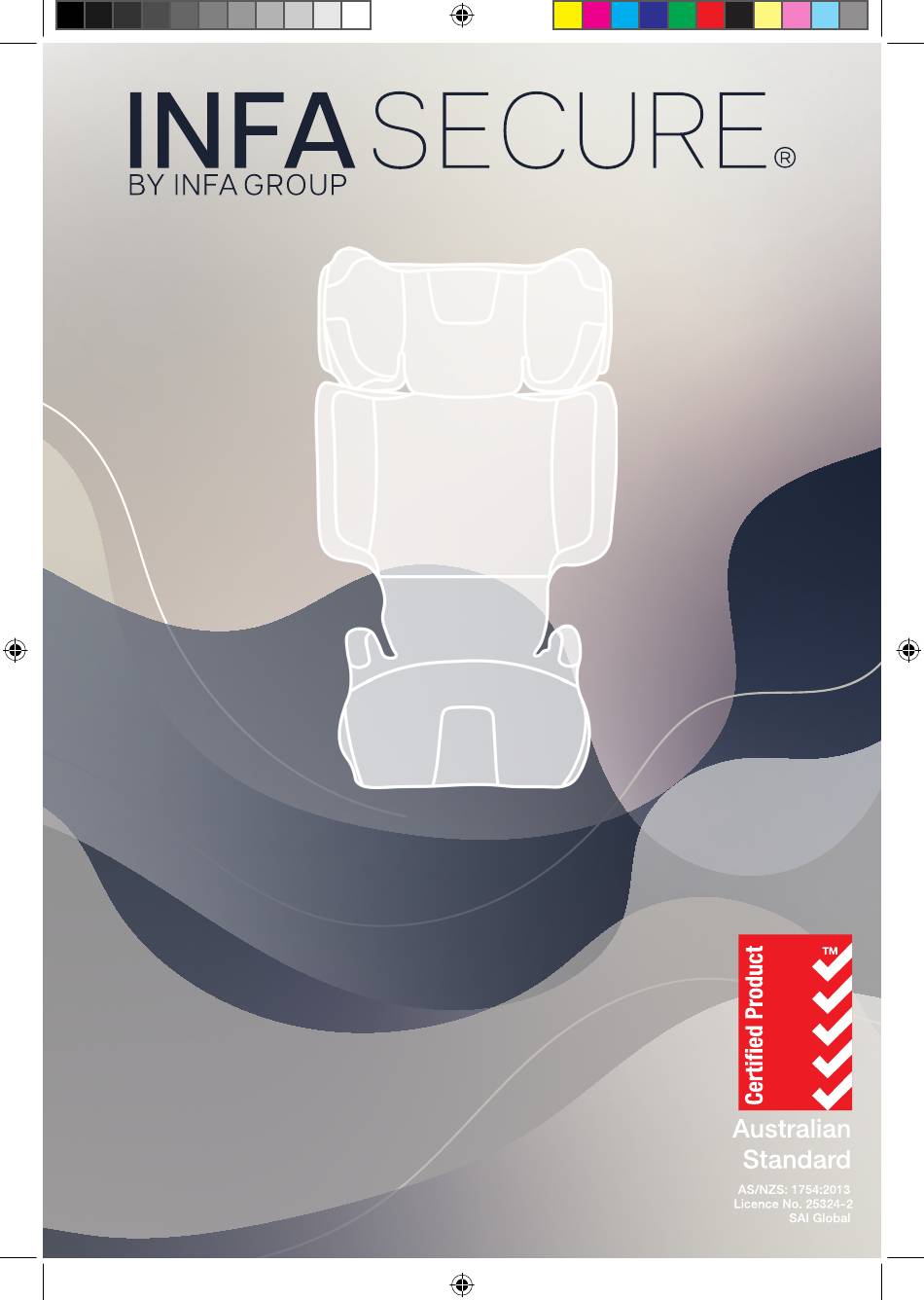

INSTRUCTION MANUAL

Booster Car Seat

CS6513 | Type F

4 Years to 10 Years*

(Forward Facing) Booster Seat. Suitable for children approximately 4 to 10

years of age, whose height is less than 138cm.

IMPORTANT: KEEP THIS BOOKLET IN THE PLACE PROVIDED ON CHILD

RESTRAINT.

*All references to age are approximates only and reference to children of average

proportions. Children vary in size and shapes. The photo display isn't indicative of the

type of restraint and may vary slightly depending on the model.

2407 CS6513 INSTRUCTIONS.indd 1

22/07/2024 3:04:17 PM

Table of Contents

Need help?

Do you have a question about the SECURE and is the answer not in the manual?

Questions and answers

Summary of Contents for infa SECURE

Page 1 INSTRUCTION MANUAL Booster Car Seat CS6513 | Type F 4 Years to 10 Years* (Forward Facing) Booster Seat. Suitable for children approximately 4 to 10 years of age, whose height is less than 138cm. IMPORTANT: KEEP THIS BOOKLET IN THE PLACE PROVIDED ON CHILD RESTRAINT.
Page 2: Table Of Contents
Contents Contents Information Warnings Restraint Guide Quick Reference Guide Child Car Seat Booster Seat Information Shoulder Height Marker CS6513 Child Restraints (Itemised list) Next Restraint Installation - Installing Using Vehicle Seatbelt - Adjusting the Headrest - Using Seatbelt - To Release Child Care of Restraint - Care and Maintenance - Cleaning...
Page 3 Juvenile Products, our mission is to deliver Safety and Innovation. INFA GROUP Infa Group strives to create a real difference for our customers. We design and manufacture safe, stylish and affordable Child Restraints and Nursery products. All products are engineered to a high quality and standard so that your young ones will be secure in an Infa Group product.
Page 4 Information Air Cocoon Technology™ Air Cocoon Technology™ (A.C.T.) enhances protection by dramatically reducing the impact forces during a crash. A.C.T. utilises a layer of air held inside the entirety of the child restraint shell, offering an increased level of protection across the entire surface of the restraint.
Page 5 • DO NOT USE THIS RESTRAINT WITHOUT THE COVER. • Always secure the loose end of the top tether strap. Do not use the child restraint where this strap may fall into a split in the seat back or off the side of the seat.
Page 6 FOR LOCATION OF ANCHORAGE POINTS. REFER TO A CHILD RESTRAINT FITTING STATION IF NO ANCHORAGE POINTS ARE IN THE MOTOR CAR. • Always secure the loose end of the top tether strap to prevent it hanging out of the car or being accessible by the child.
Page 7: Restraint Guide
Restraint Guide Infant Child Booster Seat Seat Seat Seat Belt MODE BIRTH REQUIRED BY LAW REARWARD-FACING RESTRAINT TYPE A1) 0 to 6 (months) BIRTH TO APPROX 6 MONTHS CONVERTIBLE CAR SEAT Approx 0 (TYPE A2/B) to 4 years BIRTH TO 4 YEARS CONVERTIBLE CAR SEAT Approx 0...
Page 8 Quick Reference Guide Page QR1 Forward Facing Mode (Use for toddlers) SETUP SETUP Lift to Unfold UNFOLD POSITION INSTALLATION INSTALLATION REFER TO PAGES 12-13 ATTACH PULL TO TIGHTEN ADJUSTER Pull to Tilt Lengthen Pull to Tighten INSTALL ATTACH TETHER TENSION TETHER 2407 CS6513 INSTRUCTIONS.indd 7 2407 CS6513 INSTRUCTIONS.indd 7 22/07/2024 3:04:19 PM...
Page 9: Adjust Headrest
Quick Reference Guide Page QR2 Forward Facing Mode (Use for toddlers) ADJUST HEADREST ADJUST HEADREST REFER TO PAGE 14 (SASH GUIDE POSITION) (SASH GUIDE POSITION) RAISE PRESS RAISE HEADREST POSITION SASH GUIDE AND HEADREST CHECK LOCK HEADREST 2407 CS6513 INSTRUCTIONS.indd 8 2407 CS6513 INSTRUCTIONS.indd 8 22/07/2024 3:04:19 PM 22/07/2024 3:04:19 PM...
Page 10 Quick Reference Guide Page QR3 Booster Seat Mode (Use for children) REFER TO PAGES 14 - 18 SASH GUIDE REMOVE ALL SLACK FROM SEATBELT “CLICK” ROUTE SEATBELT CLICK SEATBELT TIGHTEN SEATBELT SASH SECTION SASH ATTACH TO GUIDE SASH SECTION ONLY LAP SECTION SAFE GRIP (RED BELT CLAMP)
Page 11: Booster Car Seat
• Seatbelt extenders are not recommended to be used if the seatbelt is not long enough to secure the child restraint. If seatbelts are too short then advice should be sought from a child restraint tter and their recommendation be considered before using a seatbelt extender.
Page 12: Shoulder Height Marker
Booster Car Seat Shoulder Height Markers Smaller Child (using lap-sash seatbelt) Shoulder height markers are provided on this restraint for a visual indication that the child is safe to travel in this restraint. Shoulder height markers may be hidden under a pillow in the lowest position. Front of Car LOWER...
Page 13 Booster Car Seat Shoulder Height Markers Taller Child (using lap-sash seatbelt) Do not continue to use the restraint if the child’s shoulder are above the Upper Label. Front UPPER UPPER of Car LABEL LABEL Taller Child to approximately 8 years of age REACH Continue to use this booster seat until the child’s shoulders the Upper shoulder...
Page 14: Cs6513 Child Restraints (Itemised List)
• Seatbelt extenders are not recommended to be used if the seatbelt is not long enough to secure the child restraint. If seatbelts are too short then advice should be sought from a child restraint tter and their recommendation be considered before using a seatbelt extender.
Page 15: Next Restraint
Booster Car Seat Next Restraint Next Type of Restraint Refer to the ‘RESTRAINT GUIDE’ for the selection for the most appropriate next restraint (refer Page 6). When the child has outgrown the booster seat, then you can use the following; Figure 1 •...
Page 16: Installation
Booster Car Seat Installation Installing in Vehicle Step 1: Place the child restraint in the car, in a forward facing seating position (refer Figure 1). Step 2: If required install the upper anchorage tting as shown on page 22 of these instructions. Step 3: Hook the attachment clip to the anchor tting.
Page 17: Tether Storage
COLLISION. SECURE OR REMOVE Lengthen HAZARDOUS CARGO BEFORE USING THIS CHILD RESTRAINT. Always secure the loose end of the top tether strap to prevent it hanging out of the car or being accessible by the child. Pull to Tighten Figure 9...
Page 18: Use
Booster Car Seat Adjusting the Headrest The headrest can be adjusted to different heights to best suit your child. The headrest has a locking button in the front. IMPORTANT You will need your child to sit in the booster to determine the most appropriate headrest height.
Page 19: Using Lap-Sash Seat Belt
Booster Car Seat Using lap-sash seat belt Ensure the restraint has been installed as per “INSTALLING IN VEHICLE” on Page 12 (refer Figure 1). Sit your child in the restraint with their back against the backrest (refer Figure 2). IMPORTANT Ensure that you use the BOOSTER BELT PATH identi ed by the following label.
Page 20 Booster Car Seat Using lap-sash seat belt Pull the lap belt tight by rst pulling on the lap belt in the direction of arrow 1 (refer Figure 4). Pull the sash belt tight in the direction of arrow 2. SASH GUIDE WARNING REMOVE ALL...
Page 21: Safety Warning
Booster Car Seat Using lap-sash seat belt Pass the shoulder belt through the belt sash guide Step 7: (refer Figure 6) which is moulded in the side wings of the headrest. Ensure the headrest is positioned as per “Adjusting the Headrest” (see Page 14). SASH GUIDE WARNING...
Page 22: To Release Child
Booster Car Seat To release child To release your child from the booster seat simply press the belt buckle and carefully remove your child from the seat. If using a Safegrip (red belt clamp) It is not necessary to release the red belt clamp, to remove your child (if applicable).
Page 23: Care Of Restraint
Care of Restraint The child restraint cover has been manufactured to meet the Australian Standards requirements for ammability and toxicity to ensure your child's safety. The cover has also been designed to provide your child with comfort and support. 1. Headrest Cover 2.
Page 24: Cleaning
Cleaning IMPORTANT Use only mild soap and water to clean all parts of the CS6513 Booster Seat. Do not use chemicals or cleaning agents Cold water only to be used and to be rinsed well Do not dry clean or tumble dry Do not bleach.
Page 25: Remove & Replace Covers
Remove & Replace Covers Main Cover To remove and replace covers BASE COVER: Step 1: Unclip the press studs and remove Base Cover. BACKREST COVER: Step 1: Unclip the press studs at the bottom of the cover Step 2: Remove Backrest Cover. TO REPLACE COVER REVERSE THE ABOVE PROCEDURE.
Page 26: Accessories
Accessories Follow the instructions covering the use of accessories provided with this child restraint or spare parts provided by InfaSecure for this restraint. IMPORTANT Use of unauthorised aftermarket accessories (i.e items not provided in this box with the child restraint), can reduce the safety provided by the child restraint and may cause injury or death.
Page 27: Anchorage Fittings
Anchorage Fittings Some vehicles may have an anchor tting already WARNINGS tted by the vehicle manufacturer. If no anchorage points can be found refer to • Top tether strap and attachment clip the vehicle manufacturer, or an authorised child must always be used restraint tting station for the best location of an anchorage point.
Page 28 Anchorage Fittings For cars not ﬁtted with a child restraint anchorage point For Sedans Only Drill a 9mm diameter hole in the parcel shelf on the centre line of the seating position as shown in Figure 1C. Hole must be no closer than 200mm from the front of the back seat.
Page 29: Insurers Information
Zealand Standards and our obligation in complying with the standards. Please assist the owner of this restraint in their claim. INFA GROUP PTY LTD ABN: 52 149 173 660 Head Of ce and Registered Address 110-114 Old Bathurst Rd, Emu Plains, NSW 2750 P.O.
Page 30 Notes: 2407 CS6513 INSTRUCTIONS.indd 29 2407 CS6513 INSTRUCTIONS.indd 29 22/07/2024 3:04:21 PM 22/07/2024 3:04:21 PM...
Page 31 Notes: 2407 CS6513 INSTRUCTIONS.indd 30 2407 CS6513 INSTRUCTIONS.indd 30 22/07/2024 3:04:21 PM 22/07/2024 3:04:21 PM...
Page 32 Notes: 2407 CS6513 INSTRUCTIONS.indd 31 2407 CS6513 INSTRUCTIONS.indd 31 22/07/2024 3:04:21 PM 22/07/2024 3:04:21 PM...
Page 33: Lifetime Warranty
Please visit infagroup.com.au/pages/contact-us to register your product. InfaSecure Warranty Infa Group Pty Ltd warrants this product for twelve months from the date of purchase against failure due to manufacturing faults or faulty materials. Misuse, accidental damages, normal wear and tear are not covered by this warranty.
Page 34 110 - 114 Old Bathurst Rd, Emu Plains 2750, NSW, Australia P.O Box 487, Emu Plains 2750, NSW Australia 2407 CS6513 INSTRUCTIONS.indd 33 2407 CS6513 INSTRUCTIONS.indd 33 22/07/2024 3:04:21 PM 22/07/2024 3:04:21 PM...
