Summary of Contents for pasapair SF713A

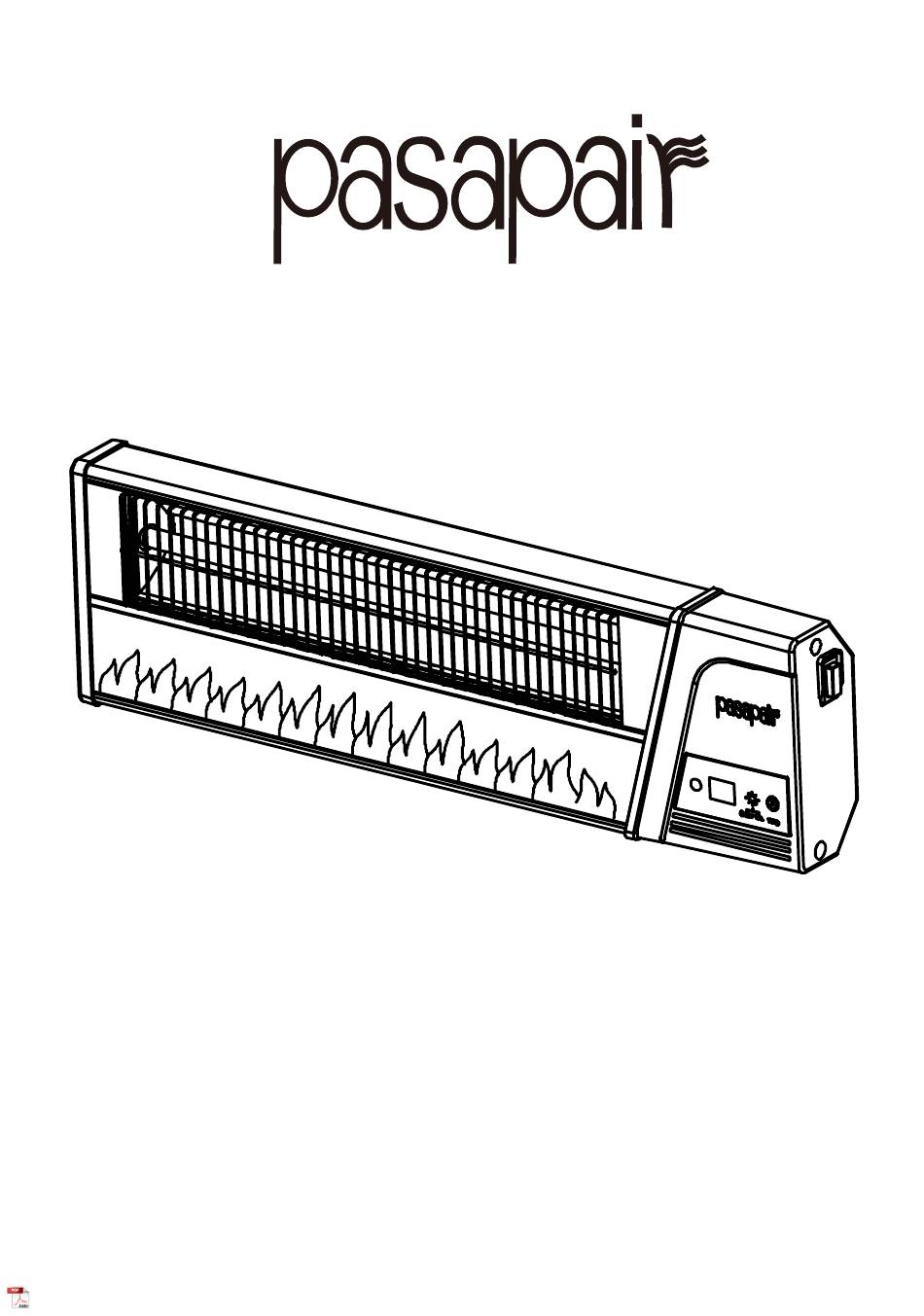

- Page 1 User manual Wall mounted electric heater (with flame) Brand:pasapair Model:SF713A Power Supply: 120V-60Hz 1500w PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATING THE APPLIANCE...
- Page 2 DIRECTORY TECHNICAL SPECIFICATION INSTALLATION WARNING PACKAGE CONTENTS PRODUCT NOTICE ASSEMBLING USER INSTRUCTION WARRANTY...
- Page 3 Product model SF713A Rated voltage/frequency/power 120V / 60Hz /1500W (one carbon fiber quartz heating tube) Heating range Secondgear heating: H gear/L gear 1-24H Timing gear Tipping power failure protection, Safety protection overheating power failure protection Flame Control by remote control...
- Page 7 Heater The Machine Bracket plastic Tube ST3.9*30 Screw M4*10 Screw Plastic screw Open End Wrench (gypsum board) M6 Allen Key Wrench M5 Allen Key Wrench M5x16 Screws Wall Mounting Bracket Remote Control...
- Page 8 The Machine Bracket ST3.9*30 Screw plastic Tube M4*10 Screw M5 Allen Key Wrench M6 Allen Key Wrench Open End Wrench Plastic screw Wall Mounting Bracket Remote Control M5x16 Screws...
-
Page 9: Product Notice
PRODUCT NOTICE 1. Mute, Fast heat The machine is quiet without wind, 2 seconds fast heating, second gear heating ( H gear, L gear) is optional, 24 hours timing option. 2. Security protection Tipping power outage protection ---- When the machine tilts more than 30° in any direction, the anti-tipping protection function will start and the heating will stop, and the display will blink "EE";... - Page 10 Place the machine bracket on the back of the heater and lock it with 4 screws. This side faces down The Machine Bracket...
- Page 11 Drill holes and nail plastic tubes into the walls. Drill holes on the wall according to the four holes on the wall mounting bracket, and the holes are more than 2 meters away from the ground; Wall Holes Wall Mounting Bracket Wall Mounting Bracket /78.7inch Ground...
- Page 12 Install the wall mounting bracket Attach the wall board to the wall with four screws, Make sure the bracket is leveled. Wall Holes Wall Mounting Bracket ST3.9*30 Screw Install the heater Align the four screw holes of the heater bracket on the back of the machine with the screw holes of the wall mounting bracket, screw in four screws respectively, and then tighten the screws with the allen key wrench , and then the host machine is fixed on the wall.
- Page 13 Adjust the machine Angle After the machine is installed on the wall, the pitch Angle of the machine, it can be adjusted to the most suitable heating position. Plastic screw Wall Gypsum Board 1M/39in 1M/39in 1M/39in 1.8M/71in...
- Page 15 Function key Water Proof Switch Press the switch in the transparent cover on the right side of the machine to the position of "I", then the machine will display "--" standby mode. ---Function key: This key has multiple functions, press this key to turn on heating (default H gear) - Press again for L gear -- Press again to turn off, so the cycle.
- Page 16 Screen Display Full power Half power 0H,1H,2H,3H,4H,5H,6H,7H,8H,9H,10H,11H,12H,13H, 14H,15H,16H,17H,18H,19H,20H,21H,22H,23H,24H.
- Page 17 TimeAdjustment:Increase TimeAdjustment:Decrease The remote control distance is 6ft from the front and 4ft from the sides of the unit. Flame Button Time Adjustment Increase / Decrease Press the increase or decrease button to select different time setting.
- Page 18 The remote control is provided with 1.5V AAA batteries. Insert 1.5V AAA batteries into the battery compartment and make sure to install batteries in the correct ploarity. Manufacturer:Zhongshan Sunshine Electrical Appliance Tech Co., Ltd. Add.:No.2, Yongyi Road 3, Heng lan Town, Zhongshan City Guangdong, China Contact: Joyce Email:info@pasapairhome.com...
-
Page 19: Warranty
WARRANTY Thank you for choosing PASAPAIR product. We sincerely hope that you are satisfied with it. The manufacturer's warranty covers the product for a period of 12 months from the date of purchase against manufacturing faults. All warranties are automatically kept track of in our system, so there is no need to register your product.
