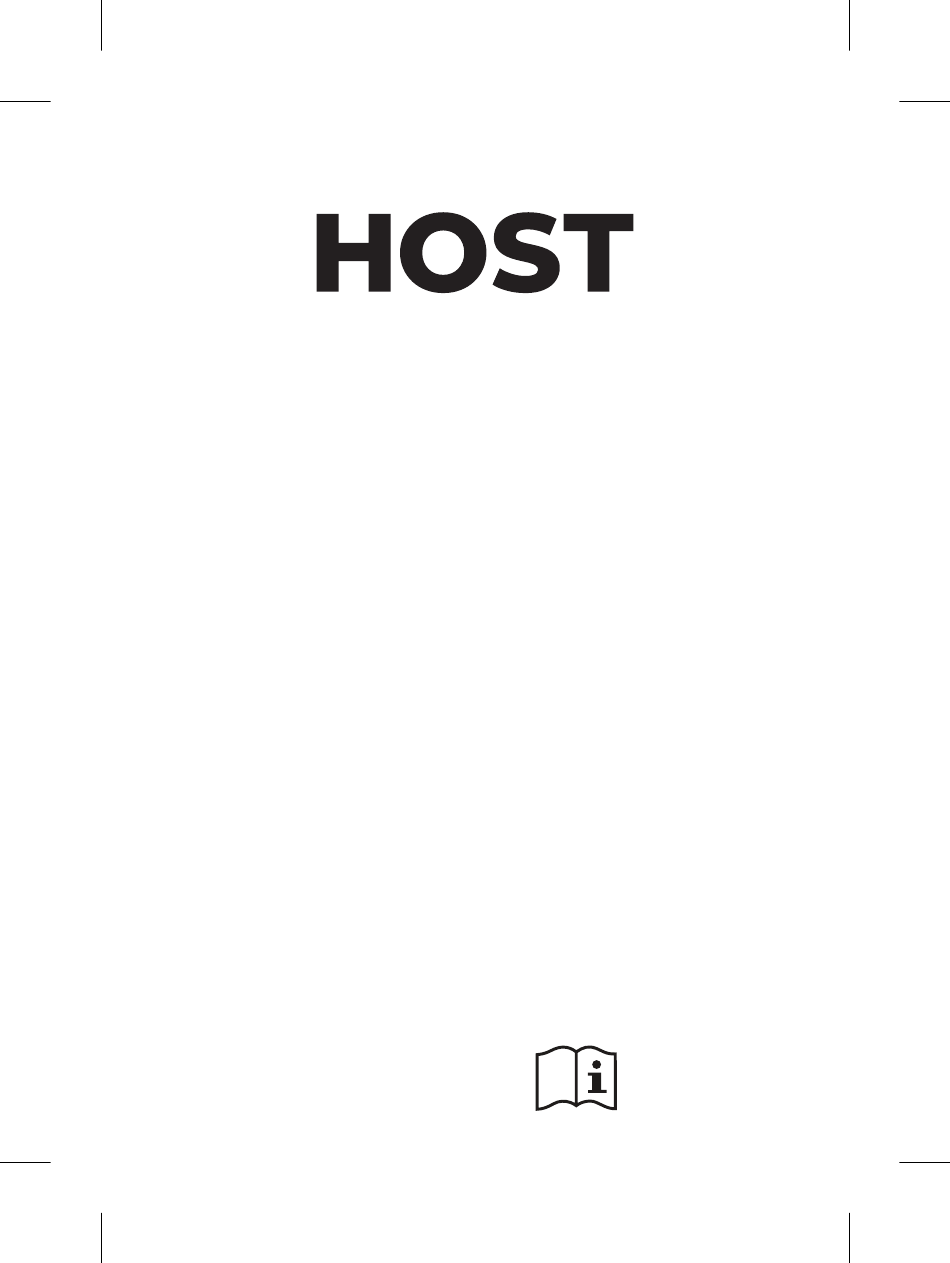

- Page 1 Display Chiller Instruction manual Model: HOST1107UR HOST1108UR Read this instruction manual carefully before use HOST1107UR_HOST1108UR_EN_A5_v1_20220817.indb 1 HOST1107UR_HOST1108UR_EN_A5_v1_20220817.indb 1 2022/8/17 11:37 2022/8/17 11:37...
-
Page 2: Safety Instructions
Safety Instructions • Position on a flat, stable surface. • A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product. • Consult Local and National Standards to comply with the following: - Health and Safety at Work Legislation - BS EN Codes of Practice... - Page 3 Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity and Functional Testing. • HOST recommend that this product is connected to a circuit protected by an appropriate RCD (Residual Current Device). Caution: Risk of Fire •...
-
Page 4: Installation
Installation To reverse the door handle: 1. The door handle is on the left side. Note: Not for use in vans or trailers, food trucks or similar vehicles. If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. - Page 5 3. Cut the slot on the front panel and install the 5. Reverse the door. hinge inside. 6. Disassemble the right upper hinge. 4. Disassemble the right lower hinge and install it on the left lower side. 7. Install the left upper hinge. HOST1107UR_HOST1108UR_EN_A5_v1_20220817.indb 5 HOST1107UR_HOST1108UR_EN_A5_v1_20220817.indb 5 2022/8/17 11:37...
-
Page 6: Operation
2 seconds to begin a manual defrost. The defrost light illuminates. Storing Food To get the best results from your HOST appliance, follow these instructions: • Only store foodstuffs in the appliance when it has reached the correct operating temperature. -
Page 7: Cleaning, Care And Maintenance
4. Insert the new lamp and replace the cover. Cleaning the Condenser Periodically cleaning the condenser can extend the life of the appliance. HOST recommend that a qualified technician should clean the condenser. Troubleshooting A qualified technician must carry out repairs if required. - Page 8 The display lamp does Lamp needs replacing Consult a qualified technician not illuminate Service Should your appliance have a fault, please visit the Service section of the HOST website. HOST1107UR_HOST1108UR_EN_A5_v1_20220817.indb 8 HOST1107UR_HOST1108UR_EN_A5_v1_20220817.indb 8 2022/8/17 11:37 2022/8/17 11:37...
-
Page 9: Technical Specifications
Technical Specifications Temperature Capacity Refriger- Dimensions Weight Model Voltage Power Current Range (Litres) (H x W x D) (mm) (kg) HOST1107UR 230V~ 230W 1.5A 2°C to 8°C R600a 1692 x 530 x 575 50Hz (50g) HOST1108UR 340W 2°C to 8°C R600a... -
Page 10: Electrical Wiring
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of HOST. Every effort is made to ensure all details are correct at the time of going to press, however, HOST reserve the right to change specifications without notice. - Page 11 DocuSign Envelope ID: A041EEBA-EF35-4361-9E96-FD9EF75C521D UKCA Declaration of Conformity {Host} {Host House, Newhouse Farm Industrial Estate, Mathern, Chepstow, NP16 6UP} hereby declare that the equipment is in conformity with the requirements of the following Regulations: Supply of Machinery (Safety) Regulations 2008 ...
- Page 12 HOST1107UR_HOST1108UR_EN_A5_v1_2022/08/17 HOST1107UR_HOST1108UR_EN_A5_v1_20220817.indb 12 HOST1107UR_HOST1108UR_EN_A5_v1_20220817.indb 12 2022/8/17 11:37 2022/8/17 11:37...
