AllPondSolutions WF-23168C Manual

Performance & Overview
The solar pump is designed for use outdoors. In order for the solar pump to operate, the solar
panel needs to be in direct sunlight for optimum charging efficiency.
The electricity generated by the solar panels is supplied to the water pump, and the excess is
stored in the battery. This prevents the feature "cutting out", for example when it gets cloudy.
Place your water feature on a level surface. Fill it with water, ensuring that the pump is fully submerged.
Connect the water pipe. Adjust the pump flow rate to achieve the desired effect by moving the flow rate control
slider. The solar panel needs to be placed in direct sunlight.

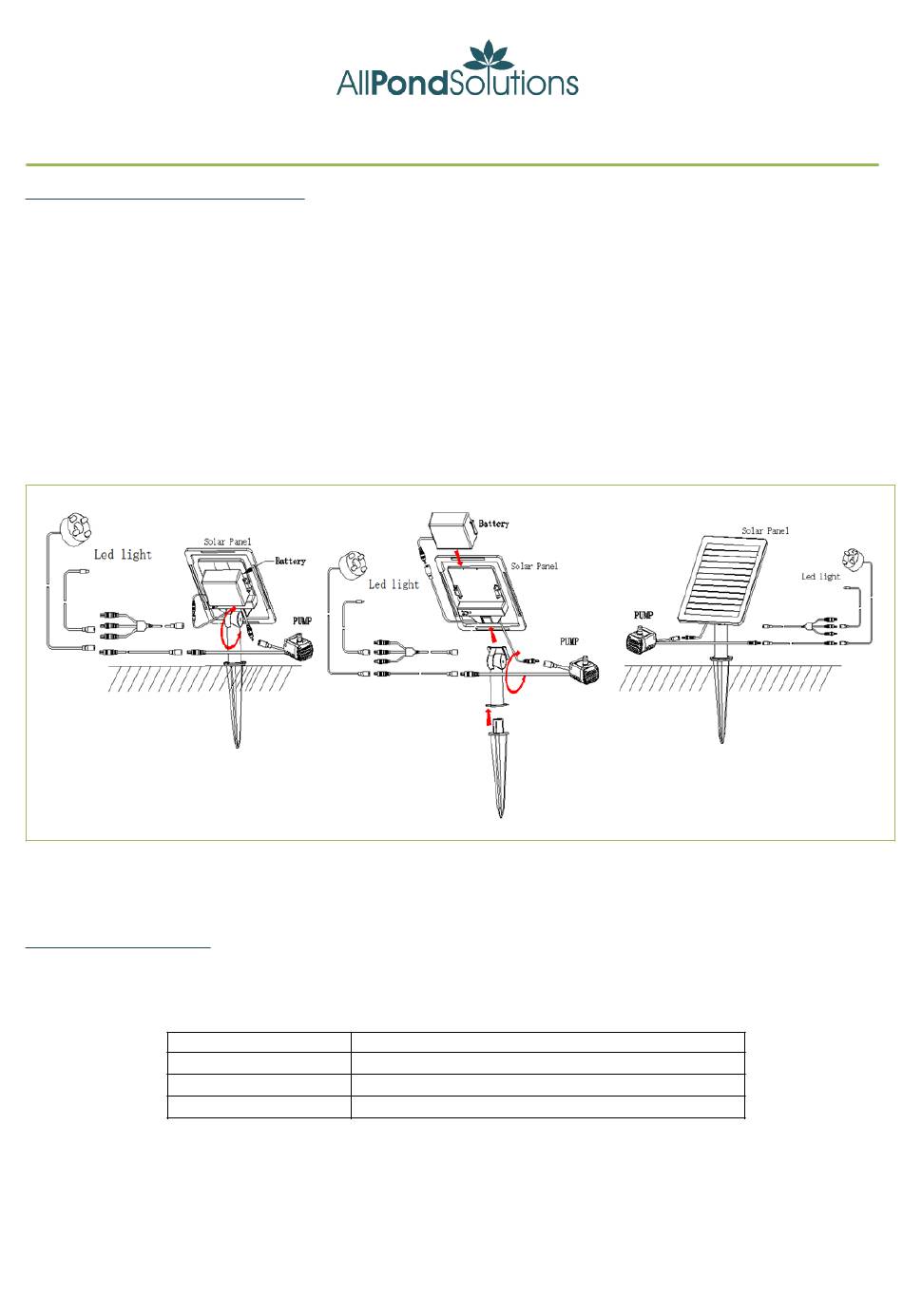

Combine your water feature with the solar part of the unit. The pump should start working
immediately.
IMPORTANT! If you notice there is no water in your feature, disconnect the pump from the solar
panel. Running the pump dry will reduce its life and will lead to a unit failure.
Troubleshooting
Pump does not operate even though the solar module is in full sunlight
● No connection to the pump – check and make sure all the plugs have been connected tightly
● The battery needs to be charged.
Battery Status
Red
Orange
Green
● Ensure the solar panel is placed in direct sunlight
● Impeller or filter cover is blocked – clean the pump. Follow the procedures in above "Cleaning and
Maintenance".
● Check the pump tubing for kinks and obstructions.
With low flow rate, the pump will spew or "burp":
● Check the water level to make sure the pump is completely submerged. Water should always be
LED Solar Water Feature
Solar panel won't operate and must be charged
Solar panel is partially charged
Solar panel is fully charged and ready to use
