Features and technical data
l
Housing:
l
Color:
l
Dimensions / (LxWxH) / mm:
l
Weight:
l
Status LED (clear):
l
Red LEDs:
l
Button
Accessories supplied
l
Operating instructions
l
Earth connection cable
This phase detector has been manufactured in accordance with European safety standards. Read the
safety instructions and the operating instructions carefully before measuring with the device. Any liability
and warranty claims will be invalidated if the device is used for purposes other than those for which it is
intended or if the instructions are not followed.
Please also take a look at our other products. You can find them on our website.
Notes
Use the options available in your country for environmentally friendly disposal of the appliance packa-
ging.
CE mark of conformity: The device complies with the requirements set out in the EMC Directive
2014/30/EU on electromagnetic compatibility. The company Dipl.-Ing. Michael Franken/mfe (registered
trademark) is registered with the ear foundation (elektro-altgeräte register) as an authorized joint body
pursuant to § 6 (1) sentence 1, § 17 (1) and (2) ElektroG in conjunction with the notification of the Federal
Environment Agency dated 06.07.2005 for the brand mfe / consumer electronics devices / other con-
sumer electronics devices (with the exception of TV sets) under WEEE reg. no. DE 64544546
Technical changes and errors excepted.
BDA-PDV03_MKII-ENG_101224
metal housing
red
148 x 73 x 40
~ 0,72 Kg
Indication of the correct mains plug position of the
PDV03/MKII and excessive leakage current of the DUT
Operating status and phase display
Measurement/calibration

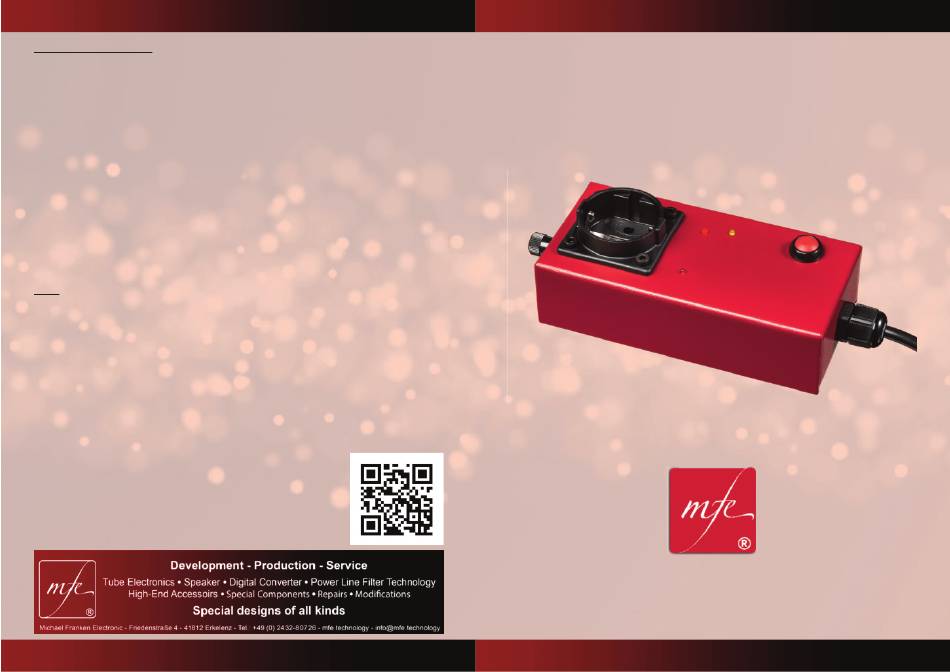

Phase detector
PDV03/MKII
Operating instructions
Advertisement
Summary of Contents for mfe PDV03/MKII
- Page 1 § 6 (1) sentence 1, § 17 (1) and (2) ElektroG in conjunction with the notification of the Federal Environment Agency dated 06.07.2005 for the brand mfe / consumer electronics devices / other con- sumer electronics devices (with the exception of TV sets) under WEEE reg. no. DE 64544546 Technical changes and errors excepted.
- Page 2 Measuring procedure via status LED There is no test object in the phase detector yet! Insert the mains plug of the PDV03/MKII cor- Compact dimensions rectly into a mains socket. The red LEDs flash alternately (t=500ms). After the status LED has gone Enclosed earth cable for test objects with 2-pin mains plug out, you will hear the click of a relay and the device is ready for use.
