MOMI-13

13.3'' Tablet PC

User Guide

Table of Contents

Need help?

Do you have a question about the MOMI-13 and is the answer not in the manual?

Questions and answers

Summary of Contents for Inventec MOMI-13

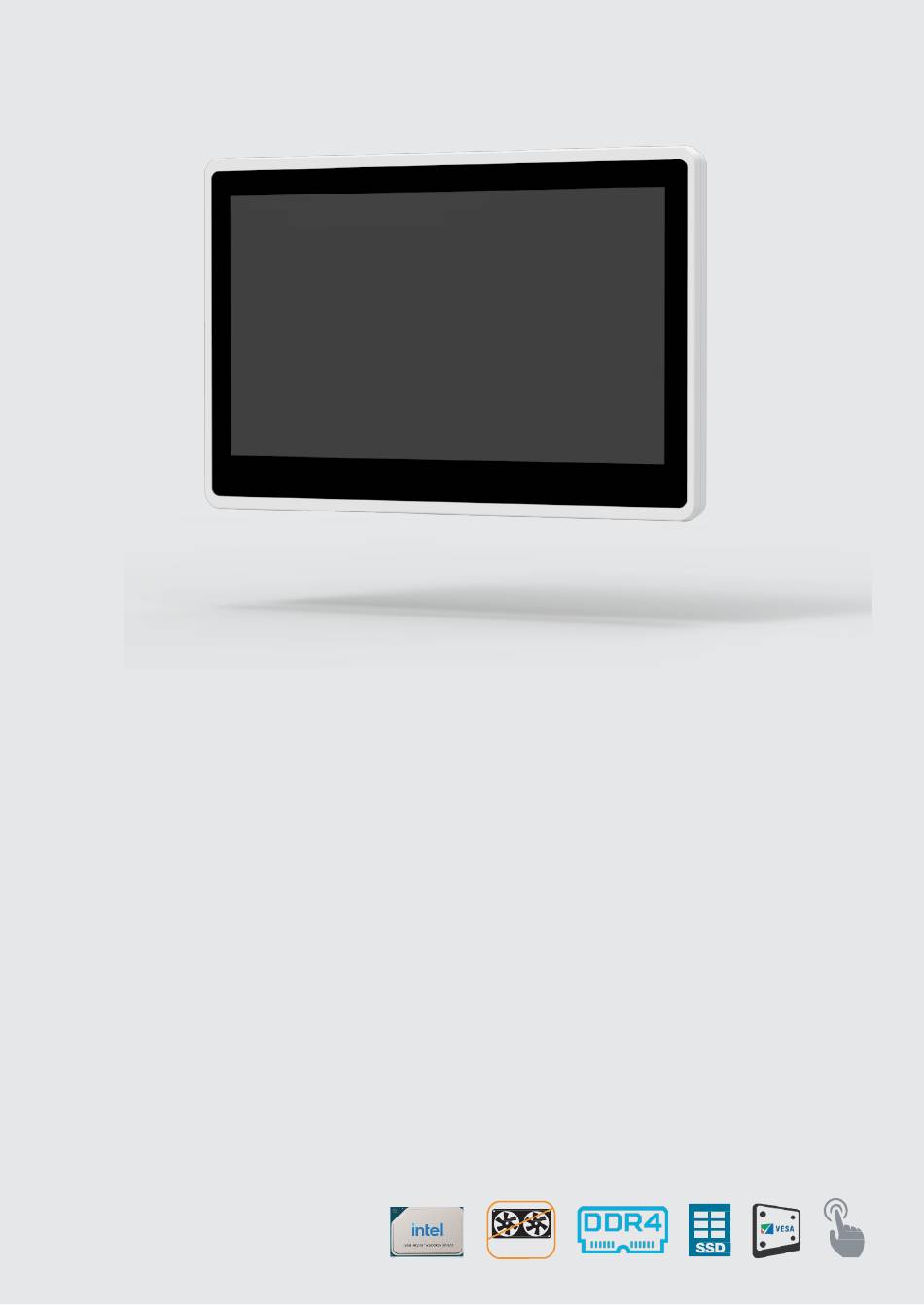

Page 1 MOMI-13 13.3’’ Tablet PC User Guide...
Page 2: Table Of Contents
MOMI -13 Table of Contents Table of Contents ........................... 2 2. General Information ..........................3 3. Safety and Maintenance ........................4 4. Product Overview ............................ 7 Package Contents ..............................7 Front View ..................................8 Top View ..................................8 Bottom View ................................9 Left and Right Views ..............................
Page 3: General Information
Intended Use Thank you for choosing the MOMI-13 product. This device is intended to serve as a computing unit in a healthcare institution for general use by healthcare personnel. It can be mounted on the wall under 2 meters or placed on a nursing cart.
Page 4: Safety And Maintenance
● To avoid power circuit overloads, ensure your wall outlet, extension cord, power strip, or other electrical receptacles are rated to handle the total current drawn by the MOMI-13 in combination with other devices sharing the same power circuit.
Page 5: Other Hazards
MOMI -13 To safely discard lithium polymer batteries, protect the battery terminals with packaging, covering, or electrical insulation tape to avoid contact with other metals and transport without causing a fire. However, lithium polymer batteries do contain recyclable materials and can be recycled according to the Rechargeable Battery Recycling Corporation (RBRC) battery recycling program.
Page 6 MOMI -13 Power connection – Used in conjunction with a 19V power supply (FSP, type FSP090-RBBM1) • Power requirements: The equipment must only be powered using the delivered medical approved 19VDC (4.74A) SELV power supply. • The medical approved DC power supply must be powered by the AC mains voltage. •...
Page 7: Product Overview
Before using your tablet PC, ensure all the following items are included in the package. If any of the items are missing or are damaged, please contact your dealer. MOMI-13 Tablet PC User Manual ( PDF from your local dealer)
Page 8: Front View
MOMI -13 Front View Item Description Touchscreen 10 point projected capacitive multi-touch display with glove support. Top View...
Page 9: Bottom View
MOMI -13 Bottom View Item Description Gigabit LAN Port Connect to a Local Area Network (LAN) Gigabit LAN Port Connect to a Local Area Network (LAN) DC-In Jack Power input from the supplied AC adapter USB Type C Connect USB Type C DP or USB compatible devices USB Type A Connect USB Type A compatible devices Audio Jack...
Page 10: Left And Right Views
MOMI -13 Left and Right Views...
Page 11: Rear View
MOMI 13 Rear View...
Page 12: Switching On The Device
Switching On the Device 1. Remove the two rubber-caps and unscrew the IO cover 2 screws as shown. 2. Remove the IO cover from the MOMI-13 device. 3. Connect the AC adapter to the DC-in jack on the tablet PC’s bottom as illustrated.
Page 13 MOMI -13 5. Push short the power button on the bottom side of the device. Your tablet PC is ready to be used.
Page 14 MOMI-13 VESA 75mm mounting M4 screw holes (10mm x 4 ), use VESA qualified stand or bracket to install...
Page 15: Specifications
Specifications The following table includes all the features and operational requirements regarding your tablet PC. Item Description Processor (SoC) Intel ® Pentium® N6415, Quad Core @1.2GHz, 1.5 MB L2 Cache BIOS Insyde Operating System Microsoft Windows 10 Iot LTSC Networking Built-in Gigabit Ethernet LAN interfaces (2 ports) Memory 8GB DDR4 SODIMM RAM...
Page 16: Regulatory Information
MOMI-13 has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 17: Emc Notice
Using another can result in a decrease of the immunity level of the device. Electromagnetic emissions The MOMI-13 is suitable for use in the electromagnetic environment specified below. The customer or the user of the MOMI-13 should assure that it is used in such an environment.
Page 18: Electromagnetic Immunity
Electromagnetic immunity The MOMI-13 is tested to be used in the electromagnetic environment specified below. The customer or the user of the MOMI-13 should assure that it is not used in an environment that exceeds the listed test levels and limits.
Page 19 150 kHz to 80 MHz 150 kHz to 80 MHz symbol, the device can be located near the interference may occur Radiated RF 3 V/m or 10 V/m IEC 61000-4-3 ( depends on operating environment, home environment 10V; medical environment 80 MHz to 2.7 GHz Proximity magnetic fields 8 A/m...
Page 20: Symbols On The Device
MOMI-13 Symbols On The Device On the device or power supply, you may find the following symbols (nonrestrictive list): Indicates the device meets the requirements of the applicable EC directives/ regulations. Indicates compliance with Part 15 of the FCC rules (Class A or Class B)
Page 21 Indicates a device that needs to be protected from moisture when being stored. Indicates the storage direction of the box. The box must be transported, handled and stored in such a way that the arrows always point upwards. Indicates the maximum number of identical boxes which may be stacked on each other, where “n”...
Page 22: Environmental Information
For more information about recycling of this product, please contact your local city office or your municipal waste disposal service. For details, please visit the website at: https://www.inventec.com/en/csr-1 Turkey RoHS compliance Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur. [Republic of Turkey: In conformity with the WEEE...
Page 23 Electronic Products” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that MOMI-13 product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
Page 24 中国 RoHS 自我声明符合性标志/ China RoHS – SDoC mark 本产品符合《电器电子产品有害物质限制使用管理办法》和《电器电子产品有害物质限制使用达标管理目录》的要求。 This product meets the requirements of the “Management Rule on the Use Restriction of Hazardous Substances in Electrical and Electronic Products” and the “Management Catalogue for the Use Restriction of Hazardous Substances in Electrical and Electronic Products”.
