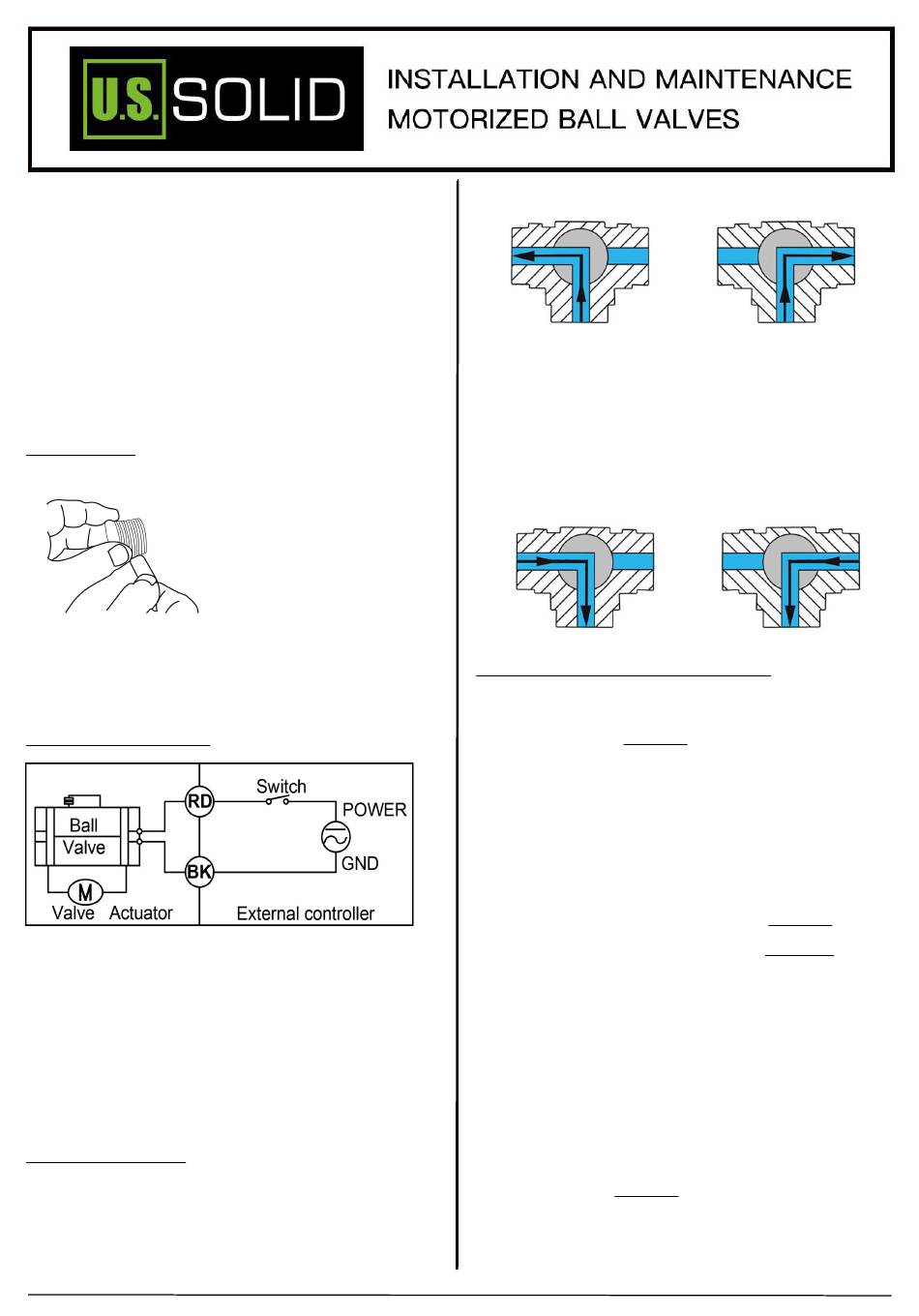

U.S. Solid USS-MSV10001 Installation And Maintenance

Thank you for buying our U.S. Solid Motorized Ball
valve. We appreciate your patronage! Our aim is to
ensure that you can make the most of your new
equipment, which is why we have provided some
helpful tips to help you get started. Please refer to
this manual for straightforward wiring diagrams,
schematics, and specifications for your valve. Simply
unfold the manual to access this information.
THREADING
advise using Teflon tape to ensure that the NPT
threading is sealed properly. Please refer to the
illustration on the left for further guidance.
WIRING SCHEMATIC
1. When the circuit is completed (the switch
connecting to the valve is turned on), the valve will
open and remain in an open state. Once opened,
power consumption will be minimal.
2. When the circuit is interrupted (the switch
connecting to the valve is turned off or power is lost),
the valve will close. Once in this state, the valve will
be completely powered off.
FLOW DIRECTION
 Situation1: Water enters from the bottom port.
a. With power, water flows through the left port;
b. Without power, water flows through the right
U.S.Solid Valves conform to
National Standards for pipe
thread. In the United States,
we use NPT, whereas in
Europe, we use BSPT. We
USS 3 Way Models • All Rights Reserved
U.S. Solid®• 4560 Johnston Parkway, Cleveland, Ohio 44128 USA
port.
 Situation2: Water enters from both the left and
right ports.
a. With power, water flows through the left port to
the bottom port.
b. Without power, water flows through the right
port to the left port.
FREQUENTLY ASKED QUESTIONS
1) Does the valve need water or air pressure to
operate? Answer: No! One of the
advantages of motorized ball valves is that they can
function with minimal water pressure. This means a
motorized ball valve can work even with gravity fed
arrangements.
2) Will the ball inside the valve return to its original
position if the power goes out?
3) Can this valve be used outside? Answer: The
motorized ball valves are all rated IP67, which
indicates that they can endure temporary immersion
between 15cm and 1m. However, if installed
outdoors on a permanent basis, it is advised that you
encase the motorized ball valve in a protective
housing.
4) Can this motorized ball valve be powered
continuously? Answer: Due to the power limiting
features of these valves, they can be hooked up to
power non-stop without risk of overheating.
Manual No. 7791
Answer: Yes.
