Summary of Contents for YORTOT AC198

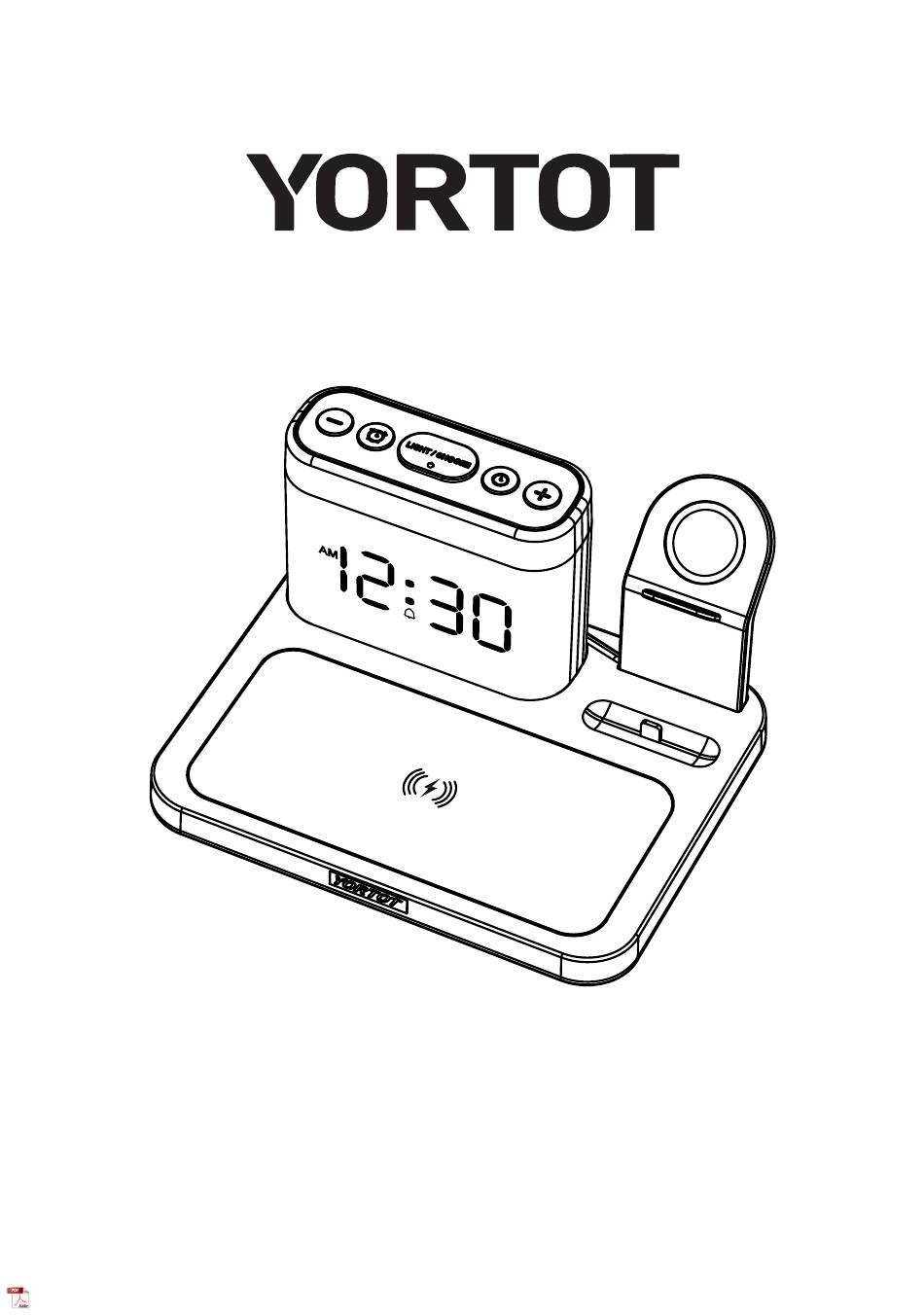

- Page 1 Clock AC198-Black User Manual 12 Months Warranty If you have any questions, please feel free to contact us by email at: customer@kerweilai.com...
- Page 2 Friendly Tips 1. If the display is " blank " or turn on night light " don't work " after plugging in, please slide the " Display Dimmer " or " " Nightlight Dimmer " switch on the back of the clock to brighten the screen/night light.
-
Page 3: Package Include
• 3 Levels Volume Adjustment • 12/24H Mode • Battery Backup (Phone and Headphone Charging Not Supported) • YORTOT Indicator Light Package Include • 1 * 5 in 1 Wireless Charging Station with Alarm Clock • 1 * Power Cord With Adapter •... -
Page 4: Front View
Front View Alarm Set LIGHT/ SNOOZE Down Time Set Night Light 12/24H Alarm iwatch Charger Bracket Airpods Charging Port Wireless Charging Pad for Phone YORTOT Indicator Light... -
Page 5: Back View
Back View Display Dimmer Nightlight Dimmer USB-C Port Iwatch Cable Groove USB Port USB-C Power Port IWatch Cable Storage Box... -
Page 6: Bottom View
Bottom View Heat Dissipation Hole Battery Compartment Batteries not included) -
Page 7: Getting Started
Supported only on battery power × Phone charging Night Light Alarm Clock × Airpods charging Iwatch charging Getting Started Plug the adaptor into a standard household outlet and install 3*AAA batteries, you will see 12:00 on the display and the clock is ready to be set. - Page 8 Time Setting & 12/24H Switch Press " " HOUR MINUTE 12/24H Press " " 1. First, press the " " button to enter HOUR setting. The HOUR digits will flash on the display. Press " + " or " - " button to advance to the correct hour.
- Page 9 Blink 3. Again, press the " " button, press " + " or " - " button to switch and enter 12H or 24H hour choice of display. Blink 4. Finally, press the " " button to confirm and exit the time setting mode.
-
Page 10: Alarm & Volume Setting
Notice: In 12 hour mode, " AM " will appear in the morning and " PM " will appear in the afternoon. Alarm & Volume Setting ALARM ALARM Press " " Press " " MINUTE HOUR 1. First, press the " "... - Page 11 2. Second, press the " " button to enter ALARM MINUTE setting. The MINUTE digits will flash on the display. Press " + " or " - " button to advance to the desired minute. Blink 3. Again, press the " "...
-
Page 12: Alarm On/Off
Blink Alarm On/Off Press and hold 3S the " " button to turn on or off alarm. If the " " icon displays, it means the alarm is on. If the " " icon doesn't display, it means the alarm is off. Alarm Pause &... - Page 13 Phone Wireless charging Please place your phone horizontally on the phone wireless charging pad, Once the charging connection is successful, the front side " YORTOT " indicator light turns on 5S blue light and then turns off. Notice: 1. The " YORTOT " indicator light on the front will alert you by flashing if there is a metal foreign object on the wireless charging pad.
- Page 14 The installation steps are as follows: 1. Remove the cover of the cable 2. Fix your iwatch charging disk storage box on the back. on the iwatch charging stand. 3. Plug the other end of the 4. Bury the iwatch charging iwatch charger into the USB/ cable in the iwatch cable groove USB-C port.
- Page 15 5. Fold and Bind the excess 6. Close the cover of the cable iwatch charging cable into the storage box and connect the cable storage box. machine tohome power supply. Notice: 1. IWatch wireless charging cable not included 2. Iwatch charging only works with apple watch.
- Page 16 Wireless Charging Function 1. Compatible phones : iPhone 14 / 13 / 13 Pro / 13Pro Max/ 13 mini / 12 / 12Pro / 12Pro Max / 12 mini / 11 / 11 Pro / 11 Pro Max / X / XR / XS / XS Max / 8 / 8 Plus; SAMSUNG S22 Ultra / S22+ / S22 / S21 Ultra 5G / S21+ / S21 / S21 FE/ S20 / S10 / S9 / S9+ / S8 / S8+ / S7 / S7 Edge/ S6 Edge Plus / Note 10 / 10+ / Note 9 / Note 8 /...
-
Page 17: Fcc Compliance Statement
If the night light doesn't work after turning it on, try scrolling " NIghtlight Dimmer " to turn up the brightness of the night light. YORTOT provides you with 12-MONTH WARRANTY and 24- HOUR ONLINE SERVICE, if you have any questions about the product, please contact us: customer@kerweilai.com... - Page 18 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation.
