U'King ZQ02100US User Instructions

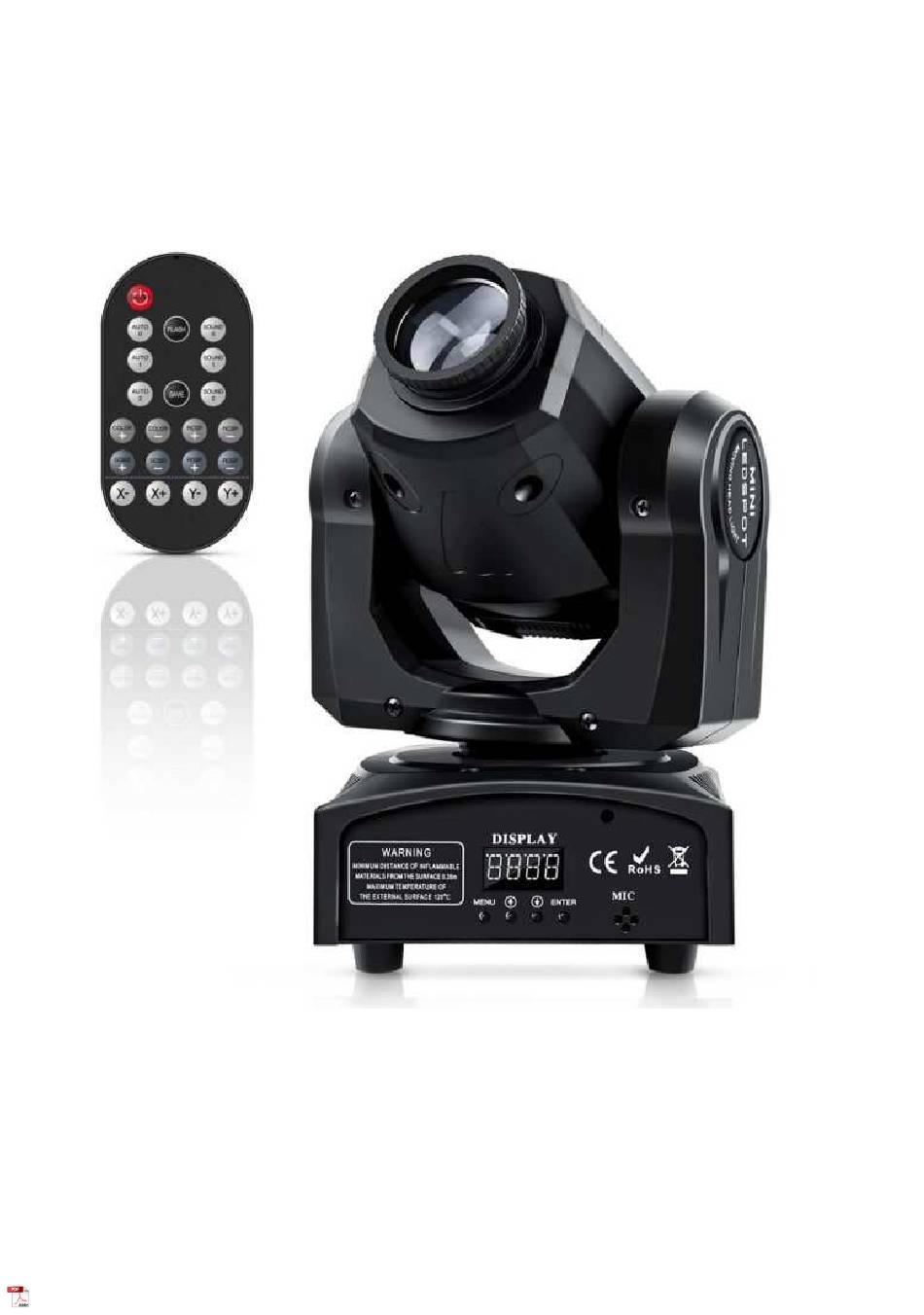

Mini moving head light
Hide thumbs

Advertisement

Table of Contents

Mini Moving Head Light
USER INSTUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZQ02100US and is the answer not in the manual?

Questions and answers

Related Manuals for U'King ZQ02100US

Summary of Contents for U'King ZQ02100US

  • Page 1 Mini Moving Head Light USER INSTUCTIONS...

  • Page 2: Technical Parameters

    Mini Moving Head Light Note 1. Thank you for purchasing our moving head light, please read the instructions carefully before use. Installation according to manual requirements. 2. All information, specifications, diagrams, images and descriptions in the instruction manual are subject to change without notice. 3.
  • Page 3 SAFETY AND OPERATING INSTRUCTIONS After the power is plugged in and the switch is turned on, "rSt" is displayed. The moving head lights are being reset, please do not operate. (1) Plugged into a grounded power outlet for indoor use only. (2) Don't expose the device to rain or moisture, avoid the risk of fire or electric shock.
  • Page 4 holder from its original position with a screwdriver, take out the burnt fuse, replace the fuse with the same characteristics, then re-rotate the screw, and connect the device to the power supply superior. (10) WARNING: Stop using it if the fuse is still blowing after being replaced. Please contact customer support for further instructions, continued use may cause serious damage.

  • Page 5: Packing List

    PACKING LIST Unpacking Instruction: when you receive the item, please unpack and inspect the items for completeness and integrity. If there is damage, please notify the carrier immediately and retain all packaging materials for safe transportation of the item. • Moving head * 1 •...

  • Page 6: Automatic Mode

    STARTUP STEPS FOR VARIOUS MODES Automatic mode: 1. Press ”MENU” to find “Auto” and press the button "ENTER" 2. Press "UP"/"DOWN" button to select "au00" , "au01" or "au02" 3. Press "ENTER" button to save Press the “ENTER” button twice to automatically adjust the playback speed, and the “UP” or “DOWN” button to activate the automatic playback speed (the higher values, the faster it is, and the lower values, the slower it is) Sound Activated mode:...

  • Page 7: Remote Control

    REMOTE CONTROL  ON/OFF: light on /block out  FLASH: flash lighting effect  SAVE: save the value  AUTO 0/AUTO 1/AUTO 2: automatic lighting effect  RCSP+: the speed increase when color changing  RCSP-: the speed decrease when color changing ...
  • Page 8  COLOR-: select color in reverse direction  GOBO+: select color in forward direction  GOBO-: select color in reverse direction MENU Addr A001-A512 512 address setting Aut0 Effect 0 (recommend) Auto Aut1 Effect 1 Aut2 Effect 2 Son0 Effect 0 Soun Son1 Effect 1...
  • Page 9 9 CHANNEL CHANNEL FUNCTION VALUE Pan Running 0-255 Tilt Running 0-255 Color Color Selecting 10-139 Color Changing Automatically 144-255 (speed from slow to fast) Gobo Half Gobo Effect 8-63 Gobo Shaking 72-127 (speed from slow to fast) Gobo Changing Automatically 128-255 (speed from slow to fast) Strobe 0-255 (speed from slow to fast)
  • Page 10 11 CHANNEL CHANNEL FUNCTION VALUE Pan Running 0-255 Pan Fine Tuning 0-255 Tilt Running 0-255 Tilt Fine Tuning 0-255 Color Color Selecting 10-139 Color Changing Automatically 144-255 (speed from slow to fast) Gobo Half Gobo Effect 8-63 Gobo Shaking 72-127 (speed from slow to fast) Gobo Changing Automatically 128-255 (speed from slow to fast) Strobe...
