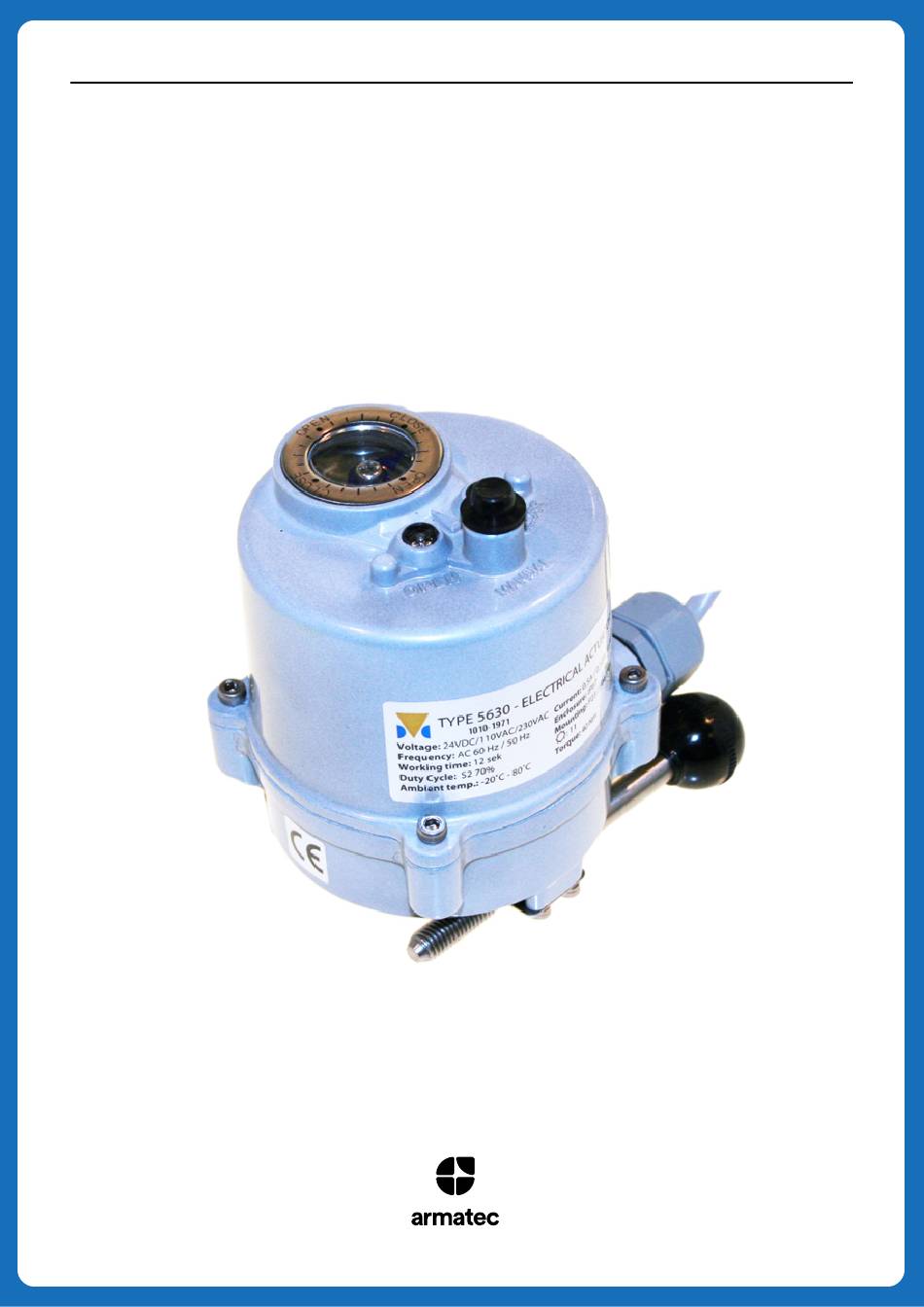

- Page 1 Type DVC5630-004 Electrical actuator Installation, Operation og Maintenance Manual...
-
Page 2: Product Identification
INTRODUCTION Purpose This Installation and operating manual explains how to install, operate and maintain 5630-004 electric actuators. Safety notices Safety notices in this manual outline precautions the user must take to reduce the risk of personal injury and damage to the equipment. User must read these instructions before installation, operating, or maintenance. -
Page 3: General Information And Features
3. GENERAL INFORMATION AND FEATURES 3.1 General information TYPE 5630-004 electric actuator is designed to operate small size quarter turn valves like butterfly, ball valves, etc. 3.1.1 Performance standard MAX OUTPUT OPERATING DUTY CYCLE MOUNTING POWER RATED CURRENT (A) 50/60 Hz... -
Page 4: Installation
3.1.5 Manual hand lever 3.1.6 Lubrication TYPE 5630-004 is a totally enclosed unit with permanent lubricated gear train (Moly EP Grease). Once installed, further lubrication should not be re- quired. However, periodic preventative maintenance will extend the operating life of the actuator. - Page 5 4.2 Actuator mounting NOTE: Prior to mounting, the actuator must be checked for any damag. Damaged parts must be replaced by original spare parts Mounting is most easily done with the valve shaft pointing vertically upward. But mounting is also possible in any other position. The actuator may be mounted in any position.
-
Page 6: Maintenance
5. TYPE 5630-004 WIRING DIAGRAM Symbol Description Ration Close limit 250VAC 5A switch Open limit 250VAC 5A switch ACLS Aux. close 250VAC 5A limit switch AOLS Aux. open 250VAC 5A limit switch DANGER: HAZARDOUS VOLTAGE No electrical power should be connected until all wiring and limit switch adjustments are completed. -
Page 7: Troubleshooting
7. TROUBLE SHOOTING The following instructions are offered for the most common difficulties encountered during installation and start-up. SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION Open in control circuit Motor will not run Refer to appropriate wiring diagram and check for continuity Insulation resistance breakdown in motor No power available to actuator Tripped circuit breaker... - Page 8 Målet er at levere fleksible løsninger til mange specifikke behov, med fokus på holdbarhed, produktivitet og tilgængelighed med lave livscyklusomkostninger. Armatec A/S Øst: Mjølnersvej 4-8 DK-2600 Glostrup Tlf: +45 46 96 00 00 Mail: armatec@armatec.dk...
